RECIRCULATION Damper Motor, 2-Zone, 4-Zone: Removal

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

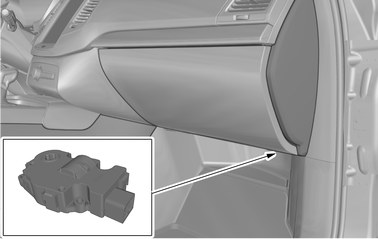

See information about part overview. Refer to: CLIMATE UNIT DAMPER MOTORS

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

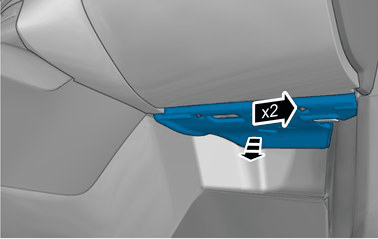

Remove the screws.

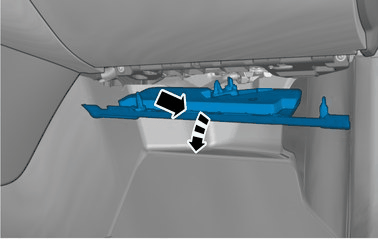

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

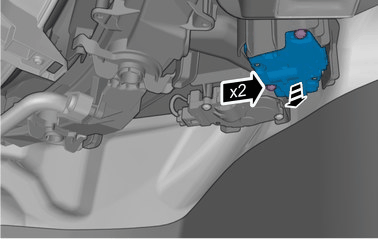

Remove the screws.

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

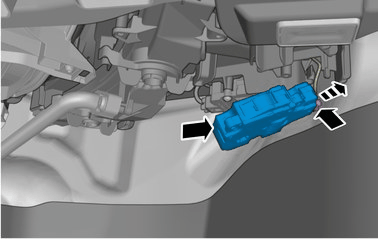

Disconnect the connector.

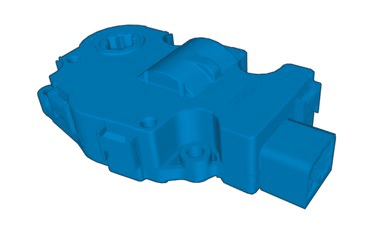

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION
