Voice Recognition Database Upgrades (TJ 32185.1.2)

WARNING: This page is about the XC90 T5 Inscription, AWD, which is a different variant/trim than selected.

Publication date: 2017-07-18
Reference number: TJ 32185.1.2
Supersedes refnos: TJ 32185.1.1

VOICE RECOGNITION DATABASE UPGRADES

TECHNICAL SERVICE BULLETIN

Reference Number(s): TJ32185.1.2, Date of Issue: July 18, 2017

VOLVO:	2016 and beyond XC90; 2017 and beyond S90; V90; V90CC; 2018 and beyond S90; XC60
SECTION:	Media, navigation and communication
GROUP:	3900

ATTACHMENT

File Name	File Size
TJ 32185_1.jpg	0.0772 MB
TJ 32185_2.jpg	0.0548 MB

VEHICLE TYPE

Type	Model Year	Chassis range	Struc Week Range
234	2017-2017	-	201617-201709
235	2017-9999	-	201617-999952
236	2017-9999	-	201617-999952
238	2018-9999	-	201710-999952
246	2018-9999	-	201717-999952
256	2016-9999	-	201505-999952

CSC CUSTOMER SYMPTOM CODES

Code	Description
II	Cellular phone/Voice control does not work
IJ	Navigation/Voice guidance does not work

VST OPERATION NUMBER

VST Operation Number	Description
39742-2	Voice Control USB-Upgrade IHU

DTC DIAGNOSTIC TROUBLE CODES

Rows beginning with * are modified

NOTE: If using a printed copy of this Technical Journal, first check for the latest online version.

TEXT

DESCRIPTION

* Vehicle types added: 235, 236, 238, 246

* Note under service about loading procedure

* Labor operation added

IHU = Infotainment Head Unit

VIDA = Volvo Information and Diagnostics for Aftersales

SPA = Scalable Product Architecture

PDS = Pre-Delivery Service

SPJ = Service Product Journal

As of 11/28/2016 a voice recognition speech database file will no longer be included with the latest map upgrade for SPA vehicles (SPJ 29181) and must be downloaded separately from the maps .

When performing PDS or diagnosing any voice control issue, always ensure that the latest speech database file is installed in the IHU. See instructions under Service .

SERVICE

The latest voice control database can be downloaded and installed by following the instructions at the link below:

http://volvo.custhelp.com/app/answers/detail/a_id/9765

To read out which database is installed in the vehicle, connect with VIDA and read out the IHU parameter "Speech DB Part number - IHU "

The speech database file will be upgraded twice per year in May and November. The link above will always lead to the latest version of the file.

Once downloaded, the speech database can be copied onto your map upgrade USB flash drive to allow both to be upgraded using the same flash drive.

* However, since maps are updated more frequently it may be easier to maintain separate USB sticks.

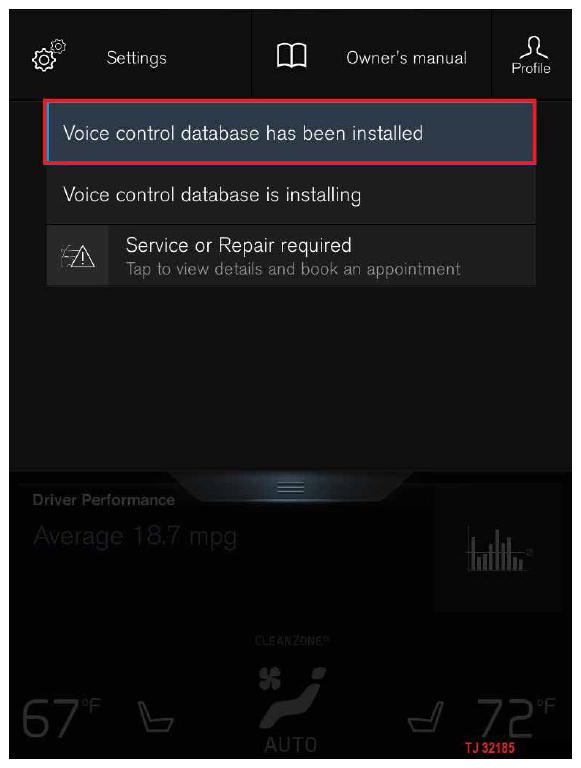

NOTE: *Once loading from the USB to the car is complete, the message "Voice Control Database has been installed " will be shown in the Settings drop-down (see attached photo TJ 32185_1). Always confirm this before proceeding.

At this point, DO NOT remove the USB . Shut the car off and lock it for approximately 3 minutes before re-starting. This will allow the IHU to boot up with the new database. Removing the USB beforehand can cause the voice control system to become inoperative .

Once the car is re-started, there should be a message pop-up indicating that the voice control database is already installed (See attached photo TJ 32185_2). It is safe to remove the USB at this point.

VEHICLE REPORT

Not required.
