Transmission Connectors

Transmission connectors

Bracket and connectors




There are five connectors on a bracket on the transmission.
The transmission sensors are connected to the control system via these connectors.

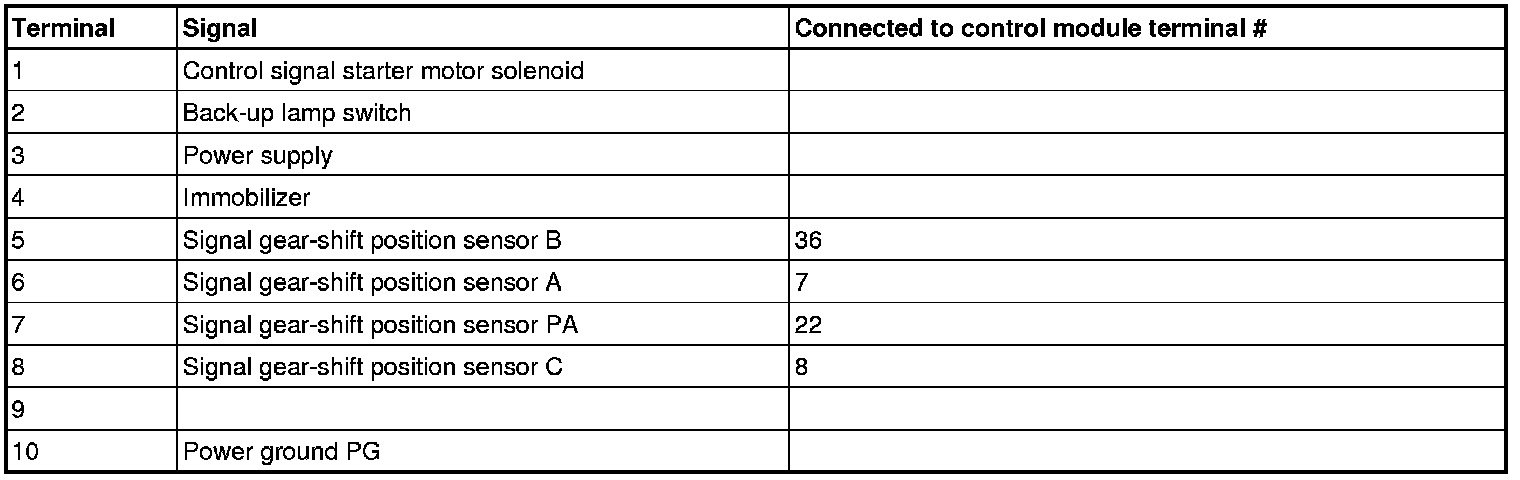

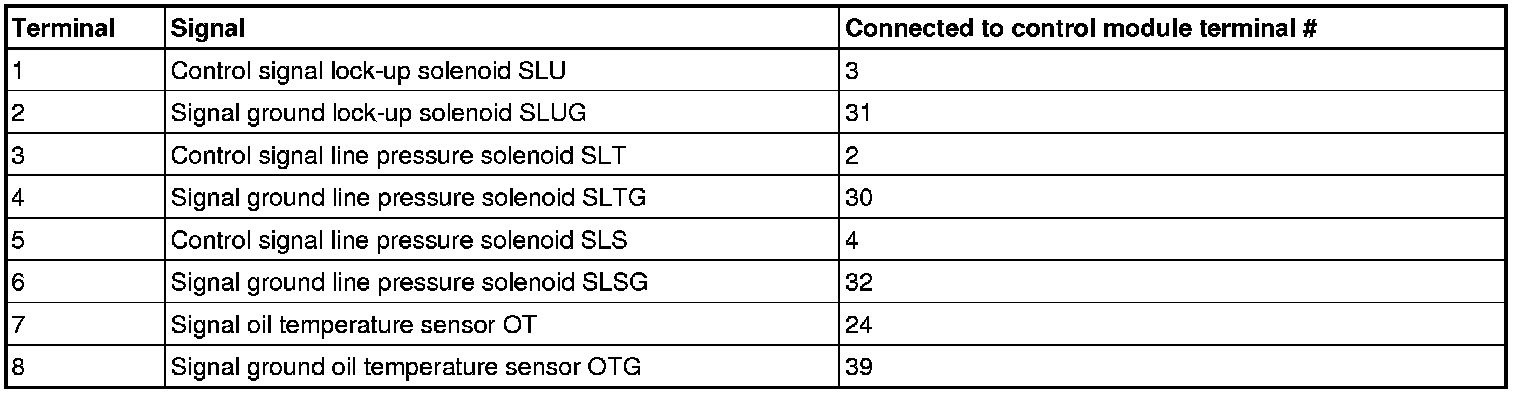

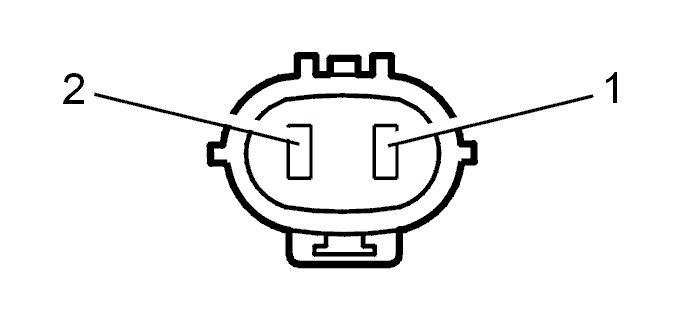

The illustrations below show the transmission connectors with the numbering for each terminal pin.
The cable harness connectors are numbered correspondingly.

1. Connector, black 2-pin










2. Connector, white 2-pin










3. Connector, dark gray 6-pin










4. Connector, light gray 8-pin










5. Connector, light gray 10-pin
