Components [11/2018 - ]

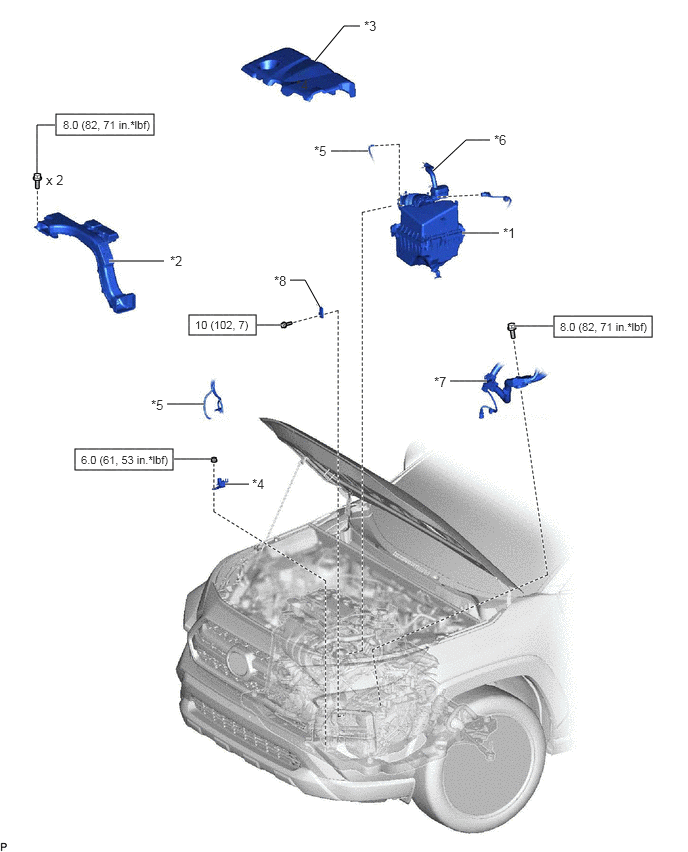

Fig 1: Vacuum Switching Valve (For Engine Mounting) Replacement Components With Torque Specifications
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | VACUUM SWITCHING VALVE (for Active Control Engine Mount System) |
| *5 | VACUUM HOSE | *6 | NO. 2 PCV HOSE |
| *7 | ENGINE WIRE | *8 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
