ABS (w/VSC), TRAC and VSC (H/B): Notes

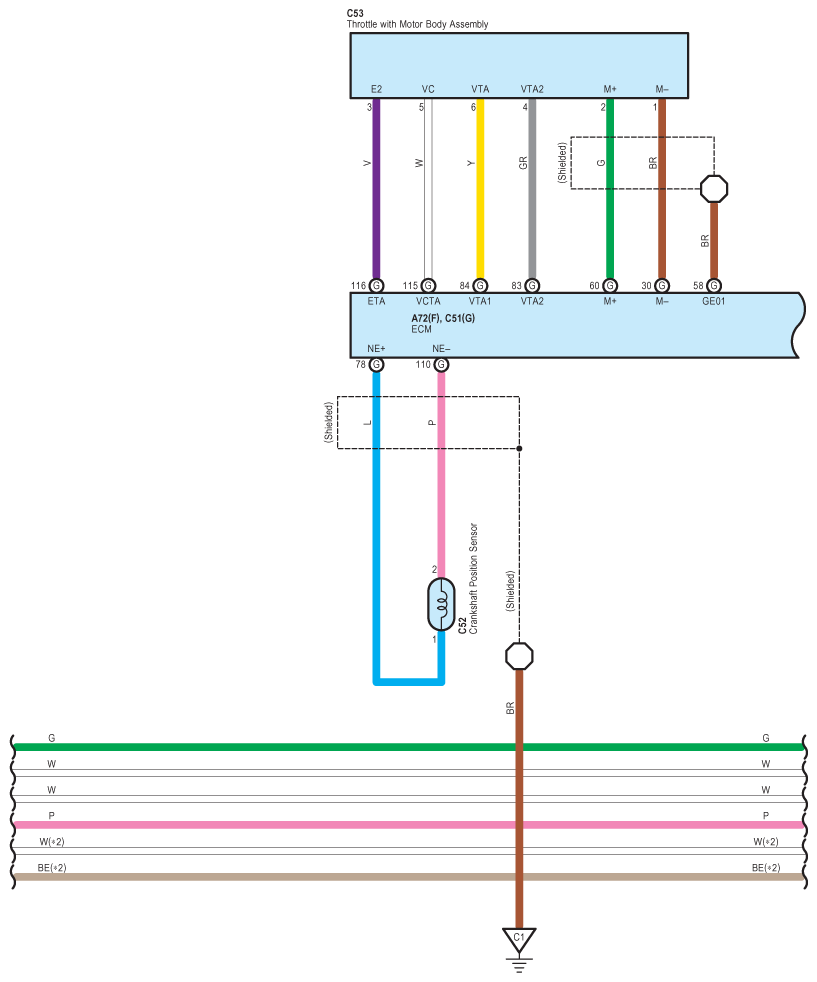

Fig 1: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

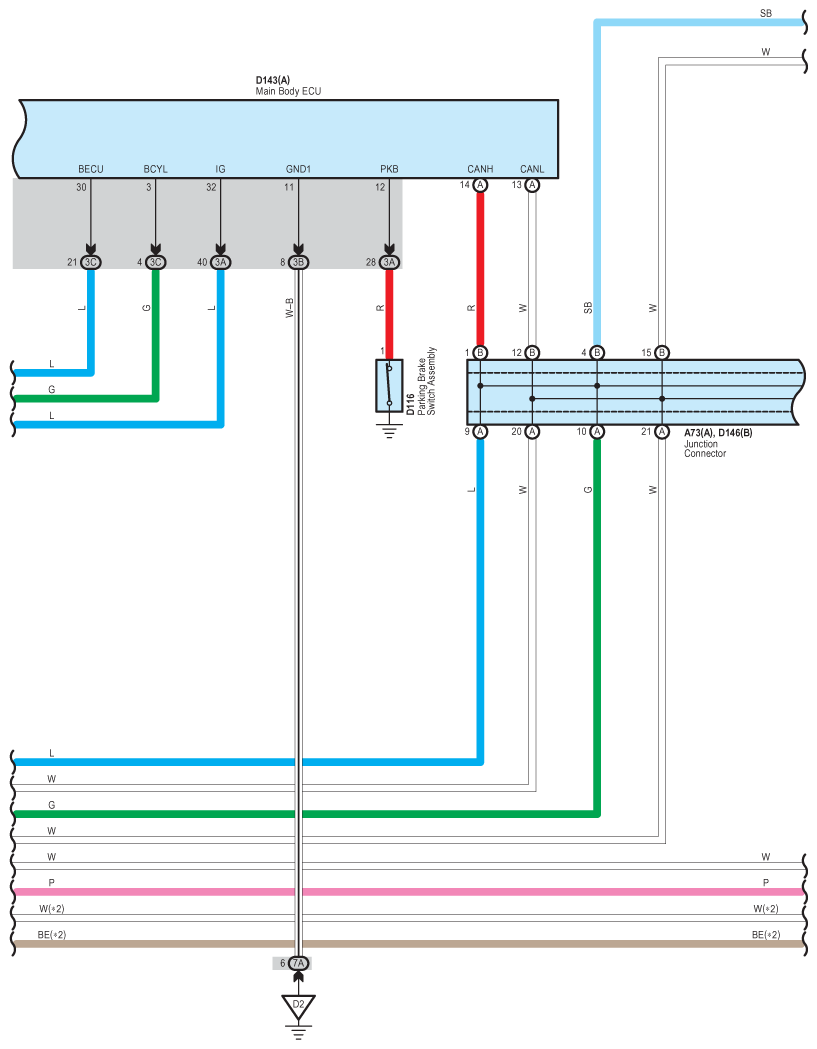

Fig 2: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

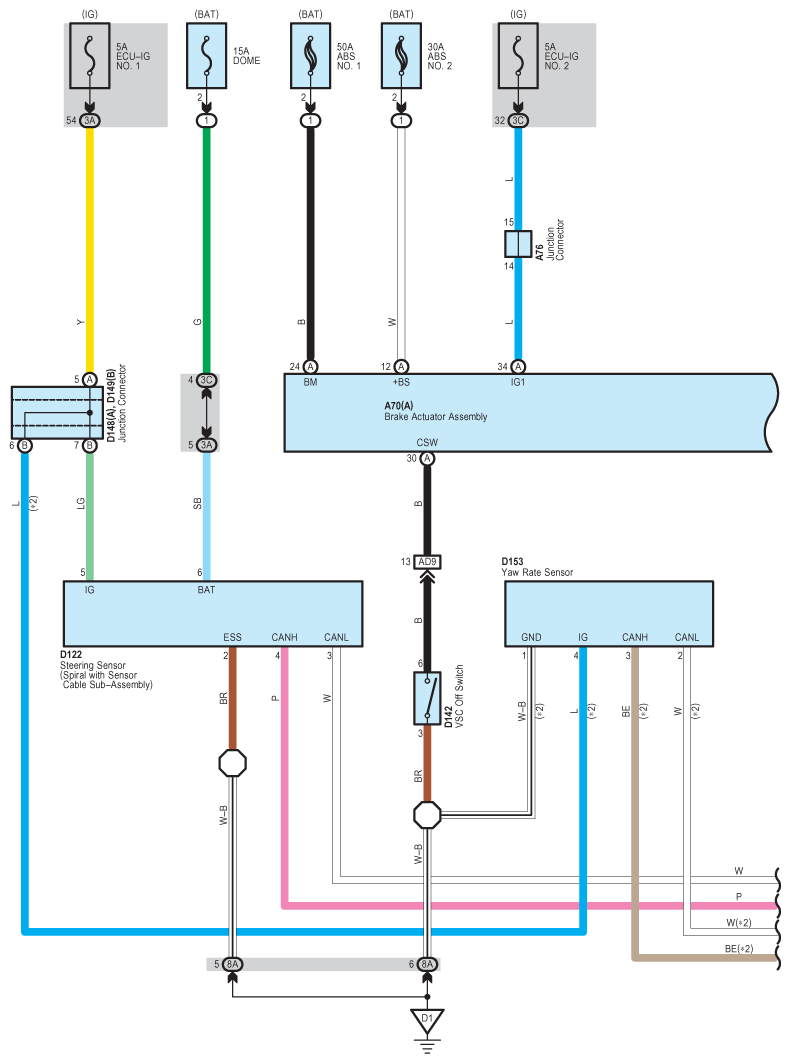

Fig 3: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

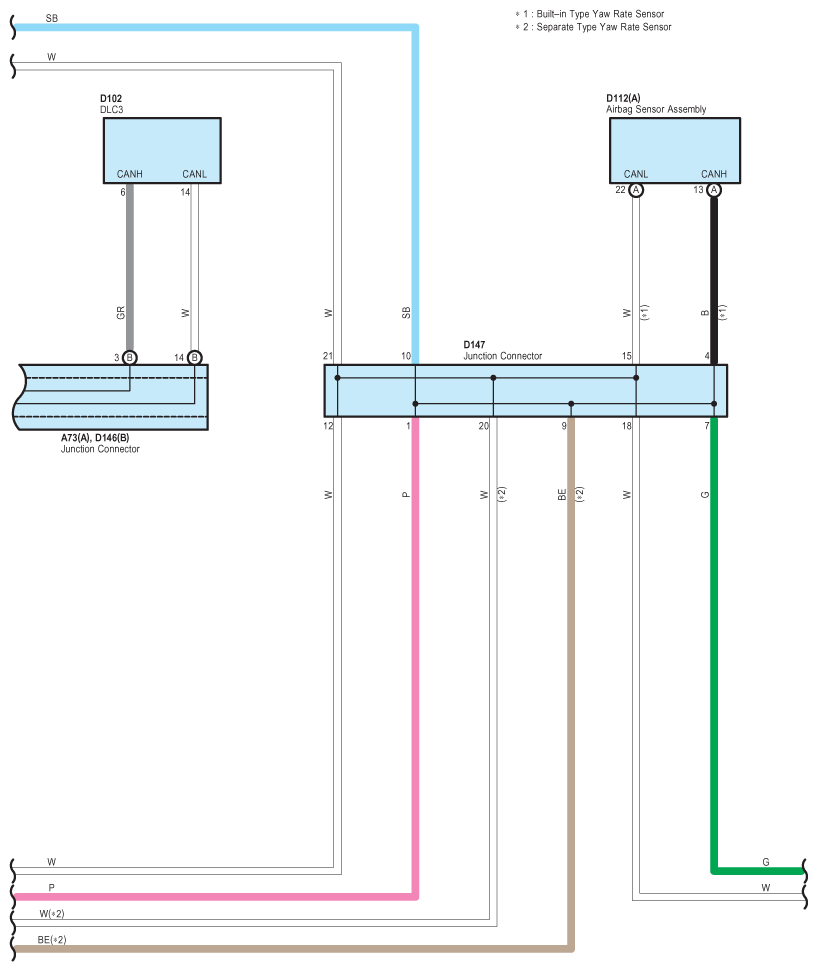

Fig 4: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

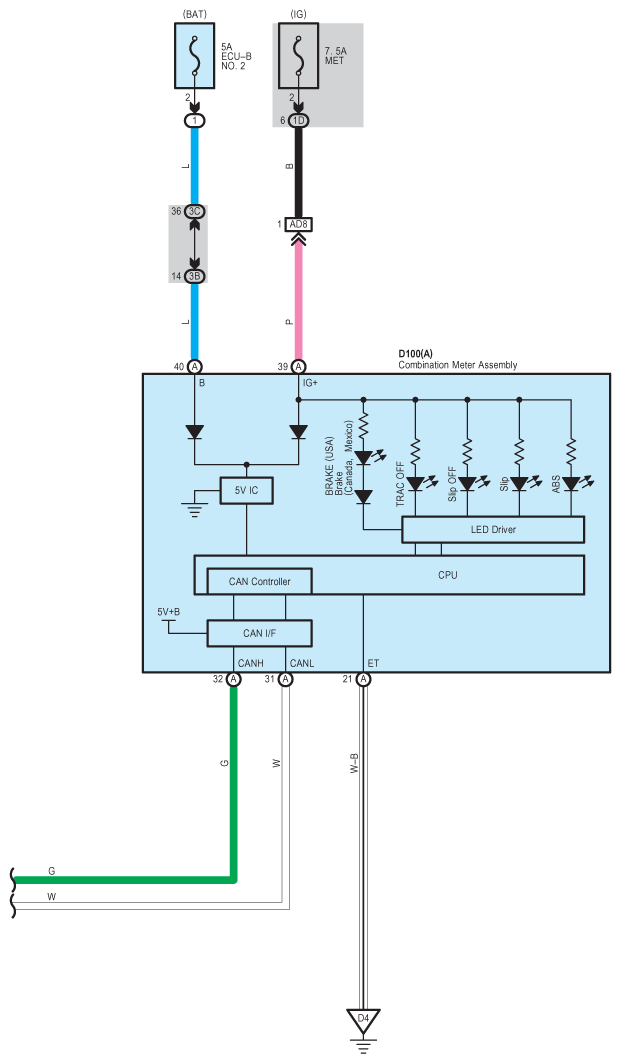

Fig 5: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

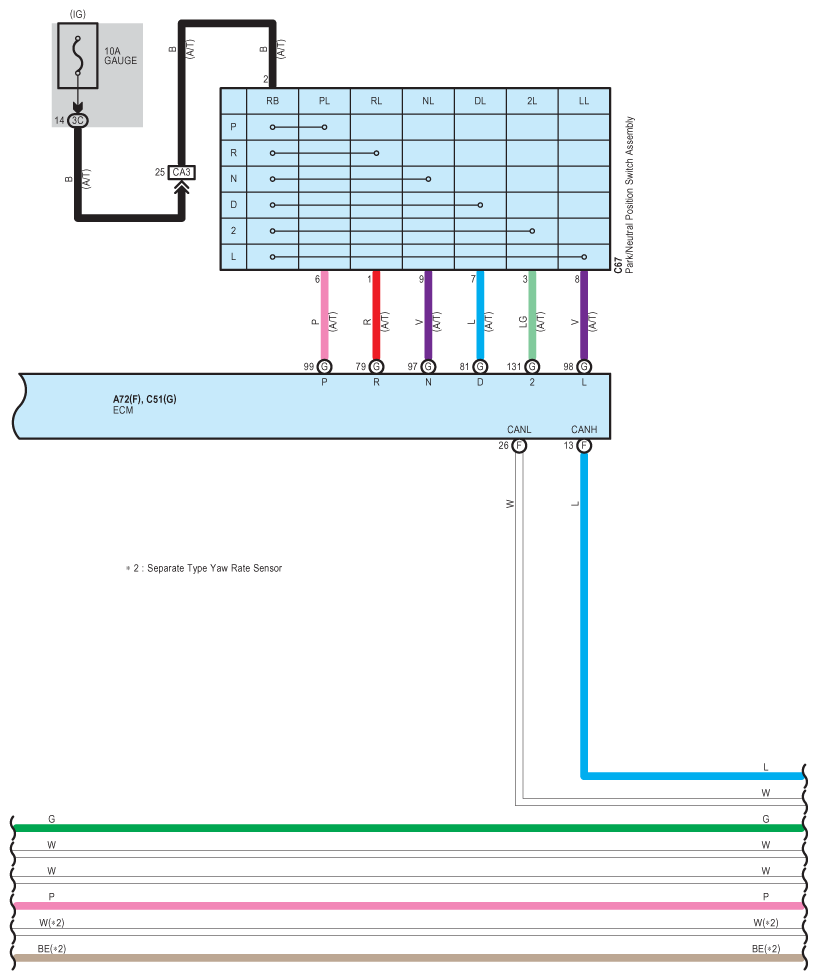

Fig 6: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (6 Of 8)

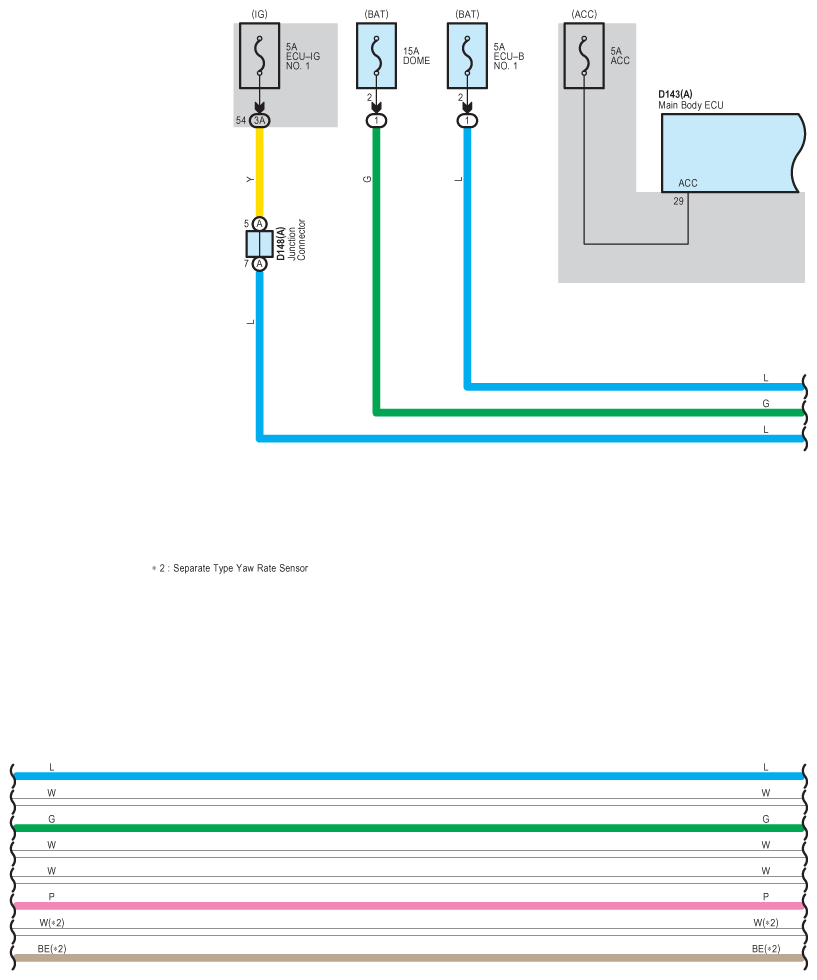

Fig 7: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (7 Of 8)

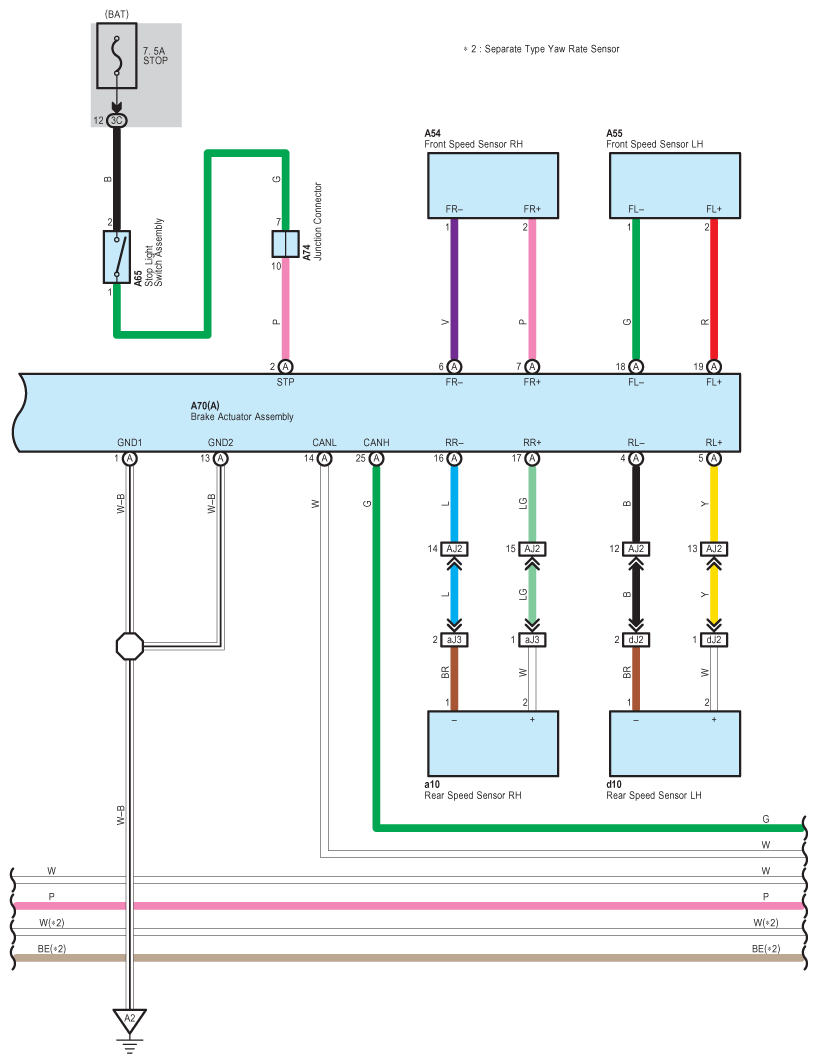

Fig 8: ABS (W/VSC), TRAC And VSC (H/B) - Circuit Diagram (8 Of 8)
