Automatic Glare-Resistant EC Mirror and Parking Assist (Rear View Monitor): Notes

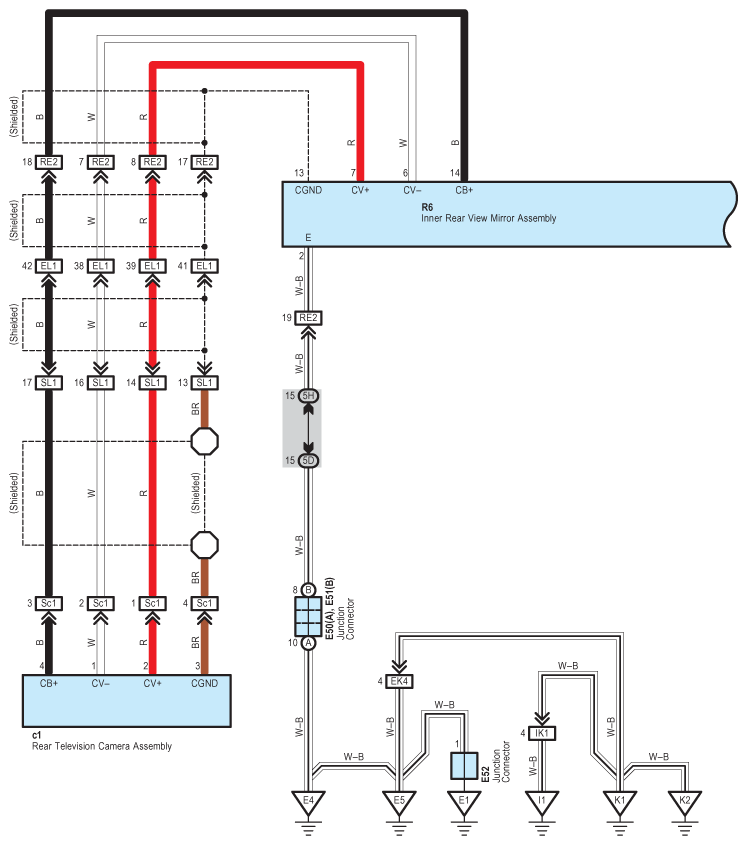

Fig 1: Automatic Glare-Resistant EC Mirror And Parking Assist (Rear View Monitor) System Wiring Diagram (1 Of 2)
G08843642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Automatic Glare-Resistant EC Mirror And Parking Assist (Rear View Monitor) System Wiring Diagram (2 Of 2)
G08843643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
