Front Wiper and Washer (Except TMC Made): Notes

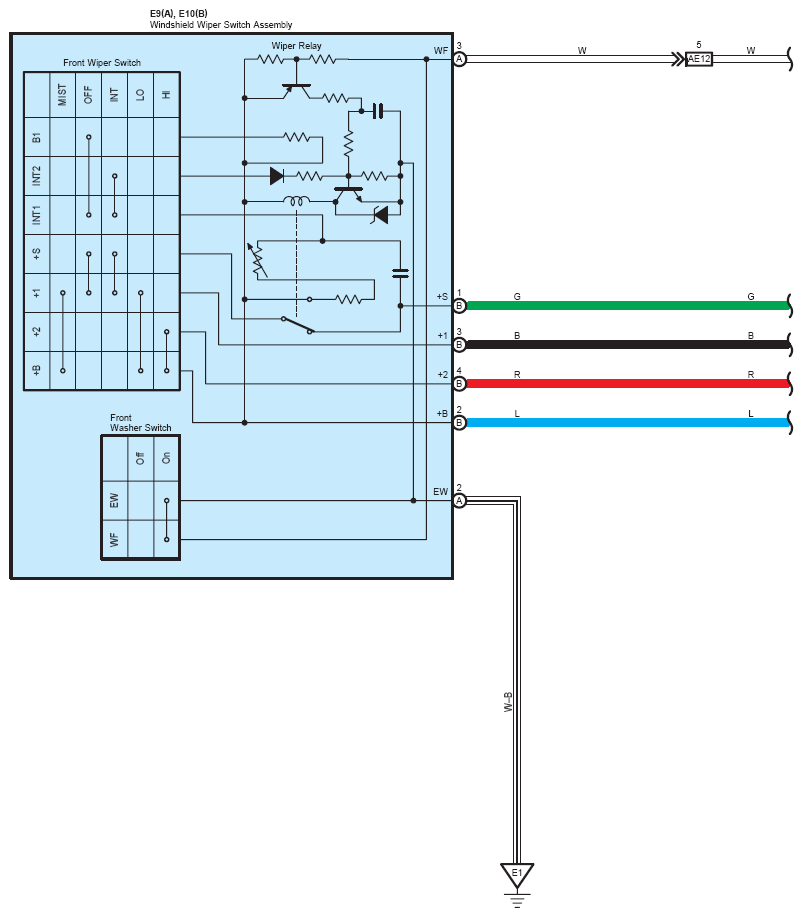

Fig 1: Front Wiper And Washer (Except TMC Made) System Wiring Diagram (1 Of 2)
G07115160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

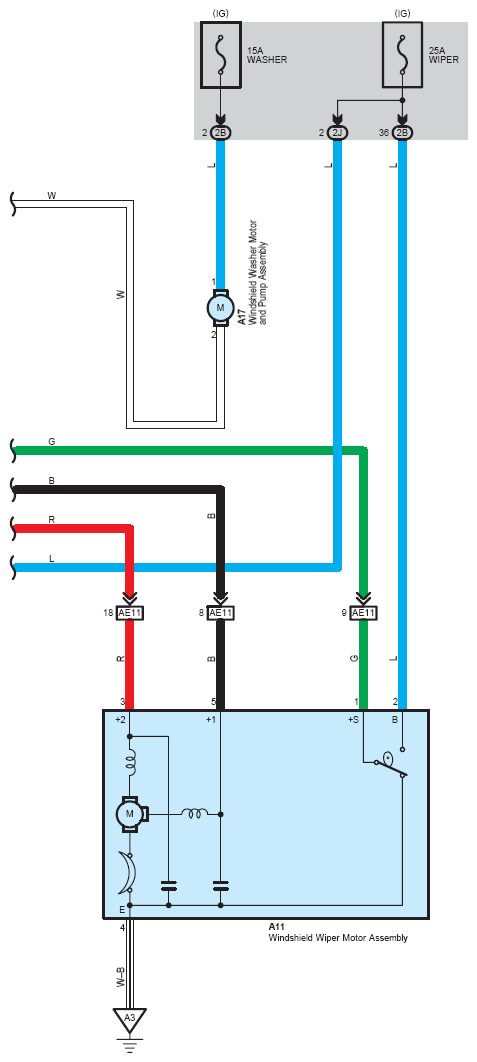

Fig 2: Front Wiper And Washer (Except TMC Made) System Wiring Diagram (2 Of 2)
G07115161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
