Automatic Air Conditioning and Clock (w/ Automatic Air Conditioning): Notes

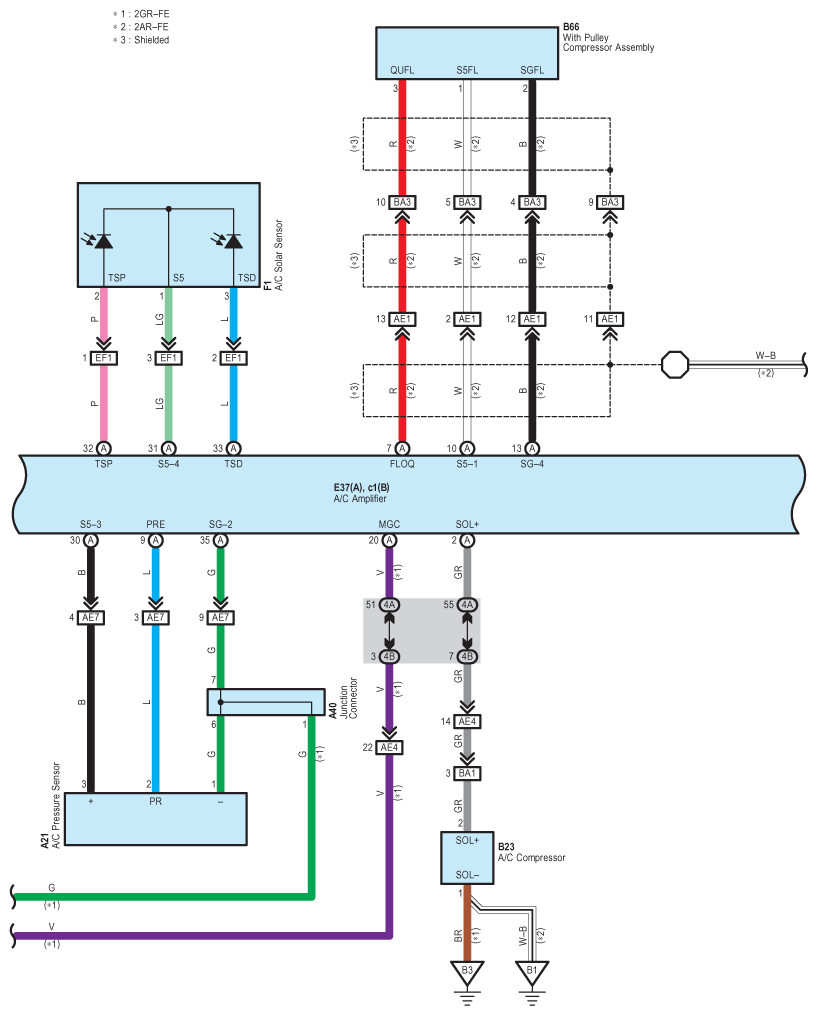

Fig 1: Automatic Air Conditioning And Clock (W/ Automatic Air Conditioning) - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Automatic Air Conditioning And Clock (W/ Automatic Air Conditioning) - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Automatic Air Conditioning And Clock (W/ Automatic Air Conditioning) - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Automatic Air Conditioning And Clock (W/ Automatic Air Conditioning) - Circuit Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Automatic Air Conditioning And Clock (W/ Automatic Air Conditioning) - Circuit Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
