Parts Location

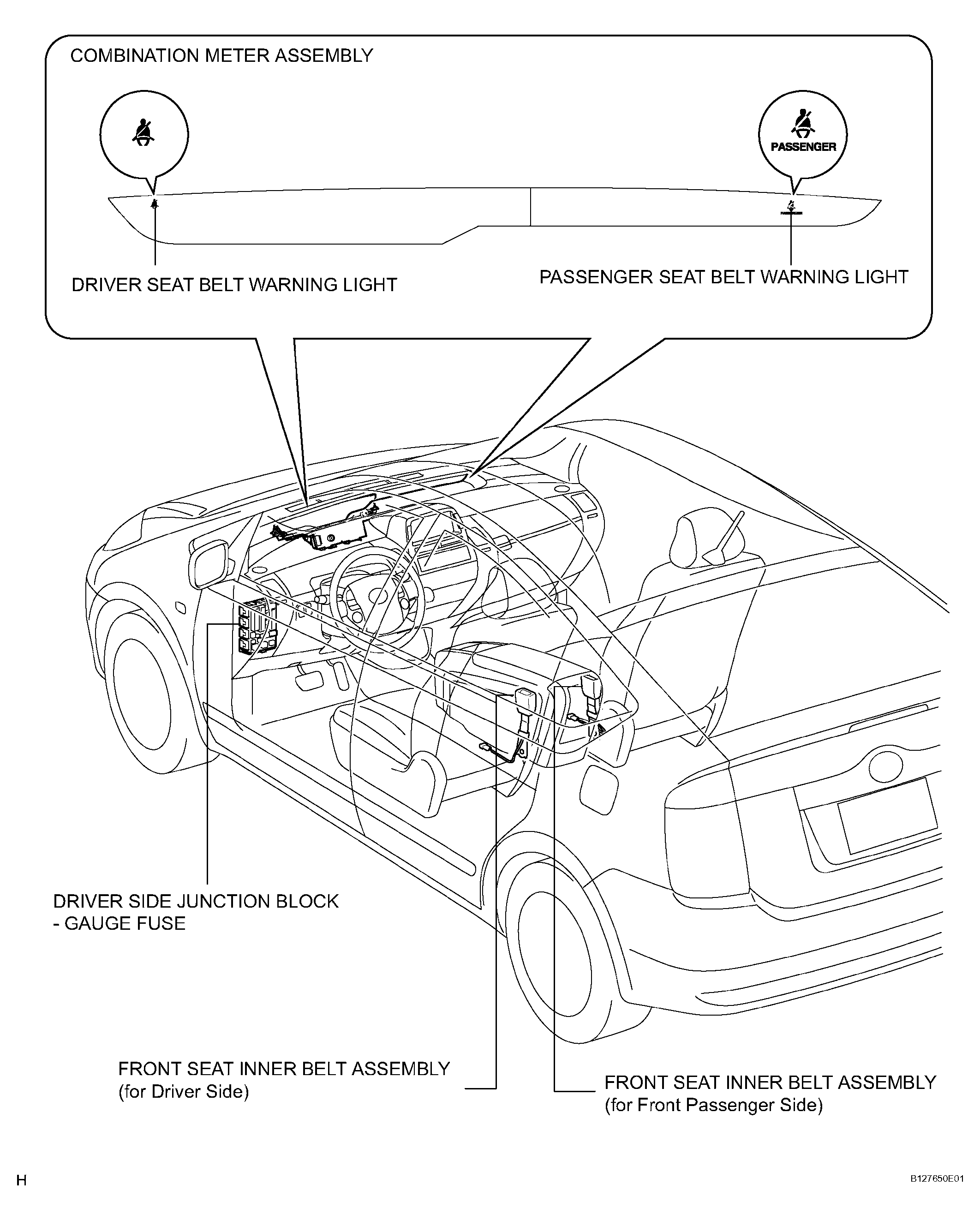

Fig 1: Identifying Seat Belt Warning System Components (1 Of 2)
G04475592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

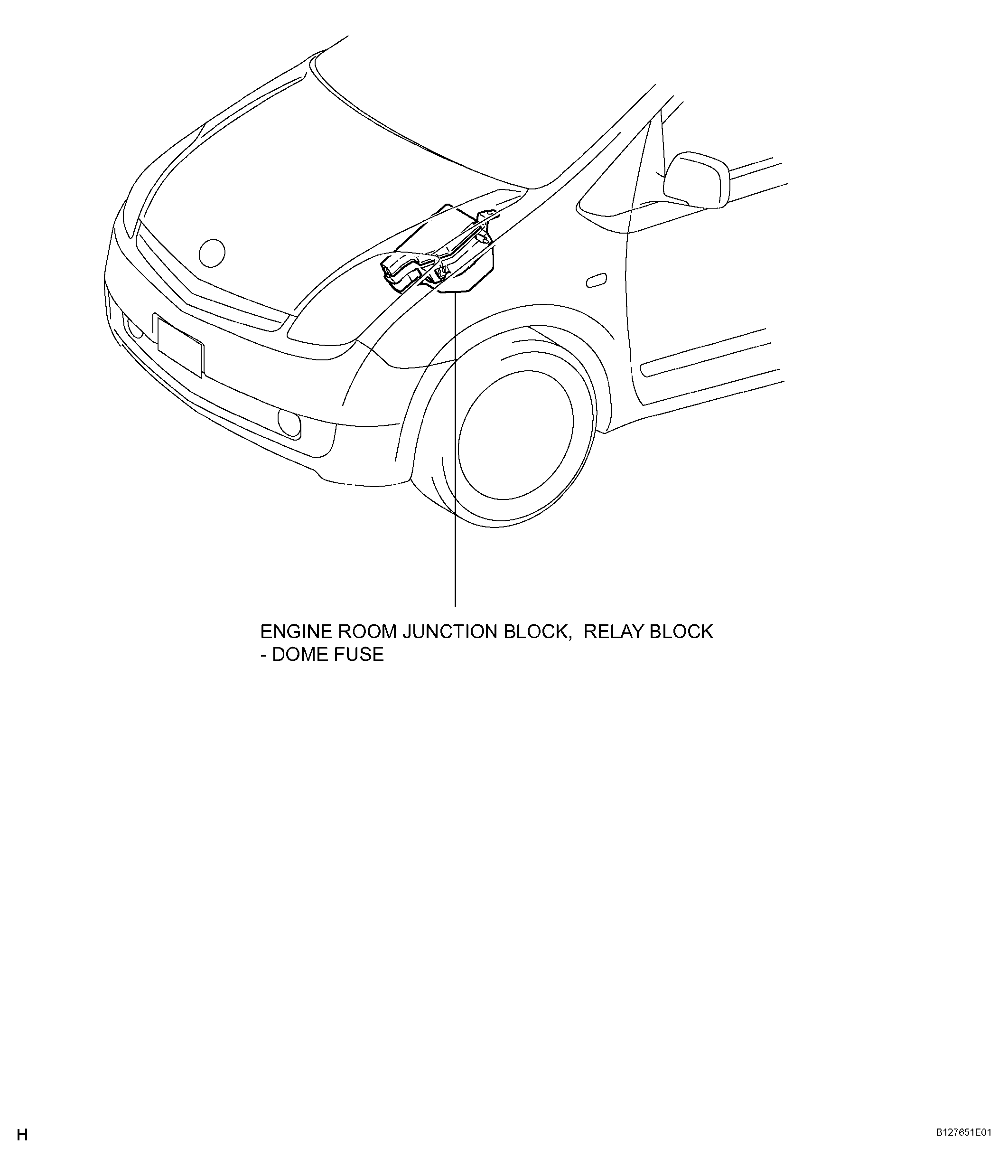

Fig 2: Identifying Seat Belt Warning System Components (2 Of 2)
G04475593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
