Shift Lock System: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT SHIFT LOCK CONTROL UNIT ASSEMBLY

    Using a voltmeter, measure the voltage at each terminal.

    HINT:

    Do not disconnect the shift lock control unit assembly connector.

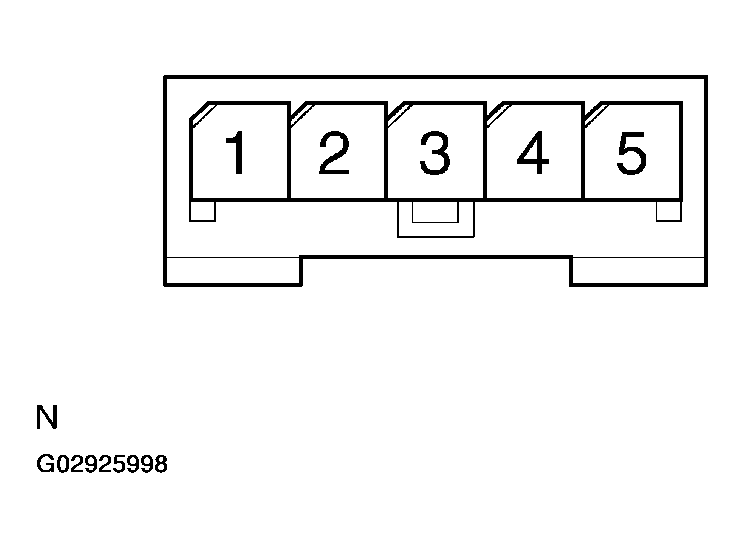

    Fig 1: Identifying Shift Lock Control Unit Assembly Connector Terminal
    G02925998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    SHIFT LOCK CONTROL UNIT TERMINAL VOLTAGE

    Terminal Measuring Condition Voltage (V)
    5 - 1 (IG - E) Ignition switch ON 10 to 14
    3 - 1 (STP - E) Depressing brake pedal 10 to 14
  2. INSPECT KEY INTERLOCK SOLENOID
    1. Disconnect the solenoid connector.
    2. Using an ohmmeter, measure resistance between terminals.

      Standard resistance: 12.5 to 16.5 Ω

      If resistance value is not as specified, replace the solenoid.

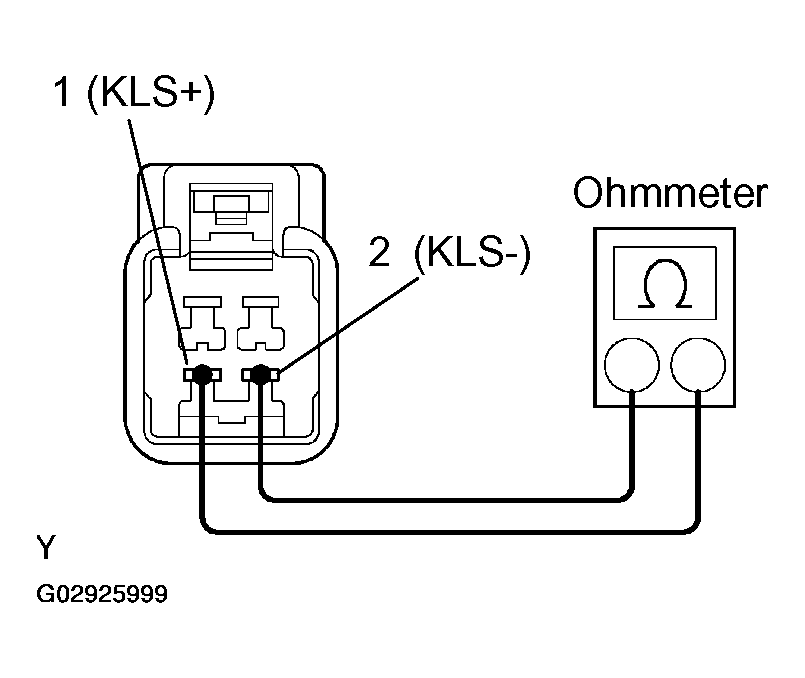

      Fig 2: Measuring Resistance Between Solenoid Connector Terminals
      G02925999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply battery positive voltage between terminals. Check that an operation noise can be heard from the solenoid.

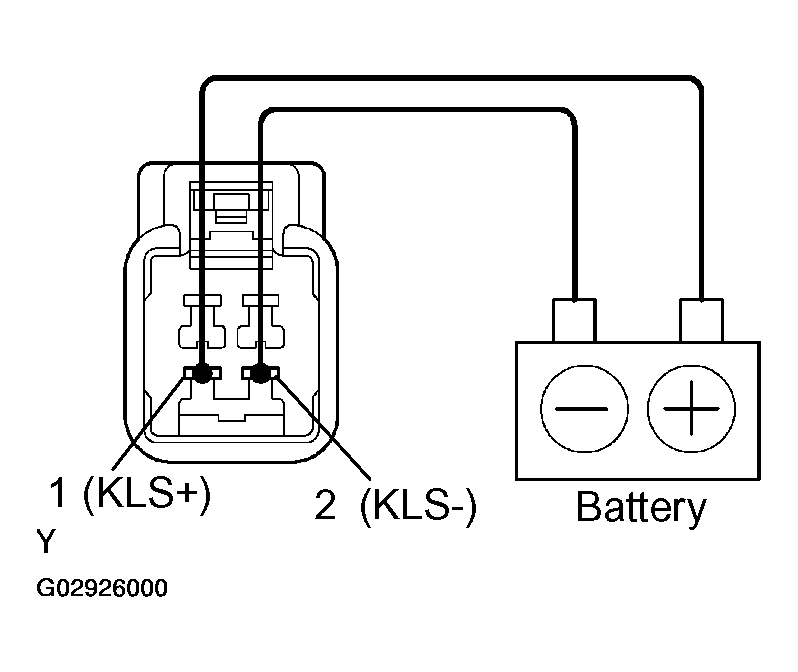

      4. Fig 3: Applying Battery Positive Voltage Between Terminals
      G02926000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the solenoid does not operated, replace the solenoid.
