2UZ-FE (V8): Adjustment

INSPECT TIRE (See INSPECTION )

MEASURE VEHICLE HEIGHT

Vehicle height:

Fig 1: Inspecting Tire

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

VEHICLE HEIGHT - 2WD EXCEPT AIR SUSPENSION

Model	Front A - B	Rear C - D
UZN210L-GKAGKA	113.6 mm (4.47 in.)	71.7 mm (2.82 in.)
UZN210L-GKAZKA	113.5 mm (4.47 in.)	72.3 mm (2.85 in.)

VEHICLE HEIGHT - 2WD AIR SUSPENSION

Model	Front A - B	Rear C - D
UZN210L-GKAZKA	112.7 mm (4.44 in.)	81.4 mm (3.20 in.)

VEHICLE HEIGHT - 4WD EXCEPT AIR SUSPENSION

Model	Front A - B	Rear C - D
UZN215L-GKAGKA	99.9 mm (3.93 in.)	71.6 mm (2.82 in.)
UZN215L-GKAZKA	99.8 mm (3.93 in.)	72.1 mm (2.84 in.)

VEHICLE HEIGHT - 4WD AIR SUSPENSION

Model	Front A - B	Rear C - D
UZN215L-GKAZKA	99.2 mm (3.91 in.)	78.9 mm (3.11 in.)

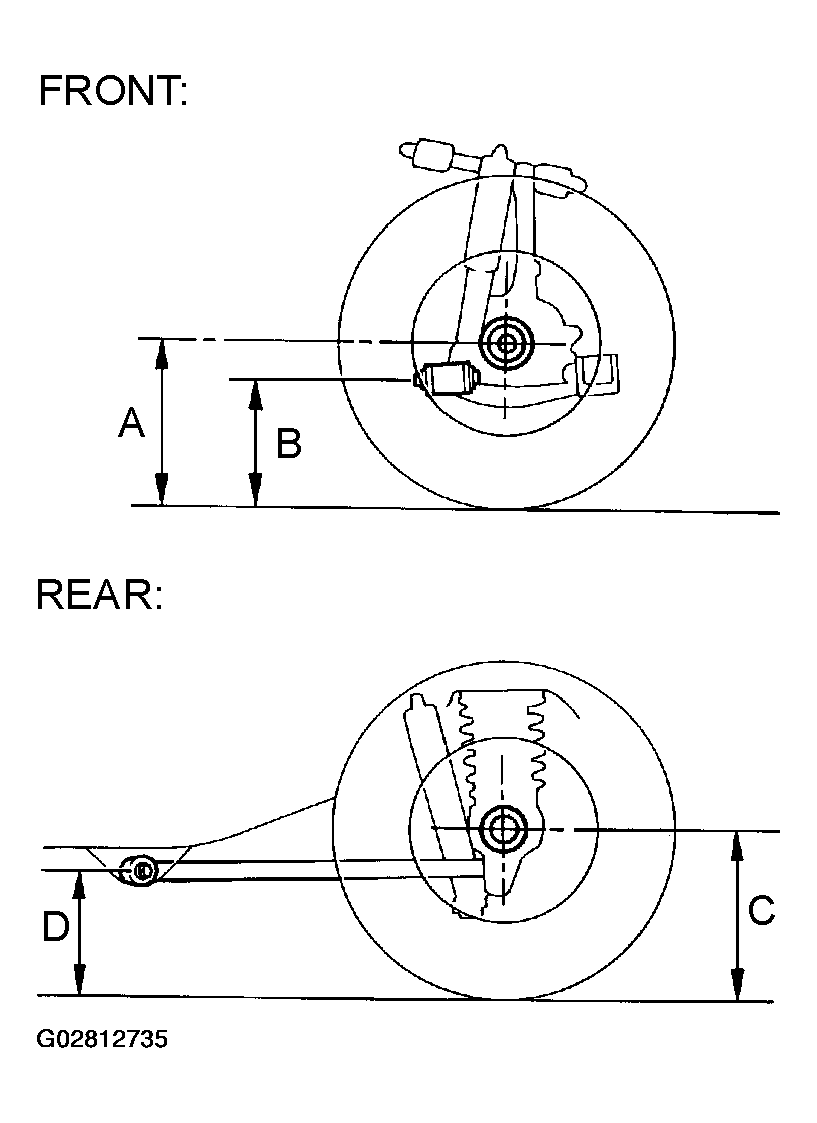

Measuring points:

Ground clearance of front wheel center
Ground clearance of lower suspension arm No.2 set bolt center
Ground clearance of rear wheel center
Ground clearance of strut rod set bolt center

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.

INSPECT TOE-IN

Fig 2: Inspecting Toe-In
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Toe-In Specification
1. A + B: 0°05' +/- 0°10' (0.08° +/- 0.16°)
2. C - D: 1 +/- 2 mm (0.04 +/- 0.08 in.)
If the toe-in is not within the specified value, adjust it at the rack ends.
ADJUST TOE-IN
1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  NOTE:
  Try to adjust the toe-in to the center of the specified value.
4. Make sure that the lengths of the right and left rack ends are the same.
5. Torque the tie rod end lock nuts.

  Fig 3: Torquing Tie Rod End Lock Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 88 N.m (897 kgf.cm, 65 Ft.Lbs)
6. Place the boots on the seats and install the clips.

INSPECT WHEEL ANGLE

Turn the steering wheel fully, and measure the turning angle.

Fig 4: Inspecting Wheel Angle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Wheel angle:

WHEEL ANGLE SPECIFICATION 2WD

Inside wheel	37°00' (35°00' - 38°00')
Inside wheel	37.00° (35.00° - 38.00°)
Outside wheel (Reference)	32°30'
Outside wheel (Reference)	32.50°

WHEEL ANGLE SPECIFICATION 4WD

Inside wheel	36°40' (34°40' - 37°40')
Inside wheel	36.67° (34.67° - 37.67°)
Outside wheel (Reference)	32°53'
Outside wheel (Reference)	32.88°

If the wheel angles differ from the standard of the specification, inspect the toe-in.

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

Install the camber-caster-kingpin gauge or position vehicle on wheel alignment tester.
Inspect the camber, the caster and the steering axis inclination.

Camber, caster and steering axis inclination:

Fig 5: Inspecting Camber, Caster And Steering Axis Inclination

CAMBER, CASTER AND STEERING AXIS INCLINATION 2WD EXCEPT AIR SUSPENSION

Camber		-0°28' +/- 45' (-0.47° +/- 0.75°)
Right-left error		45' (0.75°) or less
Caster		3°23' +/- 45' (3.38° +/- 0.75°)
Right-left error		45' (0.75°) or less
Steering axis inclination		12°58' +/- 45' (12.97° +/- 0.75°)
Right-left error		45' (0.75°) or less

CAMBER, CASTER AND STEERING AXIS INCLINATION - 2WD AIR SUSPENSION

Camber		-0°30' +/- 45' (-0.50° +/- 0.75°)
Right-left error		45' (0.75°) or less
Caster		3°33' +/- 45' (3.55° +/- 0.75°)
Right-left error		45' (0.75°) or less
Steering axis inclination		13°00' +/- 45' (13.00° +/- 0.75°)
Right-left error		45' (0.75°) or less

CAMBER, CASTER AND STEERING AXIS INCLINATION 4WD EXCEPT AIR SUSPENSION

Camber		-0°09' +/- 45' (-0.15° +/- 0.75°)
Right-left error		45' (0.75°) or less
Caster		3°13' +/- 45' (3.22° +/- 0.75°)
Right-left error		45' (0.75°) or less
Steering axis inclination		12°39' +/- 45' (12.65° +/- 0.75°)
Right-left error		45' (0.75°) or less

CAMBER, CASTER AND STEERING AXIS INCLINATION - 4WD AIR SUSPENSION

Camber		-0°10' +/- 45' (-0.17° +/- 0.75°)
Right-left error		45' (0.75°) or less
Caster		3°22' +/- 45' (3.37° +/- 0.75°)
Right-left error		45' (0.75°) or less
Steering axis inclination		12°40' +/- 45' (12.67° +/- 0.75°)
Right-left error		45' (0.75°) or less

If the steering axis inclination is not as specified after camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel for distortion or looseness.

ADJUST CAMBER AND CASTER
NOTE: After the camber has been adjusted, inspect the toe-in.
1. Loosen the nut and bolt.
2. Turn the camber adjust cam No.2 and toe adjust plate No.2 in the circumference direction, and adjust the camber and the caster.
  NOTE:
  Try to adjust the camber and caster to the center value.

  Fig 6: Adjusting Camber And Caster
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. How to read adjustment chart (using examples).
  1. Measure the present alignment.
    Camber: 0°15' (0.25°)

    Caster: 2°45' (2.75°)
  2. Make the difference between the standard value (A) and the measured value (B) on the adjustment chart.
    Standard value:

    Camber: 0°35' (0.58°)

    Caster: 2°55' (2.92°)

    Formula: B - A = C

    Camber: 0°15' - (0°35') = - 0°20'

    Caster: 2°45' - (2°55') = - 0°10'
  3. As shown in Fig 7, read the distance from the marked point to 0 point, and adjust the front and/or rear adjusting cams accordingly.

    Fig 7: Example Of Camber And Caster Adjustment Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  Toe adjust cam: - (Shorter) 2.8

  Camber adjust cam: - (Shorter) 1.8

  Fig 8: Cam Adjustment Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
