Celica (Convertible - Rear Quarter Windows)

Using an ohmmeter, check continuity between specified terminals with power window switch in specified position. See POWER WINDOW SWITCH CONTINUITY TEST (CELICA CONVERTIBLE - REAR QUARTER WINDOWS) table. See Fig 1. If continuity does not exist at specified terminals, replace appropriate power window switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.

POWER WINDOW SWITCH CONTINUITY TEST (CELICA CONVERTIBLE - REAR QUARTER WINDOWS)

Application & Position

⁽¹⁾ Terminals No.

Left Window

1 & 3; 2 & 4

OFF

⁽²⁾

DOWN

1 & 4; 2 & 3

Right Window

1 & 6; 3 & 4

OFF

⁽²⁾

DOWN

1 & 3; 4 & 6

⁽¹⁾	See Fig 1.

⁽²⁾	Continuity should not exist.

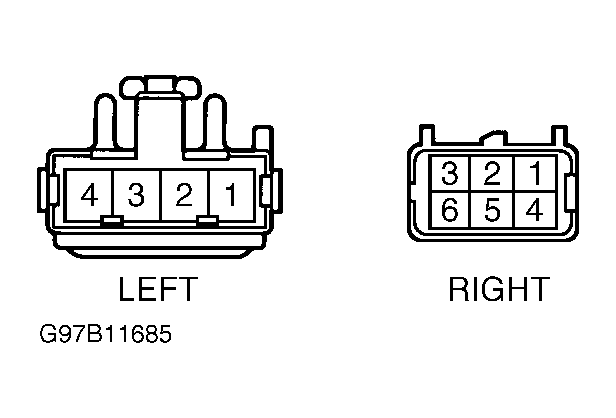

Fig 1: Identifying Power Window Switch Connector Terminals (Celica Convertible - Rear Quarter Windows)
