Abs Front Wheel Speed Sensor - Production Change (BR002-97)
Publication date: 1997-01-17Reference number: BR002-97
ABS FRONT WHEEL SPEED SENSOR - PRODUCTION CHANGE
TECHNICAL SERVICE BULLETIN
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
ABS FRONT WHEEL SPEED SENSOR
Model(s): 1995 Toyota Tercel
1995 Toyota Paseo
1995 Toyota Celica
1995 Toyota Camry (TMC), (TMM)
Section: Brakes
Bulletin No.: BR002-97
Date: January 17, 1997
PRODUCTION CHANGE INFORMATION
1995 Tercel starting VIN: JT2EL56 * * S0083528
1995 Paseo starting VIN: JT2EL45U * S0195386
1995 Celica starting VINs: JT2ST07 * * S0028077
JT2AT0 * * * S0047058
1995 Camry (TMC) starting VINs: JT2GK * * * * S0116357
JT2SK * * * * S0323192
1995 Camry (TMM) starting VINs: 4T1GK1 * * * SU102011
4T1GK1 * * * SU860092
4T1SK1 * * * SU593695
4T1SK1 * * * SU887462
1995 Avalon starting VIN: 4T1GB * * E * SU039032
INTRODUCTION

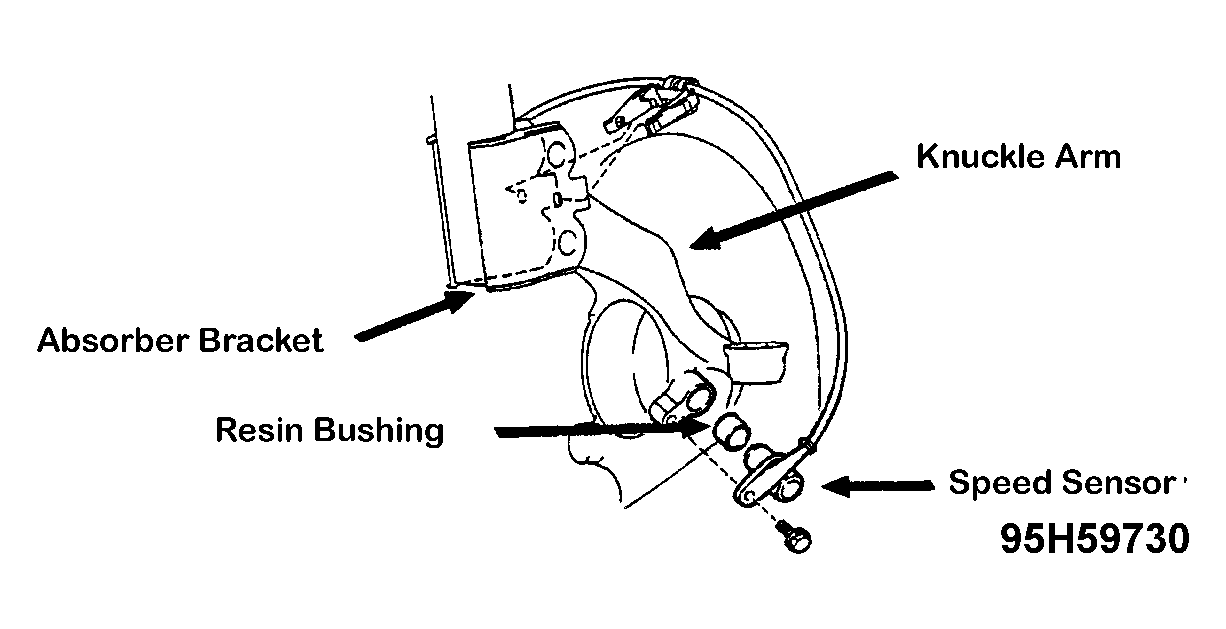

To improve serviceability of the front ABS Wheel Speed Sensor, the diameter of the speed sensor mounting hole, in the steering knuckle, has been increased. In addition, a resin bushing has been installed on the speed sensor. See Fig 1.
PARTS INFORMATION
| Model | Old P/N | New P/N | Description |
|---|---|---|---|
| Tercel, Paseo | N/A | 90389-16021 | Resin Bushing |
| " | 43211-16050 | 43211-16051 | Steering Knuckle (RH) |
| " | 43212-16050 | 43212-16051 | Steering Knuckle (LH) |
| Camry, Avalon, Celica | N/A | 90389-16020 | Resin Bushing |
| Camry (TMC) | 43211-20270 | 43211-20271 | Steering Knuckle (RH) |
| " | 43212-20230 | 43212-20231 | Steering Knuckle (LH) |
| Camry (TMM) | 43211-33010 | 43211-33011 | Steering Knuckle (RH) |
| " | 43212-33010 | 43212-33011 | Steering Knuckle (LH) |
| Avalon | 43211-06050 | 43211-06051 | Steering Knuckle (RH) |
| " | 43212-06050 | 43212-06051 | Steering Knuckle (LH) |
| Celica | 43211-06020 | 43211-06021 | Steering Knuckle (RH) |
| " | 43212-06020 as a set. | 43212-06021 | Steering Knuckle (LH) |
| New Steering Knuckles and Bushings must be replaced | |||
WARRANTY INFORMATION
| OP CODE | Description | Time | OPN | T1 | T2 |
|---|---|---|---|---|---|
| 434211 Tercel, Paseo | Steering Knuckle R & R (one side) | 1.8 | 43211-16050 43212-16050 | 94 | 83 |
| 434211A Tercel, Paseo | Steering Knuckle R & R (both sides) | 2.9 | 43211-16050 43212-16050 | 94 | 83 |
| 434211 Camry (TMM), (TMC) | Steering Knuckle R & R (one side) | 1.8 | 43211-20270 43212-20230 43211-33010 43212-33010 | 94 | 83 |
| 434211A Camry (TMM), (TMC) | Steering Knuckle R & R (both sides) | 2.9 | 43211-20270 43212-20230 43211-33010 43212-33010 | 94 | 83 |
| 434211 Avalon | Steering Knuckle R & R (one side) | 1.8 | 43211-06050 43212-06050 | 94 | 83 |
| 434211A Avalon | Steering Knuckle R & R (both sides) | 2.9 | 43211-06050 43212-06050 | 94 | 83 |
| 434211 Celica | Steering Knuckle R & R (one side) | 1.7 | 43211-06020 43212-06020 | 94 | 83 |
| 434211A Celica | Steering Knuckle R & R (both sides) | 2.9 | 43211-06020 43212-06020 | 94 | 83 |
| Applicable Warranty Coverage: Basic Vehicle Warranty. | |||||
