Test No. 2 - ECM (+B) Circuit

TEST NO. 2 - ECM (+B) CIRCUIT TROUBLE

Terminals	Trouble	Condition	STD Voltage
+B - E1, +B1 - E1	No Voltage	Ignition Switch ON	10 - 14V

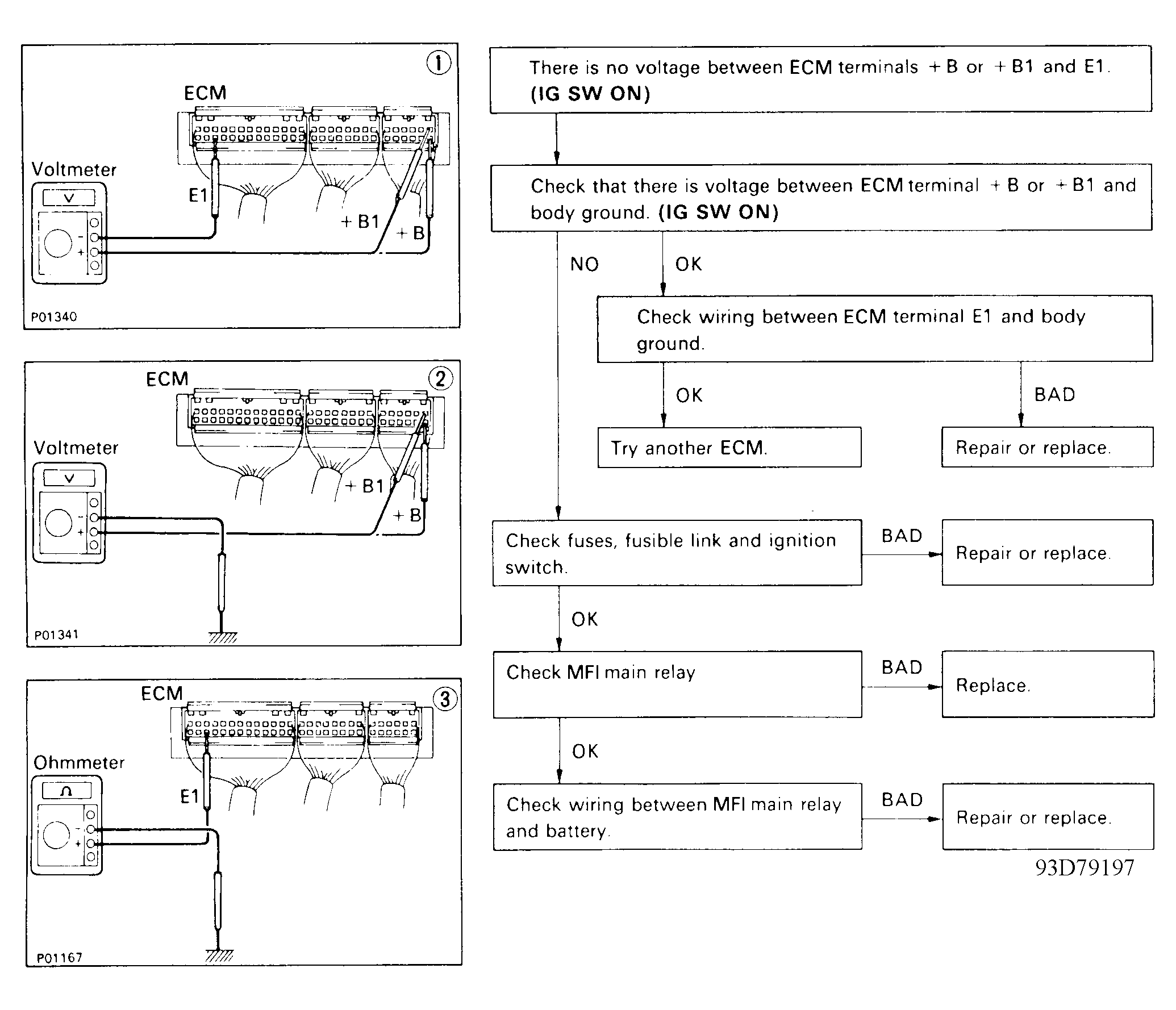

Fig 1: Test No. 2 Flow Chart (5S-FE) ECM (+B) Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

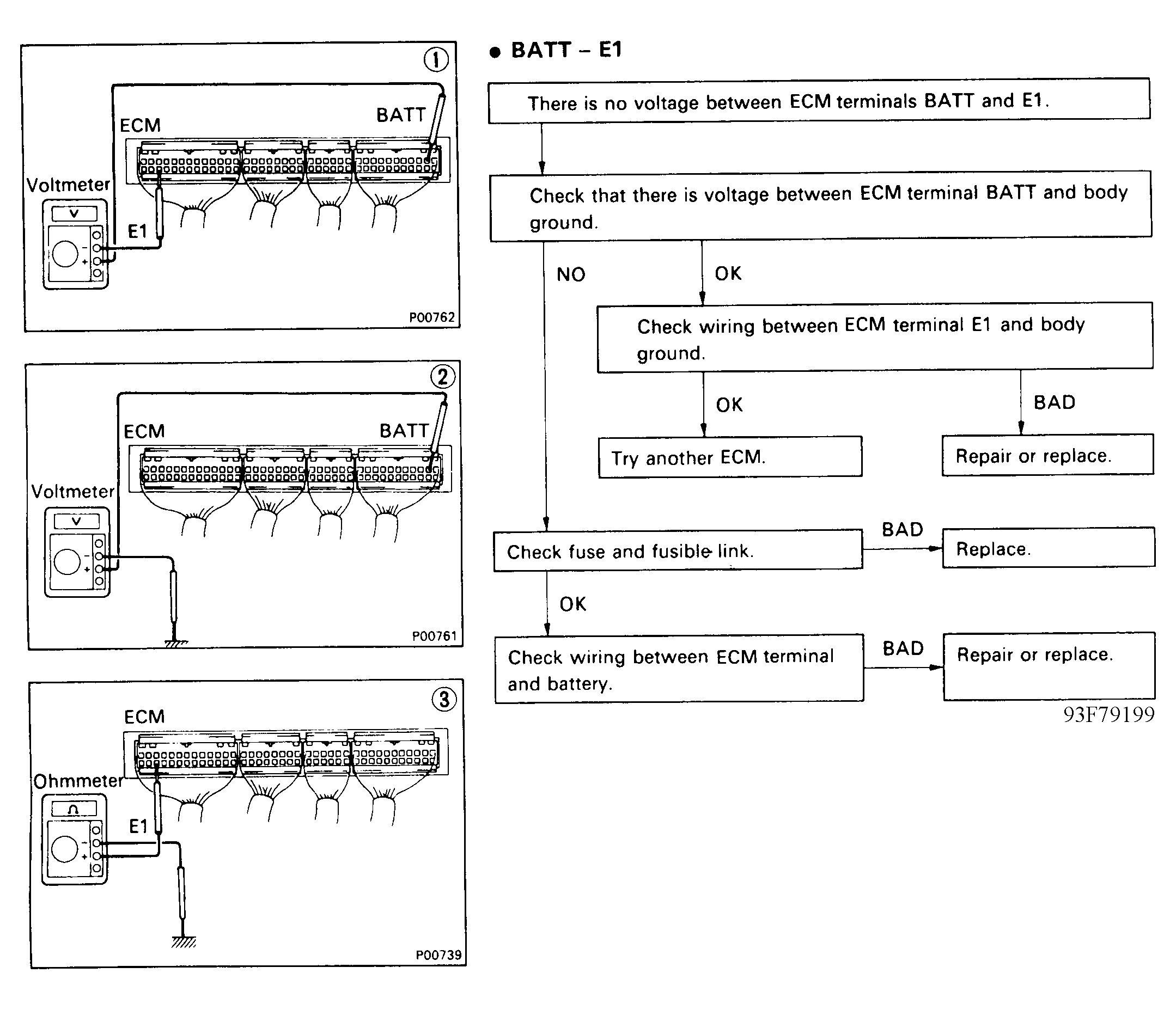

Fig 2: Test No. 2 Flow Chart-Terminals BATT - E1 (3VZ-FE) ECM (+B) Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Test No. 2 Flow Chart-Terminals IG SW - E1 (3VZ-FE) ECM (+B) Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

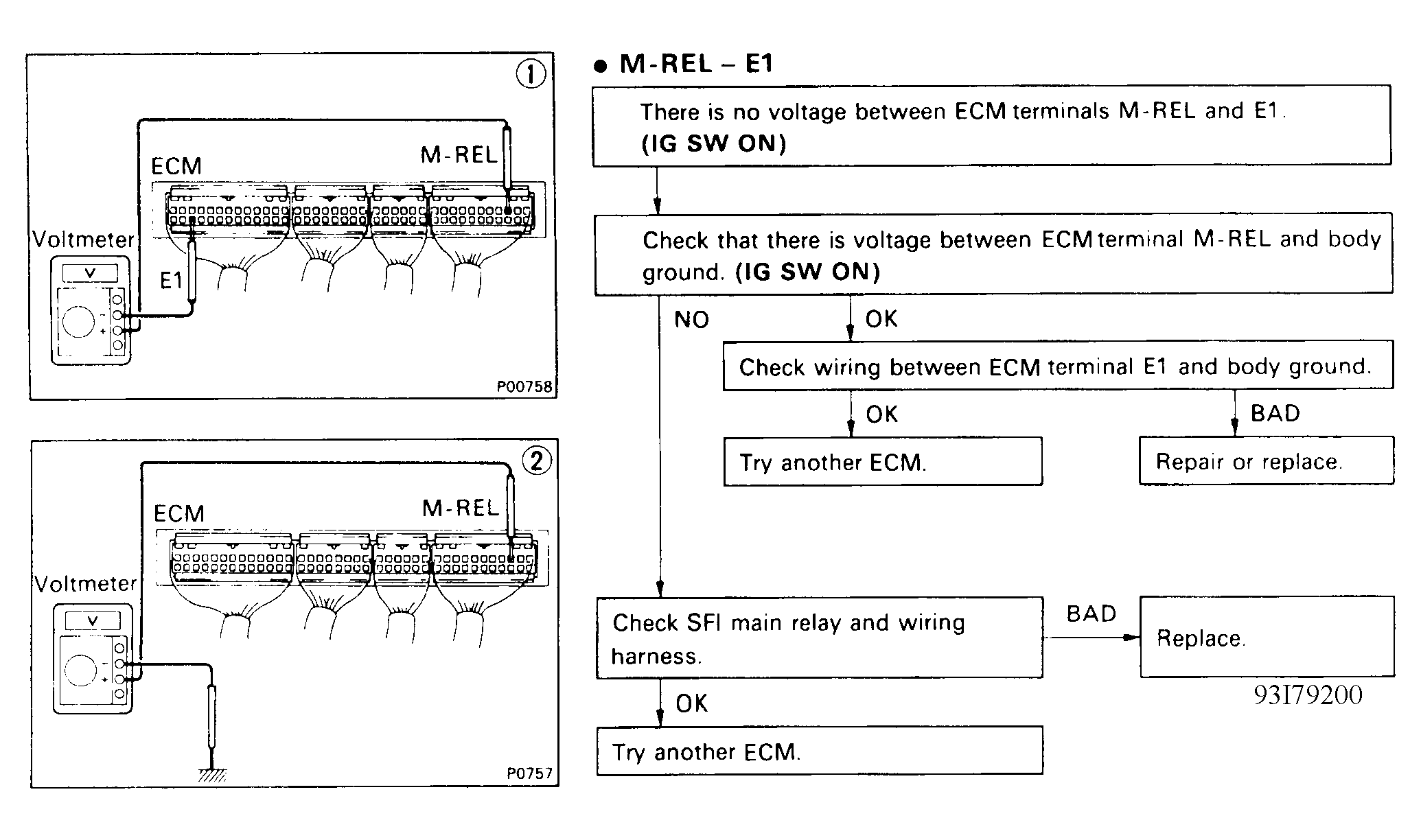

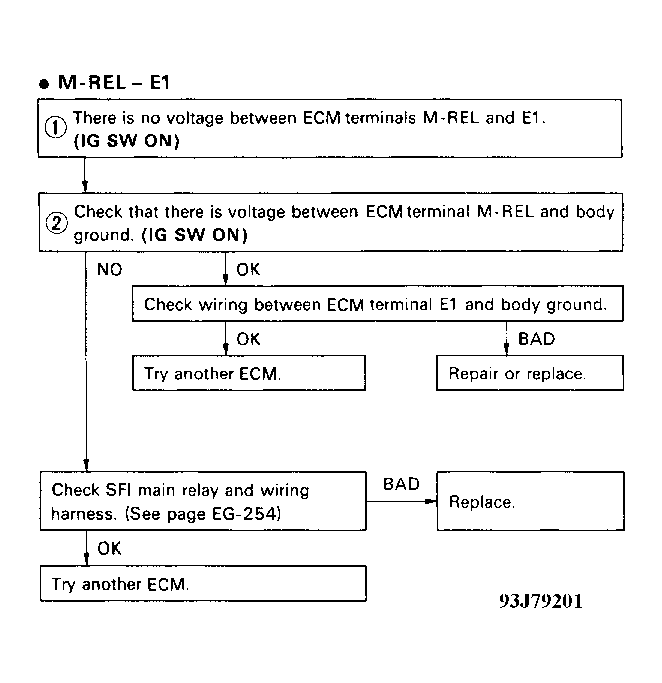

Fig 4: Test No. 2 Flow Chart-Terminals M-REL - E1 (3VZ-FE) ECM (+B) Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

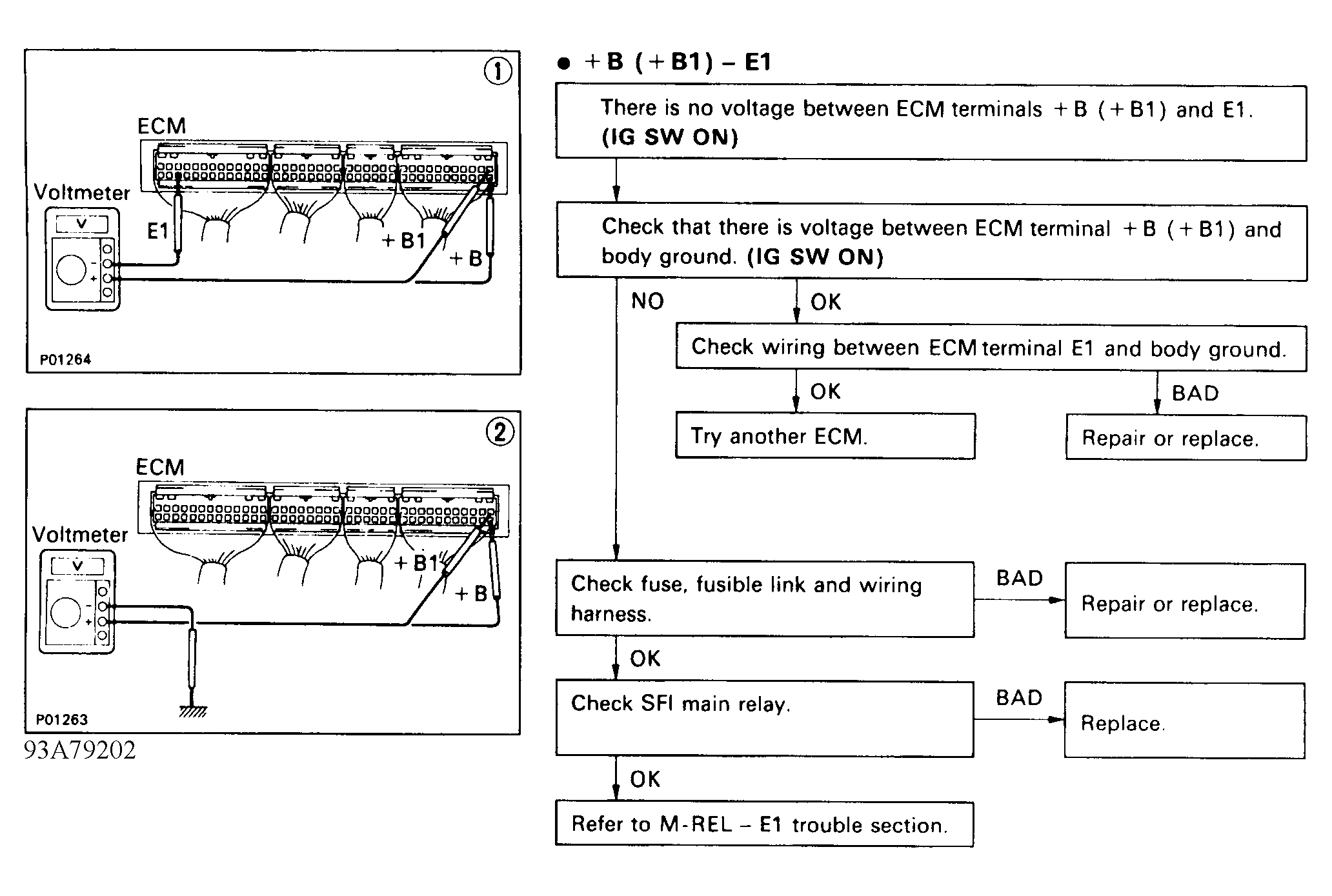

Fig 5: Test No. 2 Flow Chart-Terminals +B (+B) - E1 (3VZ-FE) ECM (+B) Circuit

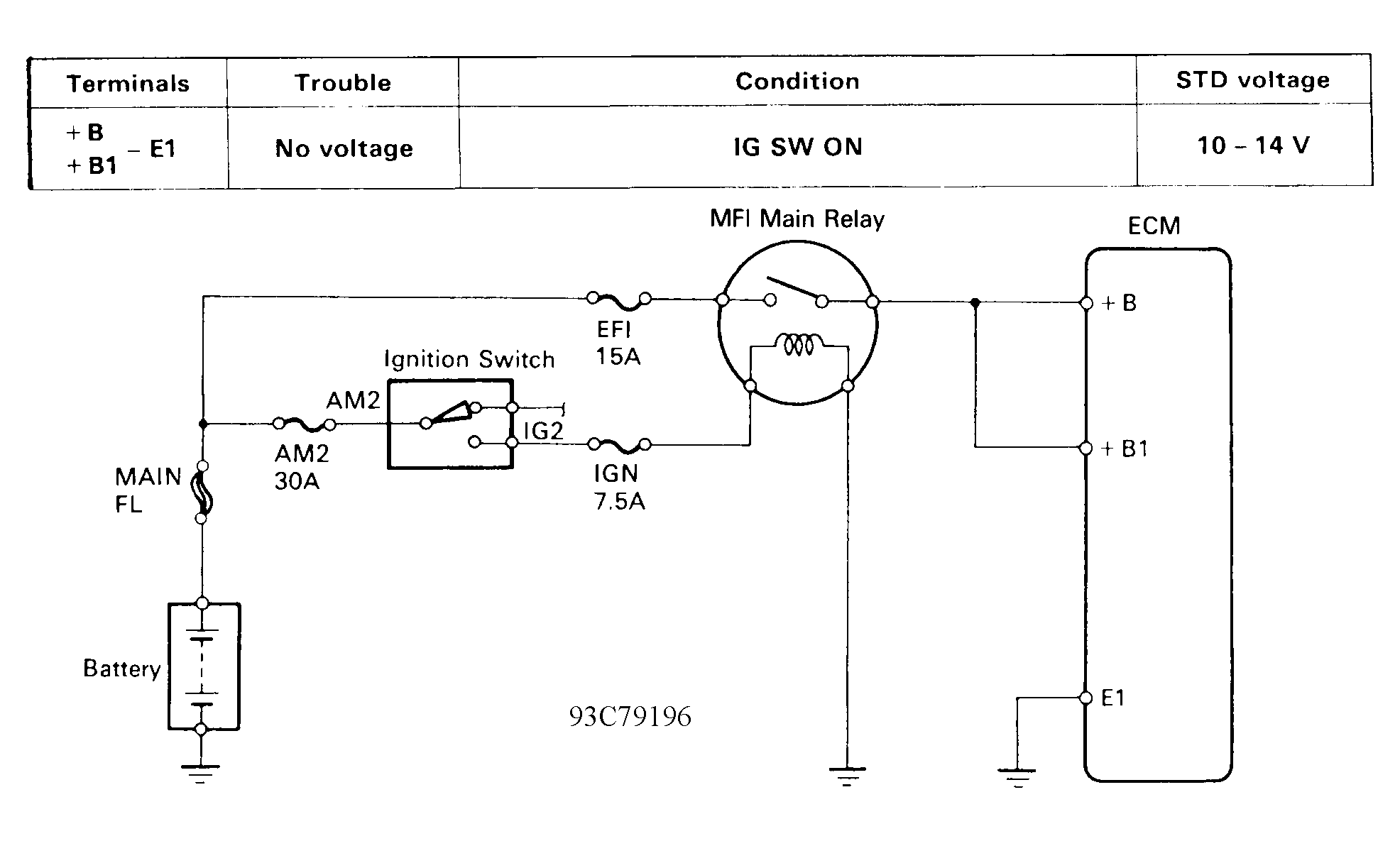

Fig 6: Test No. 2 Schematic (5S-FE) ECM (+B) Circuit

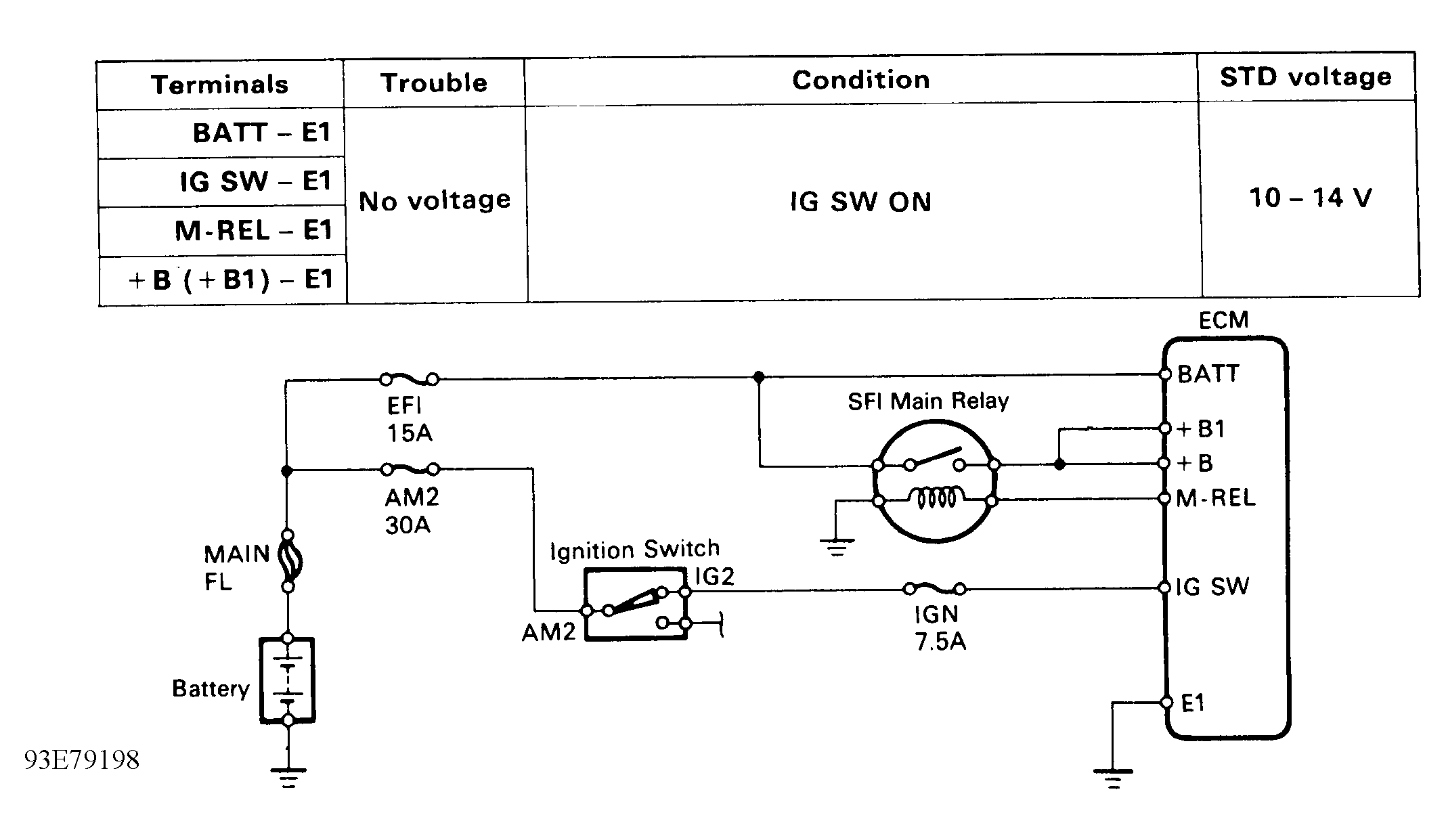

Fig 7: Test No. 2 Schematic (3VZ-FE) ECM (+B) Circuit
