Torque Specifications

Torque Specification: Gearbox Fluid - Front Drive Unit - Drain and Refill

Description	Torque Value	Recommended Tools	Reuse/Replace	Notes

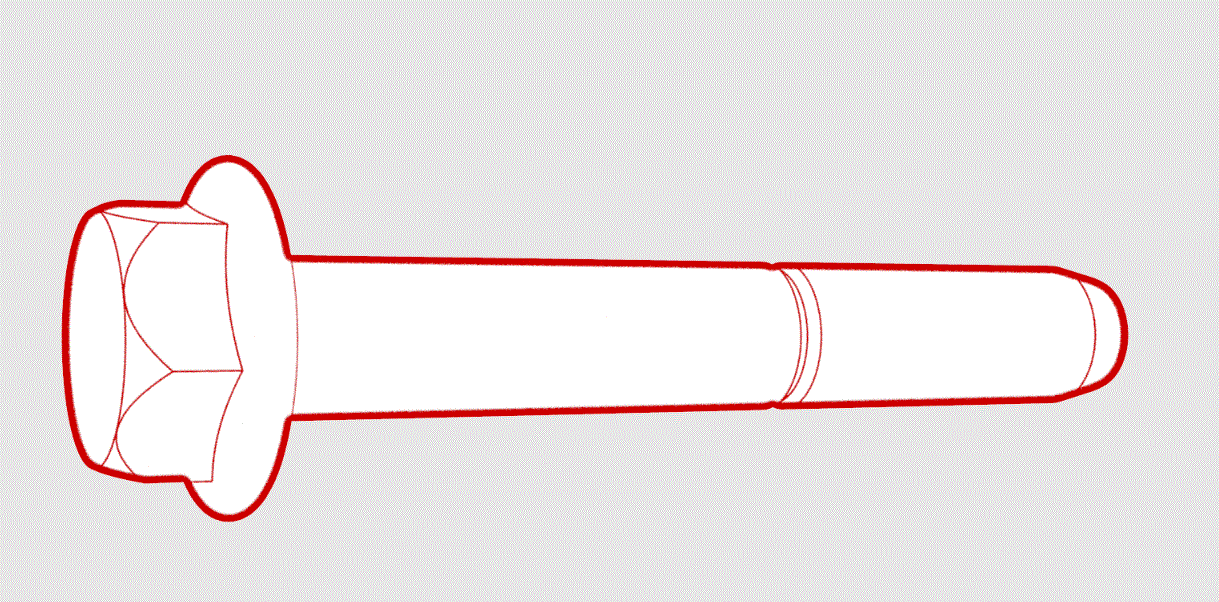

Bolt that attaches the front drive unit to the front subframe	80 N.m (59.0 lbs-ft)	18 mm socket Flex head ratchet/flex head torque wrench	Reuse

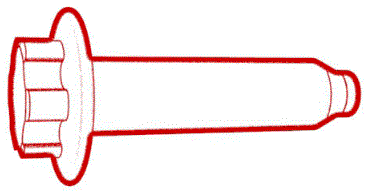

Bolts (x2) that attach the front drive unit oil pump to the front drive unit	5 N.m (3.7 lbs-ft) + 20 degrees	4 in extension EPL 10 socket in to 3/8 in adapter	Reuse

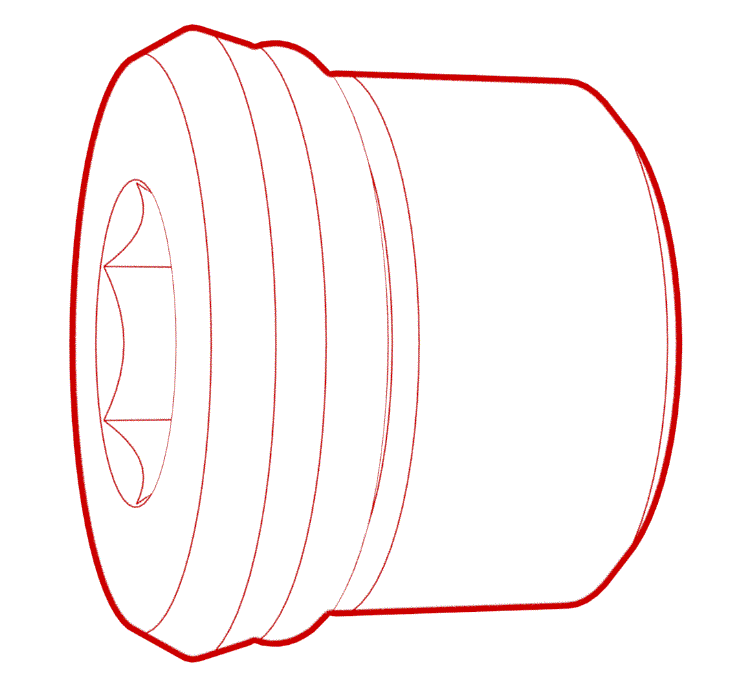

Front drive unit fill plug	15 N.m (11.1 lbs-ft)	Ratchet/torque wrench 8 mm hex	Reuse

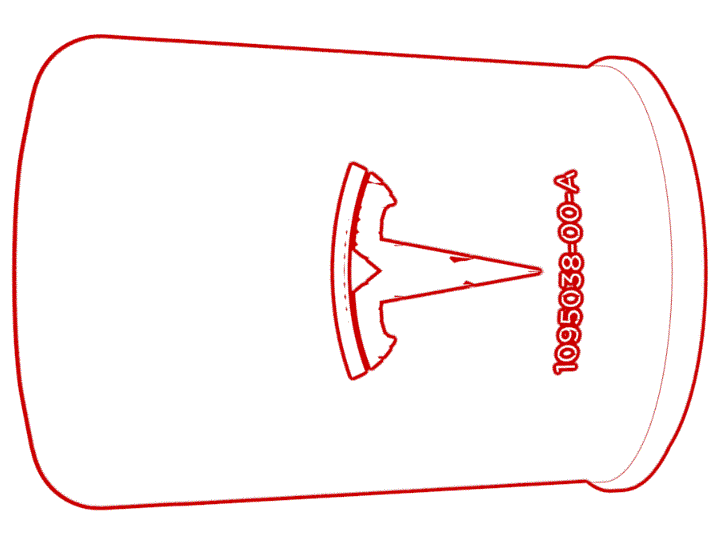

	New oil filter	3 N.m (2.2 lbs-ft) + 135 degrees	21 mm socket in to 3/8 in adapter Torque Wrench 1/4in Dr. + Angle Oil filter socket
