Compressor - Air Suspension - Remove And Replace: Install

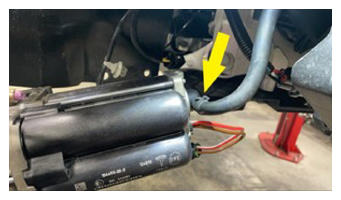

  1. Position the clip that attaches the air line hose to the compressor.
    CAUTION: Support the air compressor with bungee cords as needed to prevent damage to the assembly.
    G15103674Courtesy of TESLA, INC.

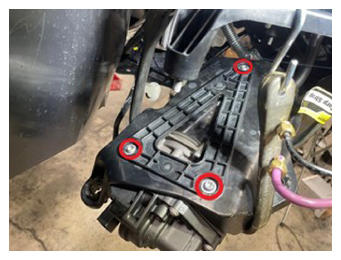

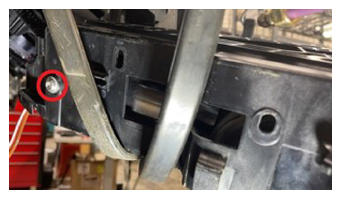

  2. Install the bolts (x4) that attach the air compressor to the compressor carrier.
    NOTE: T30, 5.5 N.m
    G15103675Courtesy of TESLA, INC.
    G15103676Courtesy of TESLA, INC.

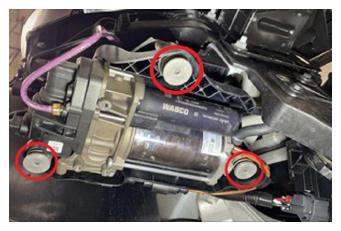

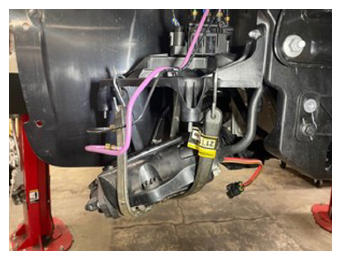

  3. Install the bolts and spring seats (x3) that attach the compressor carrier to the compressor bracket.
    NOTE: T30, 5 N.m
    G15103677Courtesy of TESLA, INC.
    G15103678Courtesy of TESLA, INC.

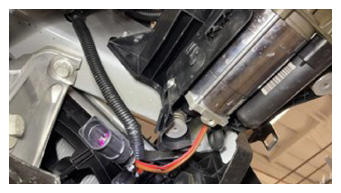

  4. Position the clip that attaches the air compressor electrical harness to the compressor carrier.
    G15103679Courtesy of TESLA, INC.

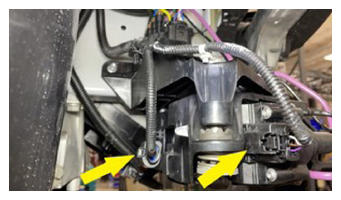

  5. Connect the electrical harnesses (x2) to the air compressor.
    G15103680Courtesy of TESLA, INC.

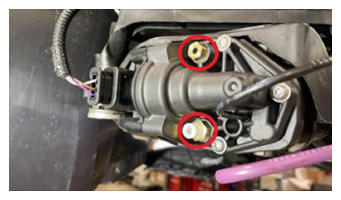

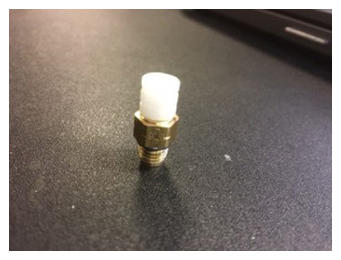

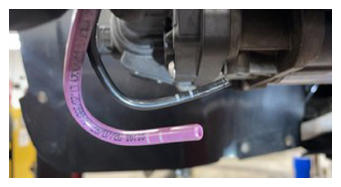

  6. Install new VOSS fittings to the air lines. Remove the white plugs and install the fitting between the white lines indicated on the air lines, then install the VOSS fittings to the air compressor.
    NOTE: 10 mm, 12 mm, 2 N.m
    G15103681Courtesy of TESLA, INC.
    G15103682Courtesy of TESLA, INC.
    G15103683Courtesy of TESLA, INC.
  7. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
  8. Connect LV power. See LV Power (Disconnect and Connect) .
  9. Pressurize the air suspension system. See Air Suspension - Pressurize/Depressurize - Full System .
  10. Close the hood and remove the vehicle from the lift.
