Fender Assembly - Front - LH - Remove and Replace: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Tesla Model 3, 2022 Tesla Model 3, 2021 Tesla Model 3, 2020 Tesla Model 3, and 2019 Tesla Model 3. However, it is still accessible from the selected car via links, so may be relevant.

Last modified: 14/12/2023 16:49:54

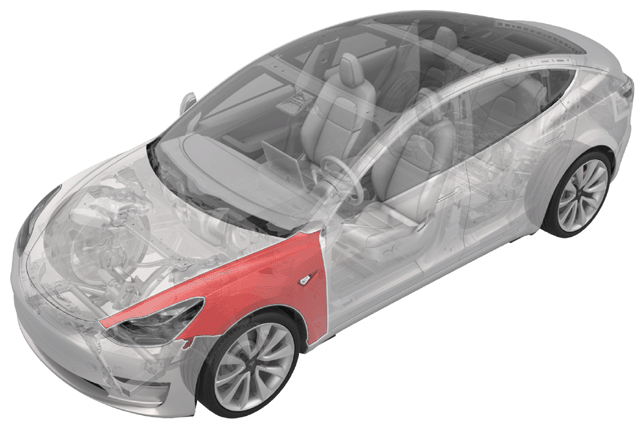

Fig 1: LH Front Fender Assembly Component Location

Courtesy of TESLA, INC.

NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

This procedure assumes the cowl screen carrier bracket, headlight grommet, and underhood storage unit clips on the fender assembly being replaced are undamaged. Inspect these components and if necessary, replace with new parts.

1059658-00-A Chemical, Betaprime, 10ml
1048645-00-A BETASEAL EXPRESS/EXPRESS+

2023-12-14: Added consumables list.

CAUTION:

For Europe only: Only technicians who have been trained in working with diisocyanates and have completed all required certification courses are permitted to perform procedures using urethane and other products containing diisocyanates. Proper personal protective equipment (PPE) must be worn when working with products containing diisocyanates.
