ECM Wiring Diagram (For NOTCH BACK Model) - 4/7

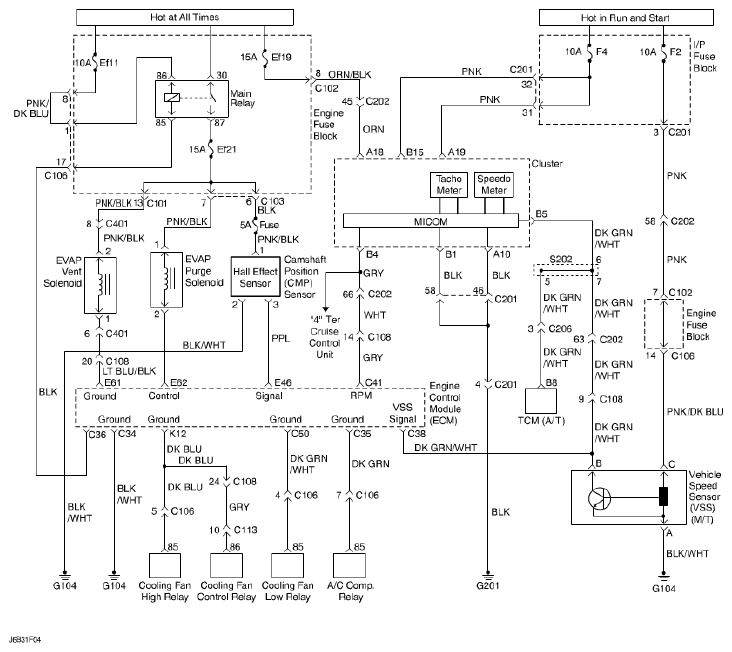

Fig 1: ECM Wiring Diagram (For NOTCH BACK Model) - 4/7

G04817232

Courtesy of SUZUKI OF AMERICA CORP.
