LEMON Manuals
: Even more car manuals for everyone
Home
>>
Suzuki
>>
2006
>>
XL-7 4WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
D Connectors
D Connectors

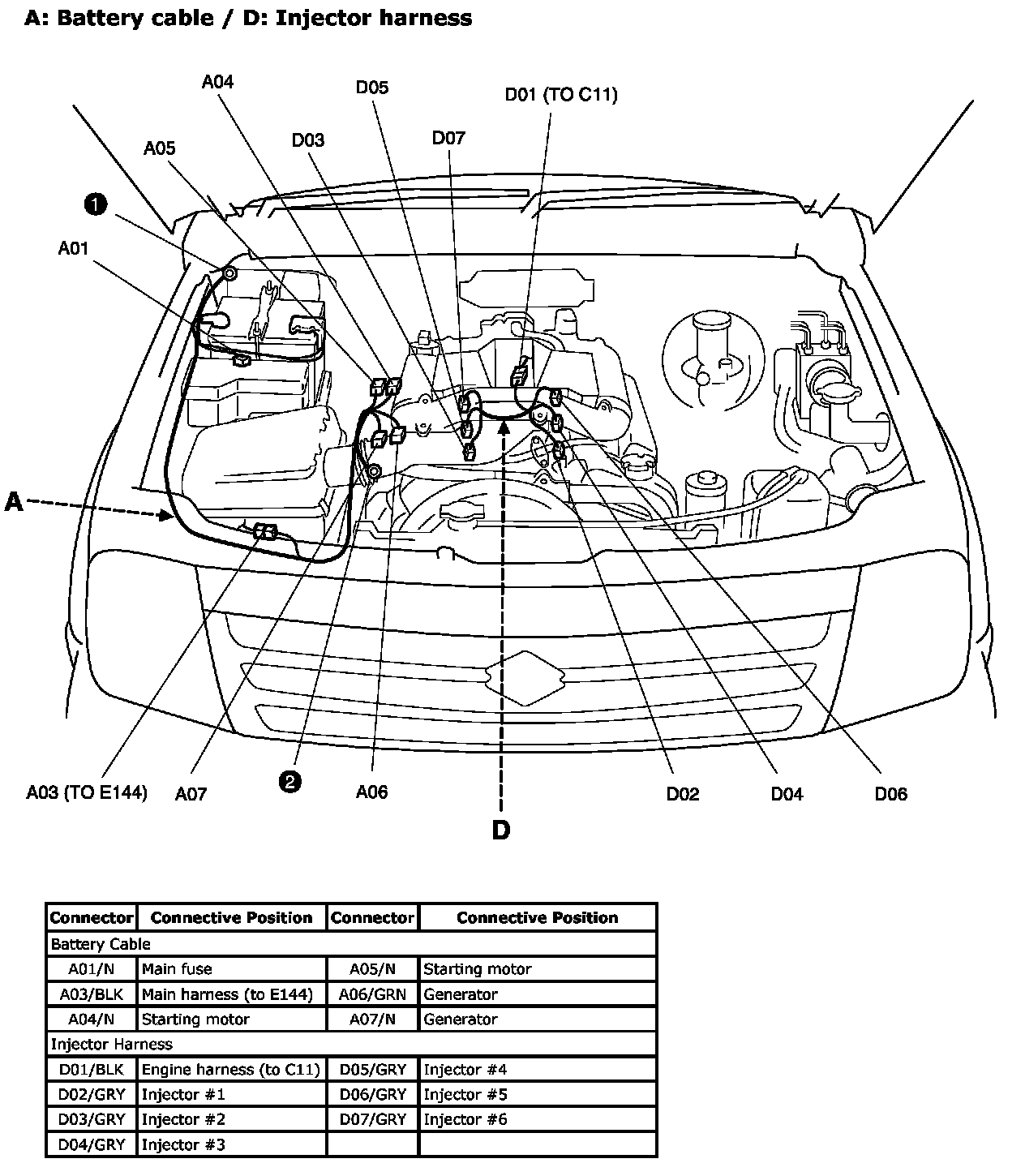

A: Battery cable / D: Injector harness:
