Home >> Suzuki >> 2001 >> Grand Vitara JLS Plus 2WD V6-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Alternator

Alternator

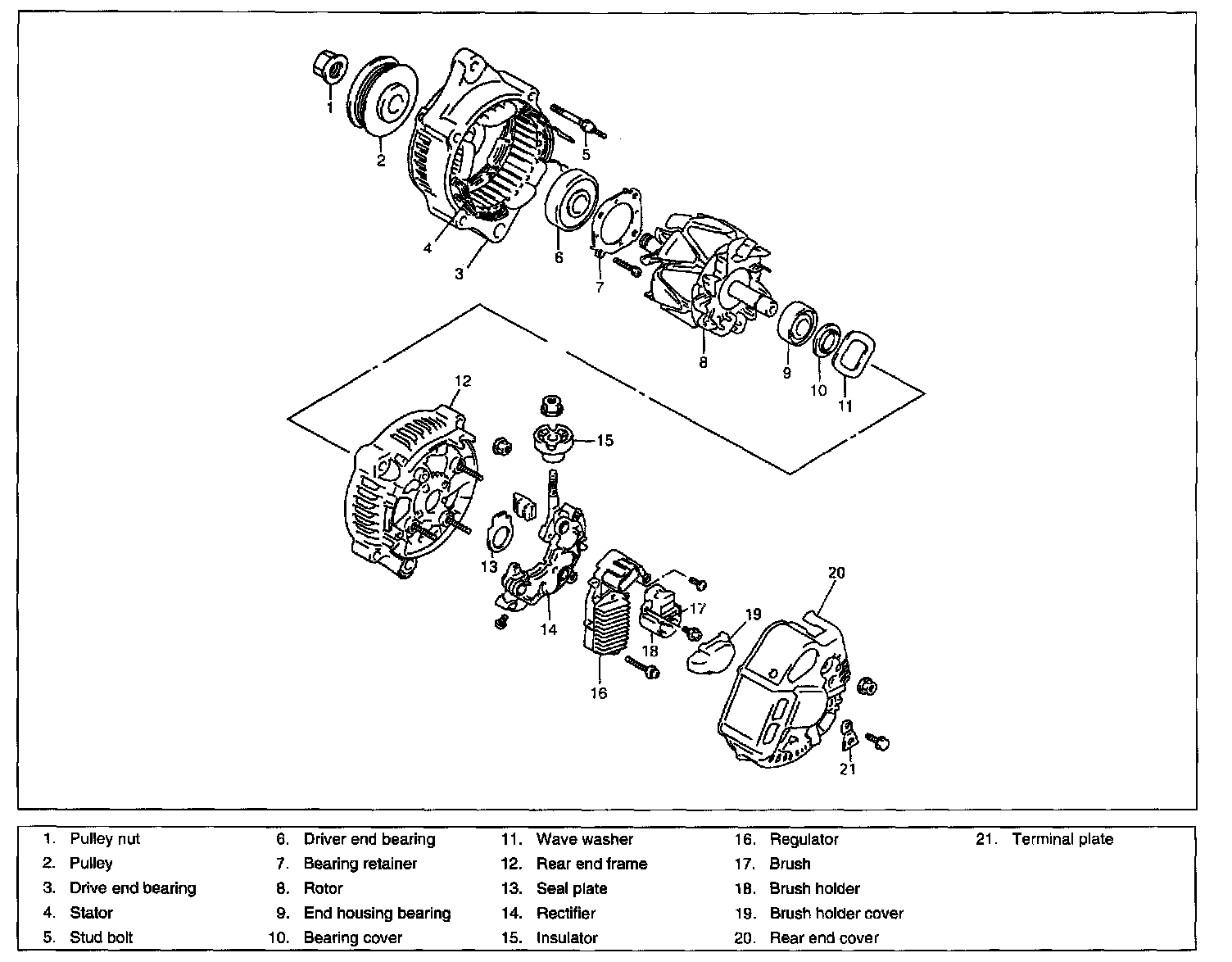

For 60 A And 70 A Types:

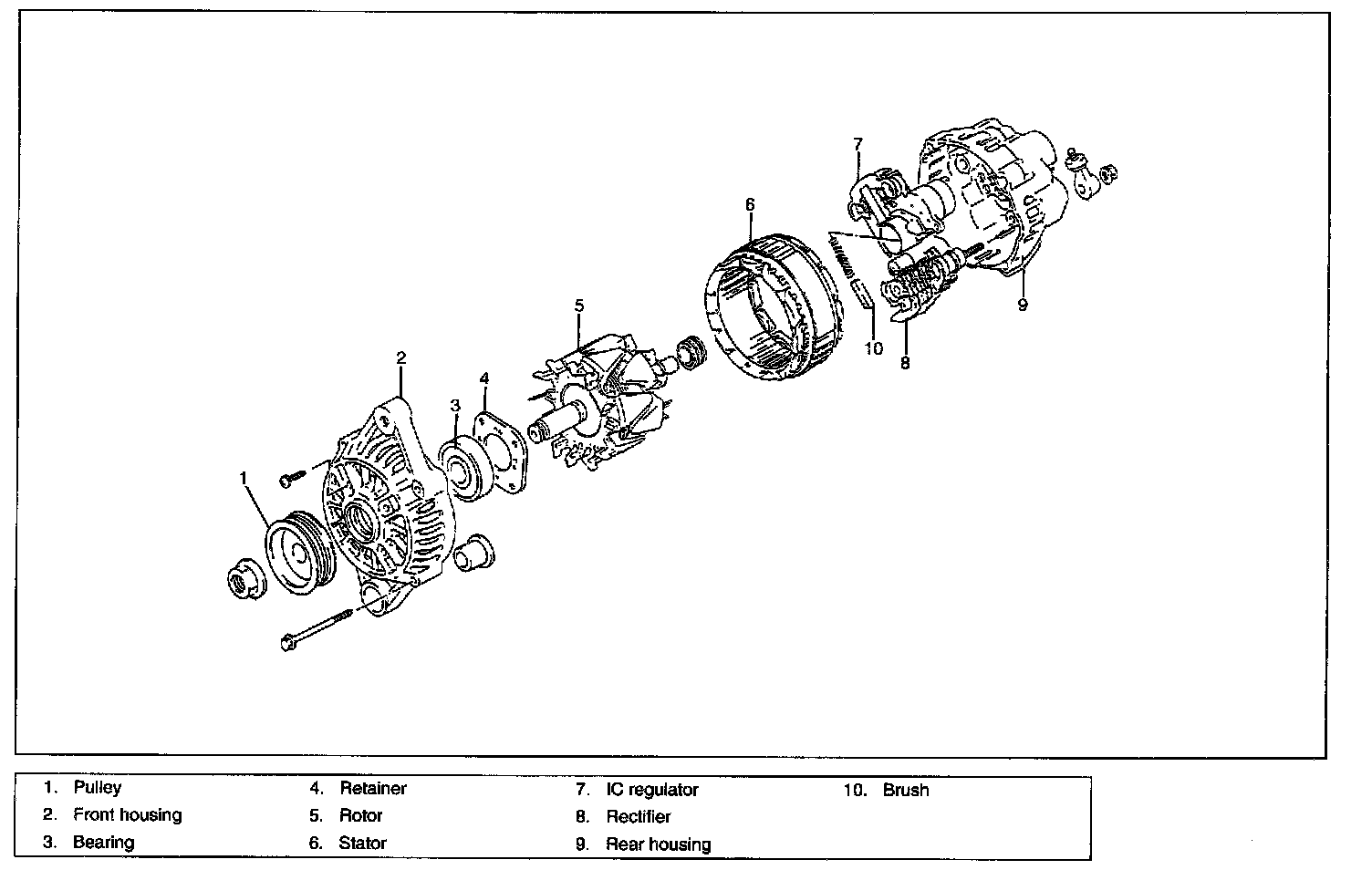

80 A Type:
