CVTF Cooler (Air Cooling): Installation

Install the CVTF cooler (air cool).
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

Connect a new CVTF cooler (air cool) inlet hose and a new CVTF cooler (air cool) outlet hose.

Air cooler side

NOTE:

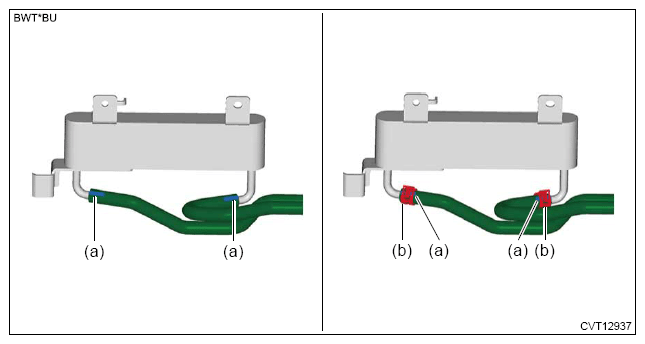

Face the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air hose) outlet hose by 45° toward you from the top-facing position.
Align the claws and the centers of the claws of hose clamps (b) with the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose.
Set the hose clamps (b) so that the both ends of the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose can be seen.

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Face the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air hose) outlet hose in the lateral direction.
Align the claws and the centers of the claws of hose clamps (b) with the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose.
Set the hose clamps (b) so that the both ends of the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose can be seen.

Courtesy of SUBARU OF AMERICA, INC.

Install the air guide LH.
Install the bumper face front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>CVTF>INSPECTION .
