2.5 L Model

  1. Remove the engine assembly. Ref. to MECHANICAL (H4DO)>ENGINE ASSEMBLY>REMOVAL .
  2. Remove the water pipe RH. Ref. to COOLING (H4DO)>WATER PIPE>REMOVAL>WATER PIPE RH .
  3. Remove the water pipe LH. Ref. to COOLING (H4DO)>WATER PIPE>REMOVAL>WATER PIPE LH .
  4. Remove the center water pipe. Ref. to COOLING (H4DO)>WATER PIPE>REMOVAL>CENTER WATER PIPE .
  5. Remove the inlet engine coolant temperature sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>ENGINE COOLANT TEMPERATURE SENSOR>REMOVAL>2.5 L MODEL>INLET ENGINE COOLANT TEMPERATURE SENSOR .
  6. Remove the oil pan and oil strainer. Ref. to LUBRICATION (H4DO)>OIL PAN>REMOVAL>OIL PAN .
  7. Remove the oil pan upper from the cylinder block.
    NOTE: Pry the points shown in the figure with a crowbar wrapped by protective tape, and then remove the oil pan upper.

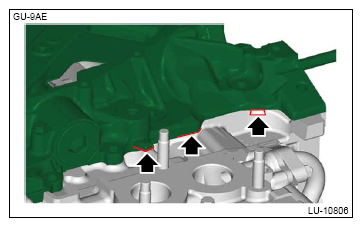

    • RH side
      G16761742Courtesy of SUBARU OF AMERICA, INC.

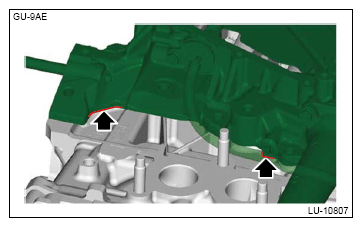

    • LH side
      G16761743Courtesy of SUBARU OF AMERICA, INC.

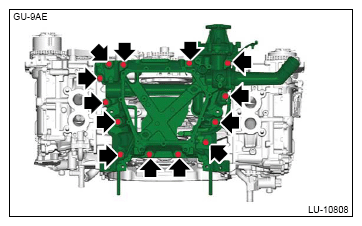

    G16761744Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the O-ring from the cylinder block.

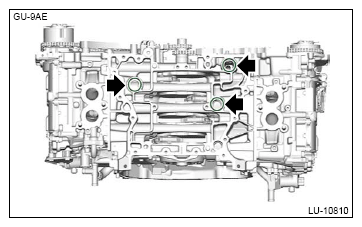

    G16761745Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the liquid gasket from oil pan upper and cylinder block.
