Power Window Regulator Motor Assembly (Installed To The Front Side): Removal

NOTE: The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.
  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of the door armrest cover LH (Refer to ASSEMBLY )
  3. Removal of the front door trim board sub-assembly LH (Refer to ASSEMBLY )
  4. Removal of power window regulator master switch assembly (with front armrest base panel UPR LH) (driver's side door) (Refer to ASSEMBLY )
  5. Removal of power window regulator switch assembly (with front armrest base panel UPR RH) (passenger's side door) (Refer to ASSEMBLY )
  6. Removal of the front door service hole cover LH (Refer to ASSEMBLY )
  7. Removal of front door glass sub-assembly LH (Refer to ASSEMBLY )
  8. Removal of the front door frame sub-assembly RR LWR LH (Refer to ASSEMBLY )
  9. Removal of front door window regulator W/motor assembly (Refer to ASSEMBLY )
  10. Removal of power window regulator motor assembly LH
    1. Using Torx socket wrench T25, remove the 3 Torx screws, and remove the power window regulator motor assembly LH from the front door window regulator LH.

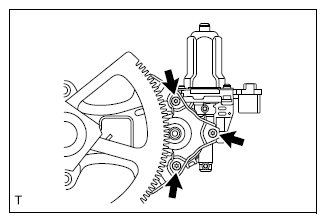

      Fig 1: Locating Power Window Regulator Motor Assembly LH Bolts
      G10217426Courtesy of SUBARU OF AMERICA, INC.
