Immobilizer Antenna: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the screws, and detach the upper column cover and lower column cover.
    Fig 1: Locating Upper Column Cover Screws
    G05022834
  3. Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  4. Disconnect the immobilizer antenna connector (A) and ignition switch lighting connector (B).
  5. Loosen the screw and release the lock (D) at opposite side using flat-tip screwdriver (1), and then detach the immobilizer antenna (C).

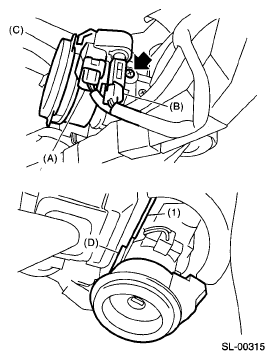

    Fig 2: Locating Immobilizer Antenna Screws
    G05022835
    CAUTION: Do not apply excessive force to remove the immobilizer antenna and lock. Otherwise they may be broken because those parts are the products made of a plastic.
