Rear Exhaust Pipe: Removal

  1. Separate the rear exhaust pipe from center exhaust pipe.
    CAUTION: Be careful, the exhaust pipe is hot.
    Fig 1: Removing Rear Exhaust Pipe From Center Exhaust Pipe
    G02945112Courtesy of SUBARU OF AMERICA, INC.
  2. Separate the rear exhaust pipe from muffler.
    Fig 2: Removing Rear Exhaust Pipe From Muffler
    G02945113Courtesy of SUBARU OF AMERICA, INC.
  3. Apply a coat of SUBARU CRC to mating area of the cushion rubbers in advance.

    SUBARU CRC (Part No. 004301003)

  4. Remove the rear exhaust pipe bracket from the cushion rubber.

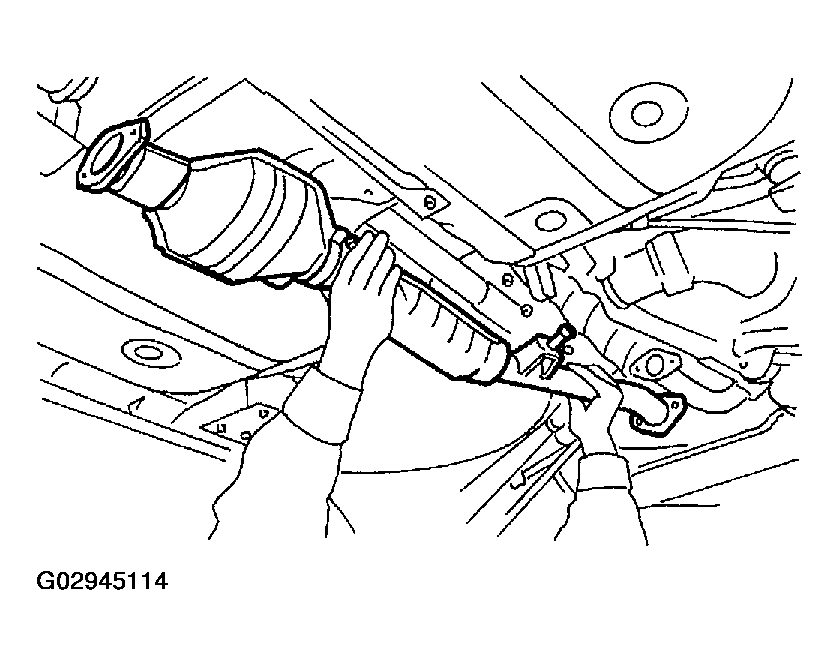

    Fig 3: Removing Rear Exhaust Pipe Bracket From Cushion Rubber
    G02945114Courtesy of SUBARU OF AMERICA, INC.
