Starter 3.0L: Starter: Removal

  1. Disconnect battery ground cable.

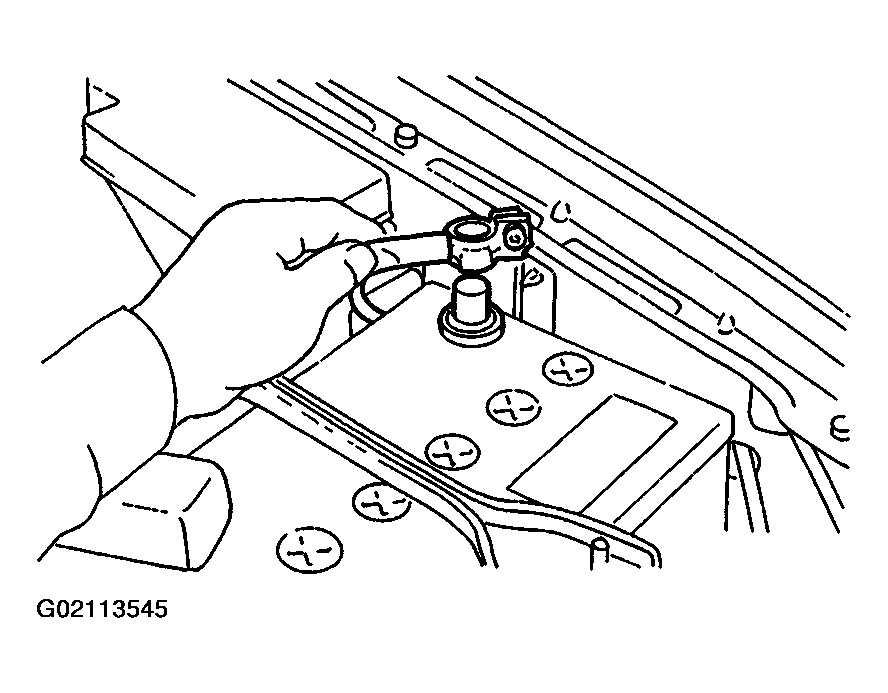

    Fig 1: Disconnecting Battery Ground Cable
    G02113545
  2. Remove air intake chamber. See REMOVAL , Air Intake Chamber.
  3. Disconnect connector and terminal from starter.

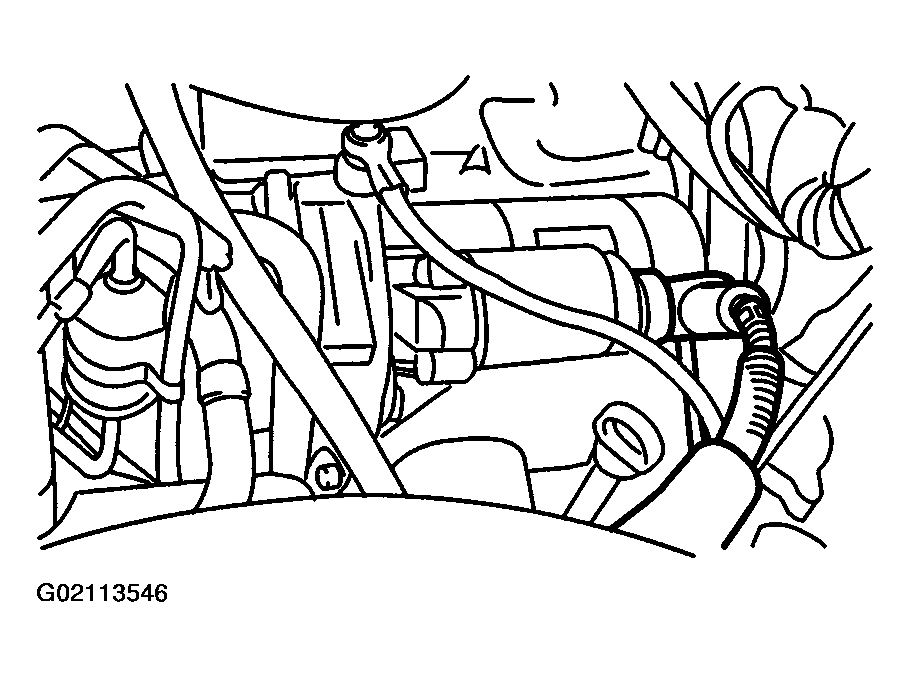

    Fig 2: Disconnecting Connector & Terminal From Starter
    G02113546
  4. Remove starter from transmission.

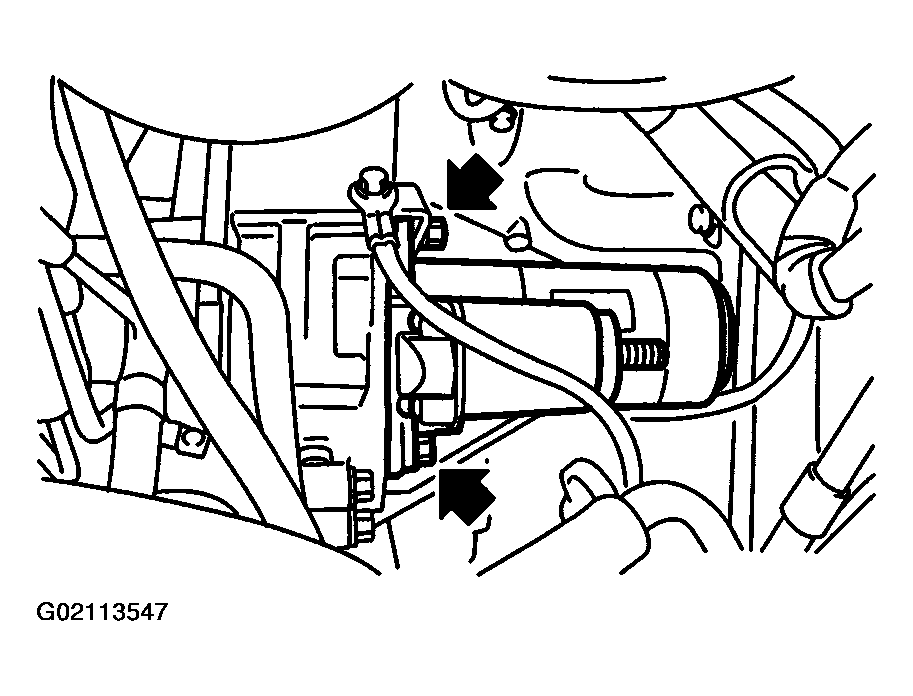

    Fig 3: Removing Starter From Transmission
    G02113547
