Air Inlet Grille Panel Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

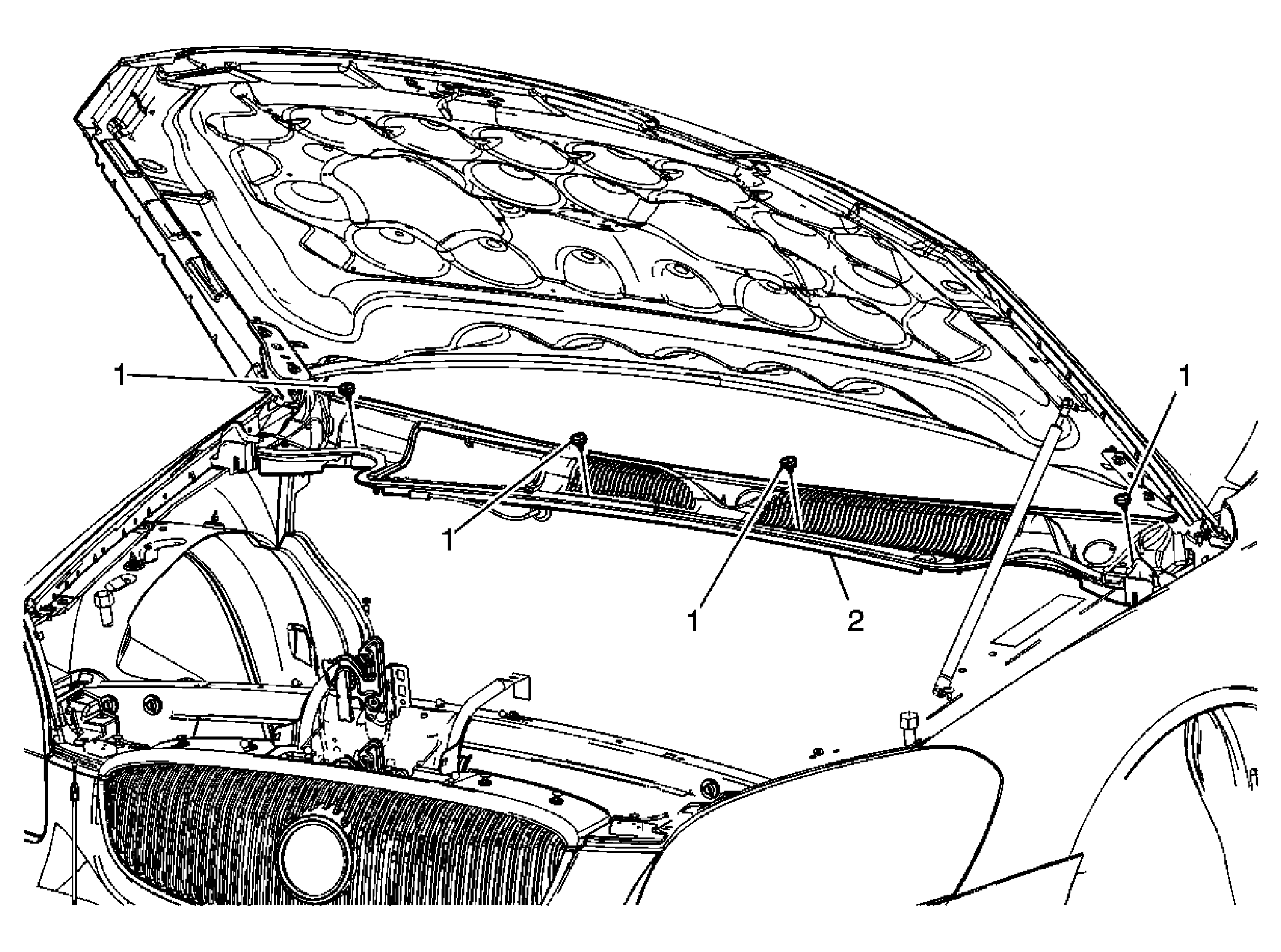

Fig 1: Identifying Air Inlet Grille Panel & Retainers
GM1629721Courtesy of GENERAL MOTORS CORP.
Air Inlet Grille Panel Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove wiper arms. Refer to Windshield Wiper Arm Replacement .
1 Air Inlet Grille Retainers (Qty: 4)
2 Air Inlet Grille
