Park/Neutral Position Switch Removal

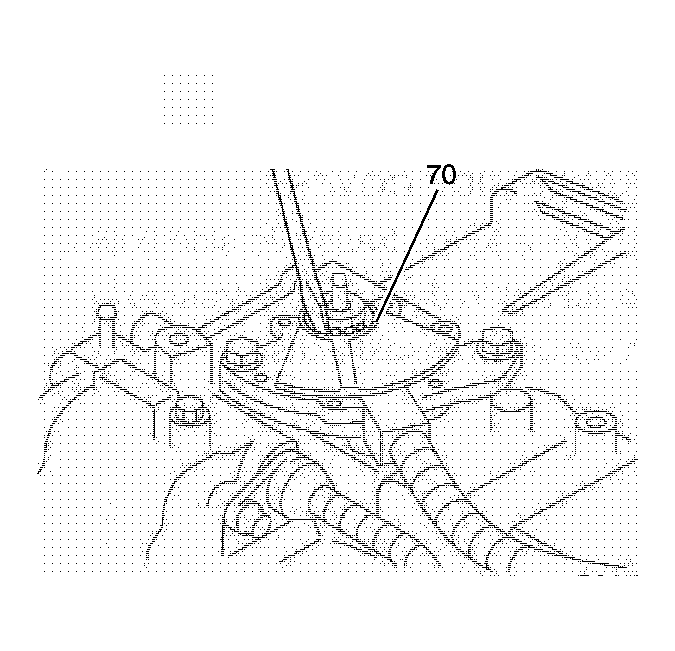

    Fig 1: View Of Lockwasher
    GM2002504Courtesy of GENERAL MOTORS CORP.
  1. Using a screwdriver, pry off the lockwasher (70).

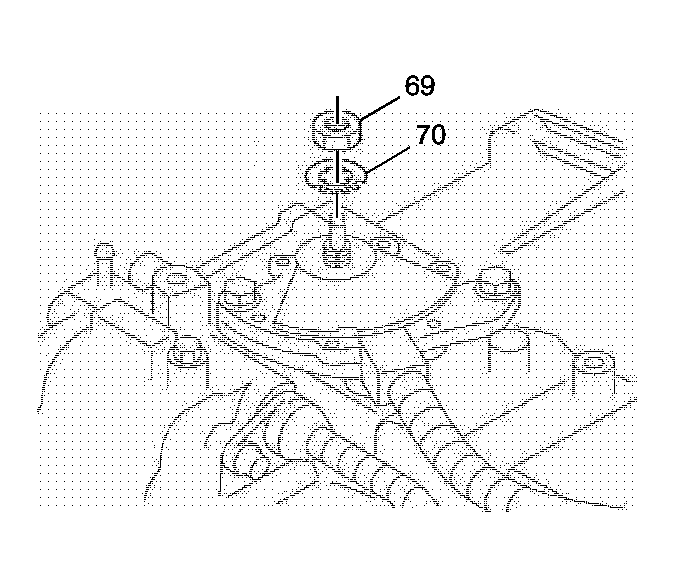

    2. Fig 2: View Of Nut And Washer
    GM2002505Courtesy of GENERAL MOTORS CORP.
  2. Remove the nut (69) and washer (70).

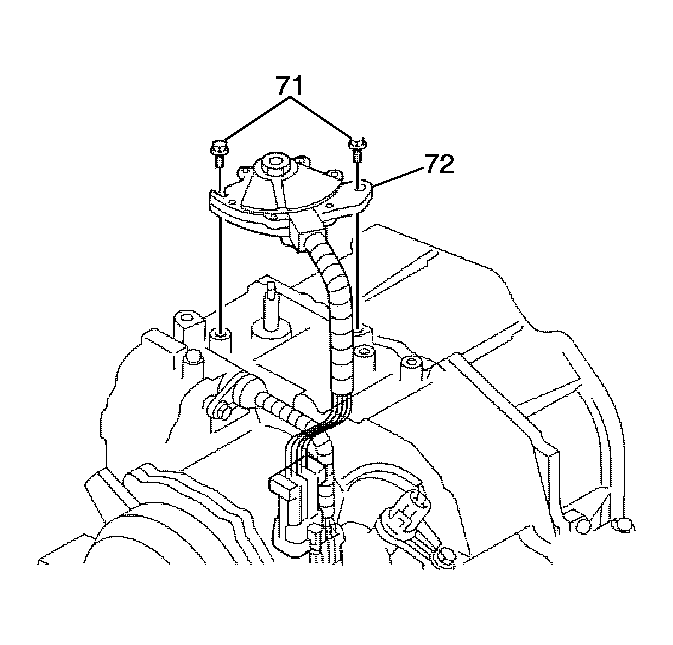

    3. Fig 3: View Of Bolts And Neutral Start Switch
    GM2002507Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 bolts (71) and pull out the neutral start switch (72).
