Removal Procedure

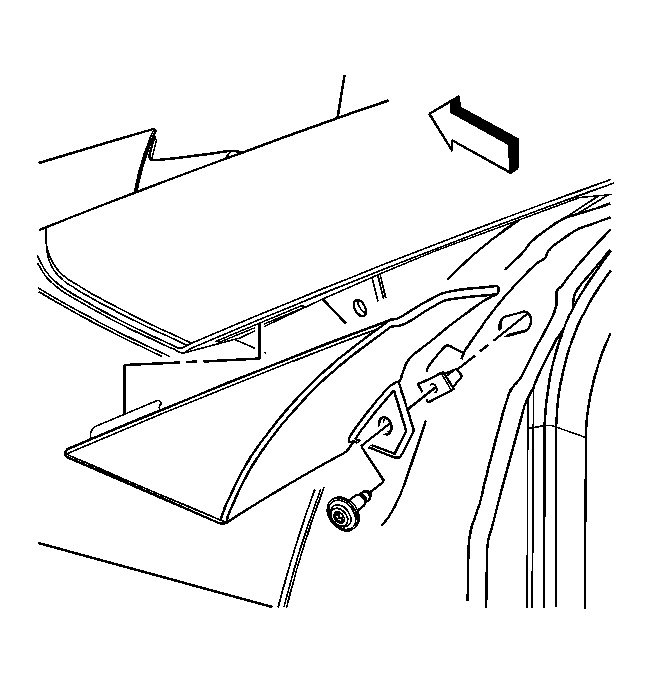

    Fig 1: View Of Mirror Applique
    GM863977Courtesy of GENERAL MOTORS CORP.
  1. Remove the retaining screw from the mirror applique.
  2. Remove the mirror applique from the roof applique by sliding the mirror applique downward.
