Sit-N-Lift Seat Remote Connector End View (AQW)

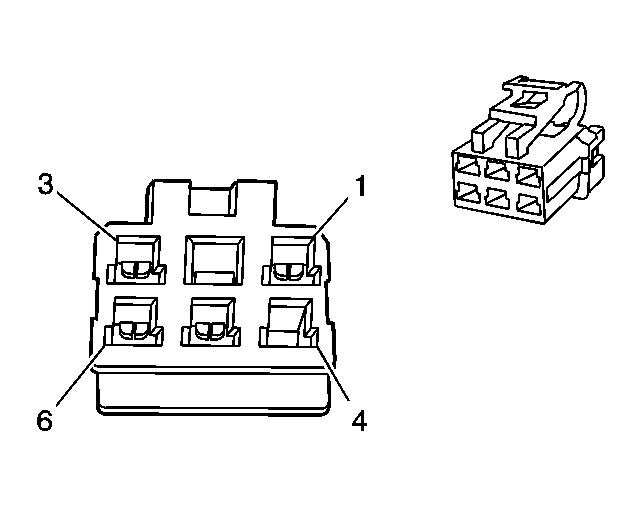

Fig 1: Sit-N-Lift Seat Remote Connector End View

Courtesy of GENERAL MOTORS CORP.

Power Seat Systems Connector End Views

Connector Part Information  OEM: S06FW Service: Not Serviced Description: 6-Way F (WH)

Terminal Part Information  Terminal: Not Serviced in Kit Core/Insulation Crimp: N/A Release Tool/Test Probe: N/A

Sit-N-Lift Seat Remote (AQW)

Pin	Wire Color	Circuit No.	Function
1	GN	AR01	Hand Held Remote Supply Voltage
2	-	-	Not Used
3	RD/YE	AS30	Hand Held Remote Down Switch Signal
4	RD/BK	AS29	Hand Held Remote Up Switch Signal
5	BK	AE11	Ground
6	-	-	Not Used
