Radio/Audio System Schematics

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

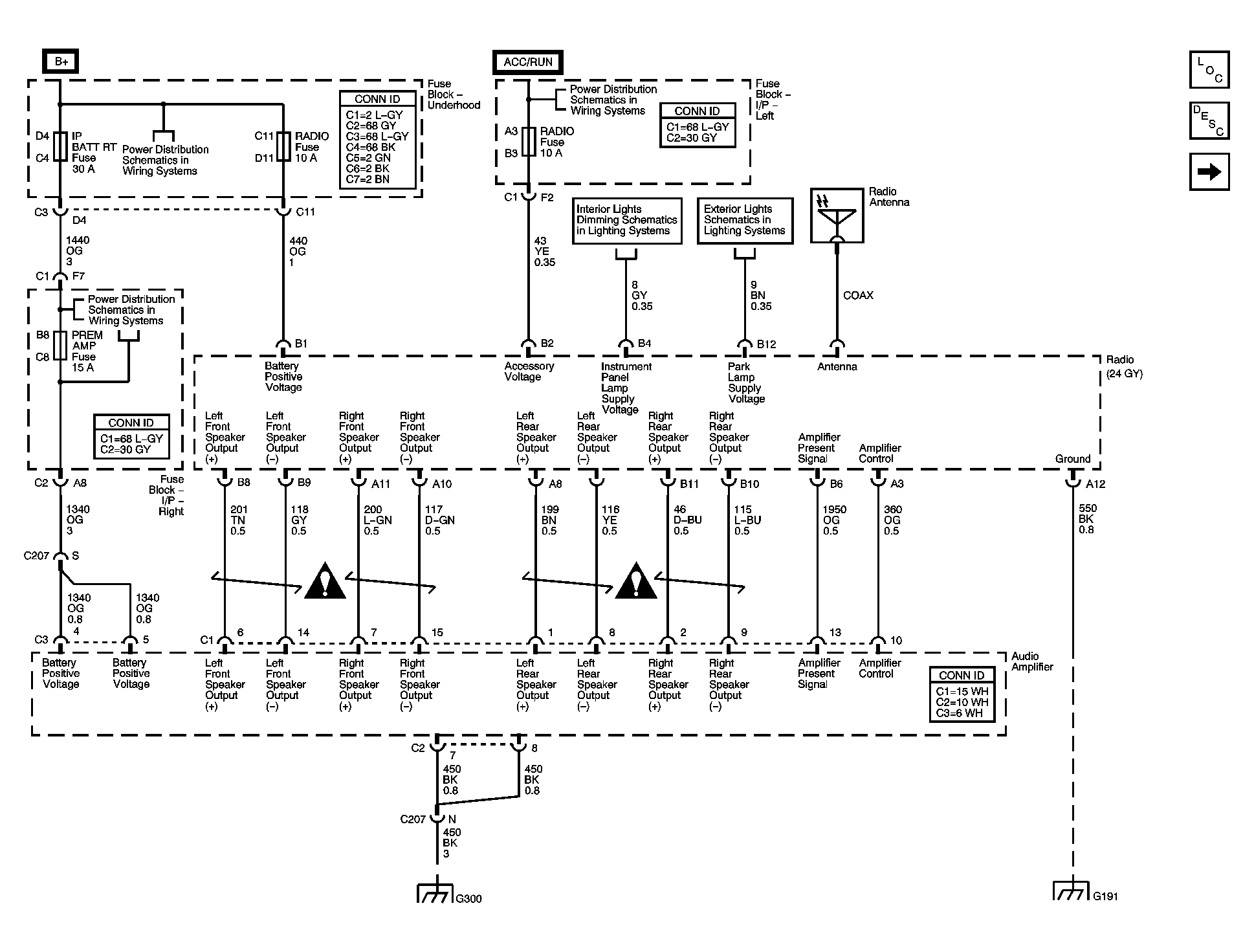

Fig 1: Radio Power, Ground, and Audio Amplifier Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Speakers Schematic

Courtesy of GENERAL MOTORS CORP.
