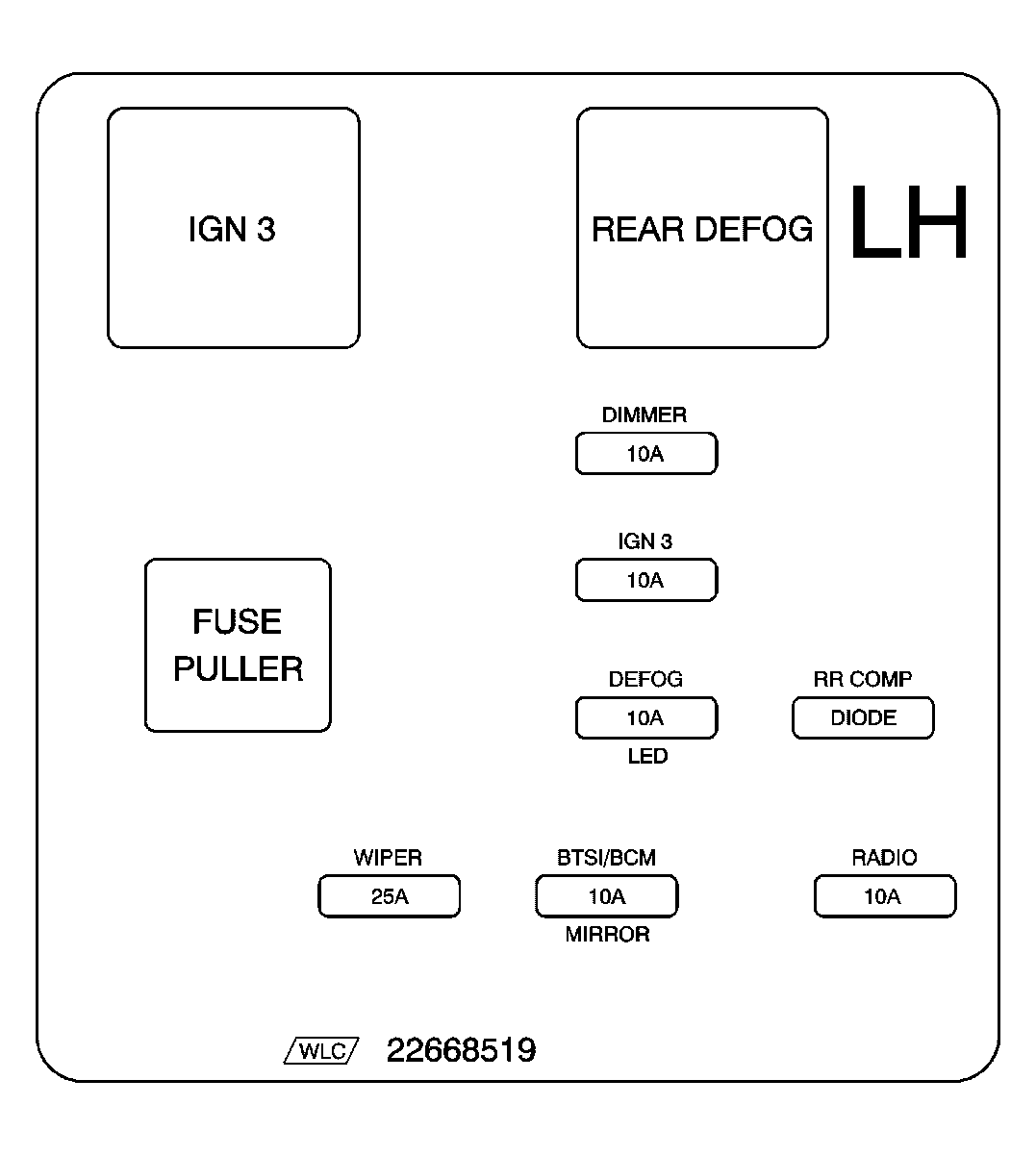

Fuse Block -I/P- Left - Label
Fuse Block -I/P- Left - Label Usage
| Fuse | Rating | Description |
|---|---|---|
| BTSI/BCM MIRROR | 10A | MIRROR SW., BCM, PARKLOCK SW./BTSI SOLENOID |
| DIMMER | 10A | IPC, RADIO, TC SW., HTD SEAT SW., REAR COMPARTMENT LID RELEASE AND I/P LAMP DIMMER, HAZARD SW., ELECTRONIC(PRNDL), HVAC CNTRL MODULE, |
| DEFOG LED | 10A | MIRROR RELAY, HVAC CNTRL MODULE |
| FUSE PULLER | - | - |
| IGN 3 RELAY | - | IGN3, HVAC CNTRL MODULE |
| IGN 3 | 10A | HVAC CNTRL MODULE, TC SW., HTD SEAT SW. |
| REAR DEFOG RELAY | - | HVAC CNTRL MODULE, TC SW., HTD SEAT SW. |
| RR COMP | DIODE | - |
| RADIO | 10A | RADIO |
| WIPER | 25A | WINDSHIELD WIPER MOTOR, WINDSHIELD WIPER/WASHER SW., FRONT WIPER RELAY |
