Installation Procedure

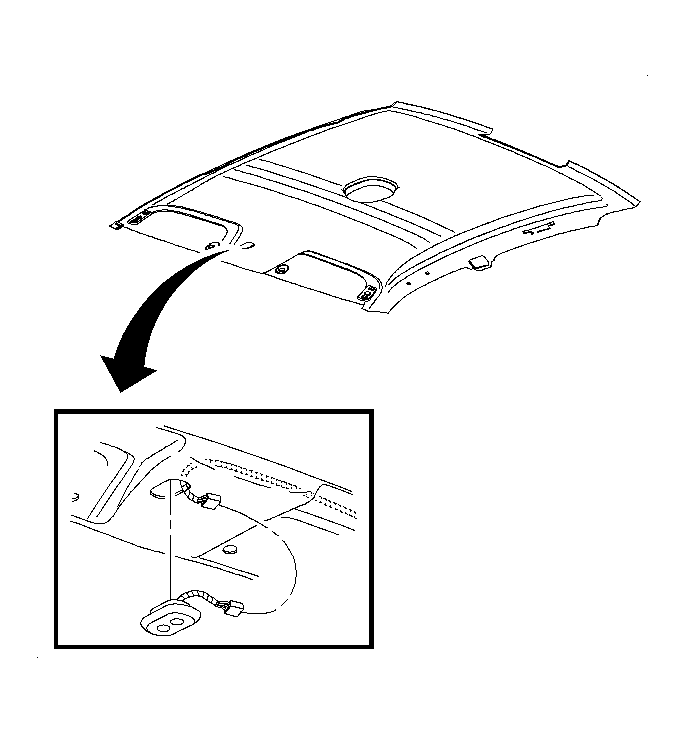

    Fig 1: Removing & Installing Sunroof Switch
    GM896701Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the switch.
  2. Rotate the switch into the opening and press into place until fully seated.
  3. Cycle the sunroof to verify proper operation.
