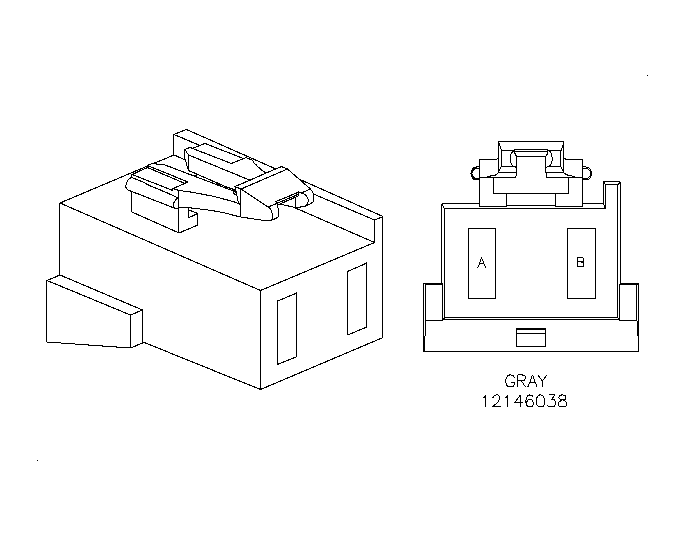

Underhood Fuse Block Connector End View - I/P - Engine Compartment - Left Front
Underhood Fuse Block - I/P - Engine Compartment - Left Front
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | RED | 202 | Ignition Switch-B+ From Ignition 1/4 Maxi-Fuse |
| B | RED | 402 | IPFB-B+ From I/P Battery Maxi-Fuse |
Underhood Fuse Block - I/P - Engine Compartment - Left Front
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A | RED | 302 | IPFB Window Relay-B+ From Window Maxi-Fuse |
| B | RED | 102 | Ignition Switch and IPFB HVAC Blower Relay-B+ From Ignition 3 Maxi-Fuse |
Underhood Fuse Block - I/P - Engine Compartment - Left Front
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit Number | Function |
| A1 | ORN | 1040 | Hazard Fuse |
| A2 | ORN | 1140 | PCM-Battery In |
| A3 | ORN | 1140 | PCM-Battery In |
| A4 - B12 | - | - | Not Used |
| C1 | ORN | 1240 | IPFB - Rear Defog Fuse |
| C2 | ORN | 240 | Park Lamp Fuse |
| C3 | ORN | 9 | IPFB |
| C4 - C8 | - | - | Not Used |
| C9 | PNK | 94 | Washer Pump |
| C10 | - | - | Not Used |
| C11 | LT GRN | 24 | Backup Lamps |
| C12 | PNK | 1200 | LCS - High Beam |
| D1 - D2 | - | - | Not Used |
| D3 | PNK | 439 | PCM - 1 Fuse |
| D4 | LT GRN/BLK | 592 | DRL Relay Coil |
| D5 - D8 | - | - | Not Used |
| D9 | LT BLU | 14 | IPFB |
| D10 - D11 | - | - | Not Used |
| D12 | YEL | 317 | Fog Relay |
| E1 | - | - | Not Used |
| E2 | ORN | 540 | Brake Fuse |
| E3 | PNK | 3 | IPFB Fuses |
| E4 - E5 | - | - | Not Used |
| E6 | DK BLU | 1201 | I/P Cluster Headlamp Signal |
| E7 | DK BLU | 15 | IPFB |
| E8 | - | - | Not Used |
| E9 | BLK | 28 | BCM - Body Comp |
| E10 | - | - | Not Used |
| E11 | GRY | 729 | PCM - A/C Relay Control |
| E12 | PNK | 1200 | Fog Lamp Switch |
| F1 - F3 | - | - | Not Used |
| F4 | RED | 458 | To IPJB Fuses (Auto) |
| F5 | DK BLU | 1201 | LCS - LO Beam |
| F6 | - | - | Not Used |
| F7 | YEL | 5 | Starter Relay (Auto) |
| PPL | 6 | Clutch Start Switch (MAN) | |
| F8 | - | - | Not Used |
| F9 | BLK | 28 | To Horn Switch |
| F10 - F12 | - | - | Not Used |
