Removal Procedure

    Fig 1: Removing/Installing Lumbar Cables
    GM753524Courtesy of GENERAL MOTORS CORP.
  1. Remove the front bucket seat assembly from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the front seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  3. Remove the lumbar cables from the panel clips.
    4. Fig 2: Removing/Installing Seat Back Panel Push-Pin Fasteners
    GM753491Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 push-pin fasteners (1) from each side of the panel.
    5. Fig 3: Removing/Installing Bottom Panel Push-Pin Fastener
    GM784461Courtesy of GENERAL MOTORS CORP.
  5. Remove the push-pin fastener (1) from the bottom of the panel.

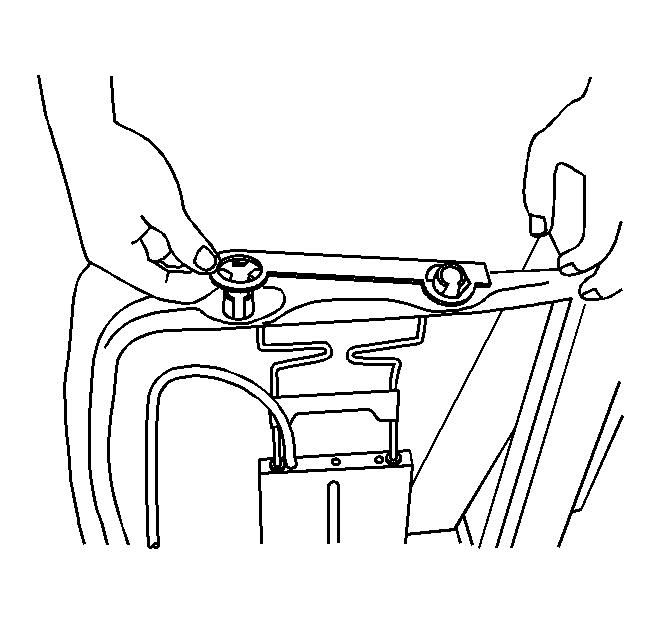

    6. Fig 4: Removing/Installing Seat-Back Frame Panel
    GM753523Courtesy of GENERAL MOTORS CORP.
  6. Remove the panel from the top of the seat-back frame.
  7. Remove the seat-back frame.
