Connector, clutch, cruise control (133)

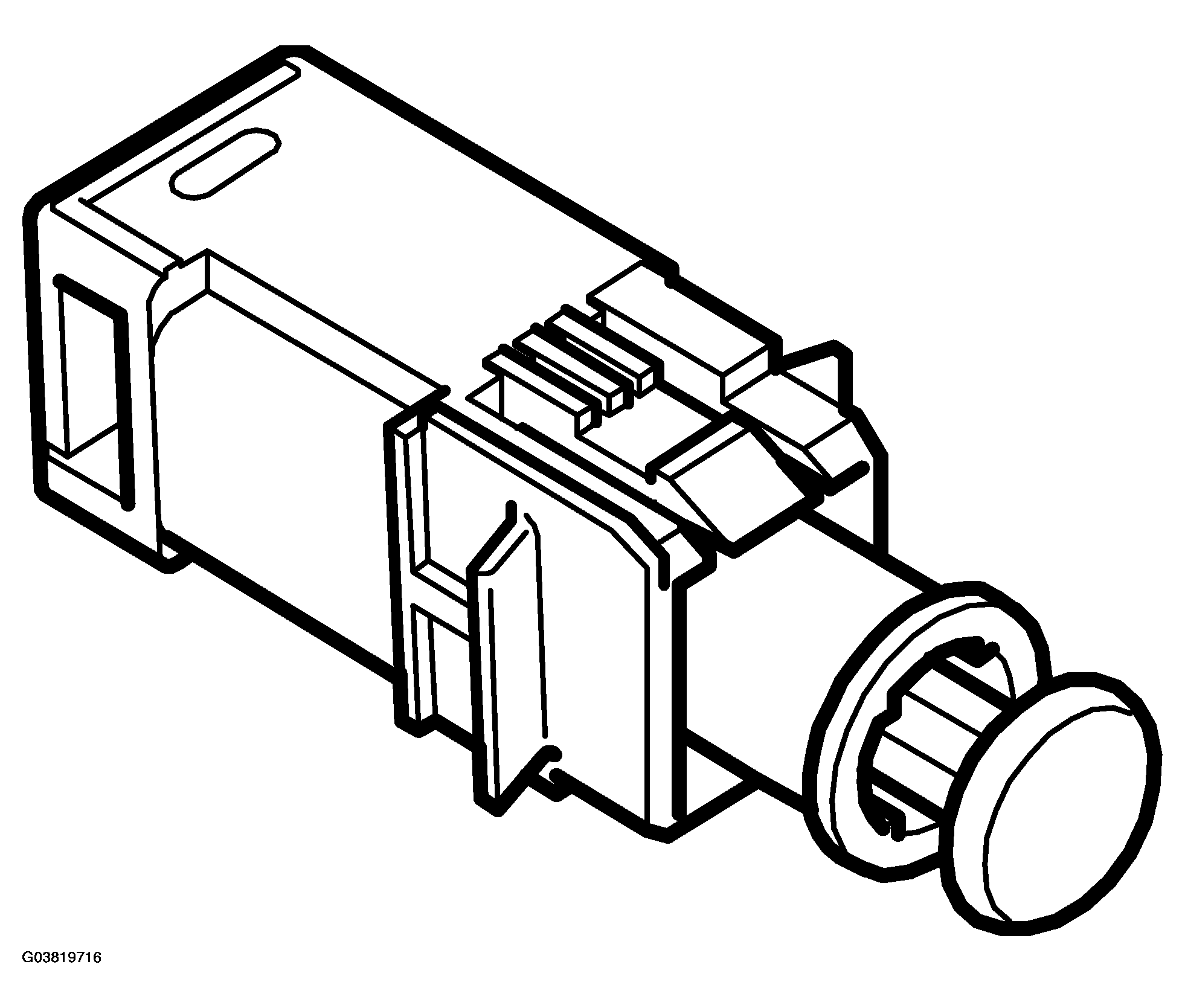

Fig 1: Identifying Connector, Clutch, Cruise Control
G03819716Courtesy of SAAB-SCANIA OF AMERICA, INC.
PIN SPECIFICATION

Characteristic, pin 1-2 Normally closed when the pedal is released
