Front delivery line, power steering.: Removal

  1. Cars without water separator  : Remove the grille.
  2. Cars without water separator  : Undo the air intake bolt and lift the air intake out from its mounting.
    Fig 1: Illustration For Step 2
    G03744872Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Raise the car.
  4. Remove the forward engine cover.

    Diesel  : Remove the lower engine cover.

  5. Remove the RH engine cover.
  6. 4 cyl. petrol  : Undo the 2 engine oil cooler bolts and let the cooler hang by its hoses.
    Fig 2: Illustration For Step 6
    G03744873Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Cars without water separator  : Loosen the clamp holding the air intake hose to the air filter housing and remove the air intake.
    Fig 3: Illustration For Step 7-10
    G03744874Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Undo the nuts which hold the cooling loop to the radiator mount.
  9. Remove the clamp from the front delivery line.
  10. Place a bowl under the car to collect the power steering fluid. Separate the front and rear delivery pipes at the joint.
  11. Lower the car.
  12. 4 cyl. petrol  : Undo the hose clip which retains the intake hose with the mass air flow sensor and bend the hose to one side.
    Fig 4: Illustration For Step 12
    G03744875Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. 4 cyl petrol  : Relieve the tension in the belt tensioner with tool 83 95 254 DRAWBAR HANDLE, HYDRAULIC BELT TENSIONER  . Rotate the power steering pump pulley to gain access to the bolt and detach the front delivery line bracket. Remove the pipe from the pump.
    Fig 5: Illustration For Step 13
    G03744876Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. 6 cyl. diesel  : Undo the bolt which retains the delivery line bracket. Undo the clamp band from the bracket and undo the banjo nipple.

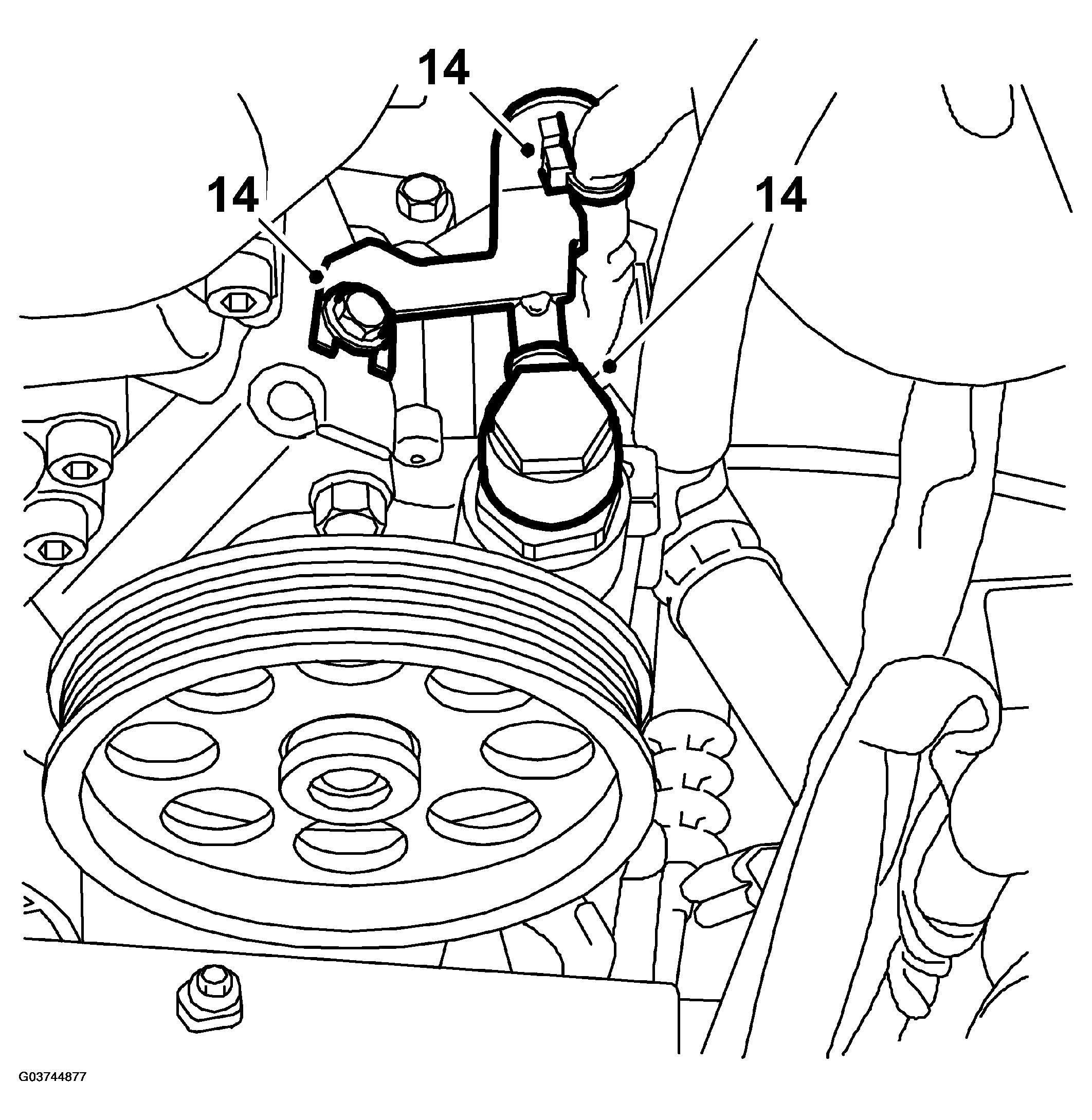

    Fig 6: Illustration For Step 14
    G03744877Courtesy of SAAB-SCANIA OF AMERICA, INC.
  15. 4 cyl. diesel  : Undo the banjo nipple on the delivery line from the power steering pump.
  16. Raise the car.
  17. Angle the cooling loop downward on the front delivery line so that all of the front delivery line can be removed.
    IMPORTANT: Scrupulous cleanliness must always be observed during all work with hydraulic components.
