To fit

Position the driven plate and the pressure plate on the flywheel and loosely tighten the bolts. Vehicles with dual mass flywheel: The convex side of the driven plate should face the gearbox.

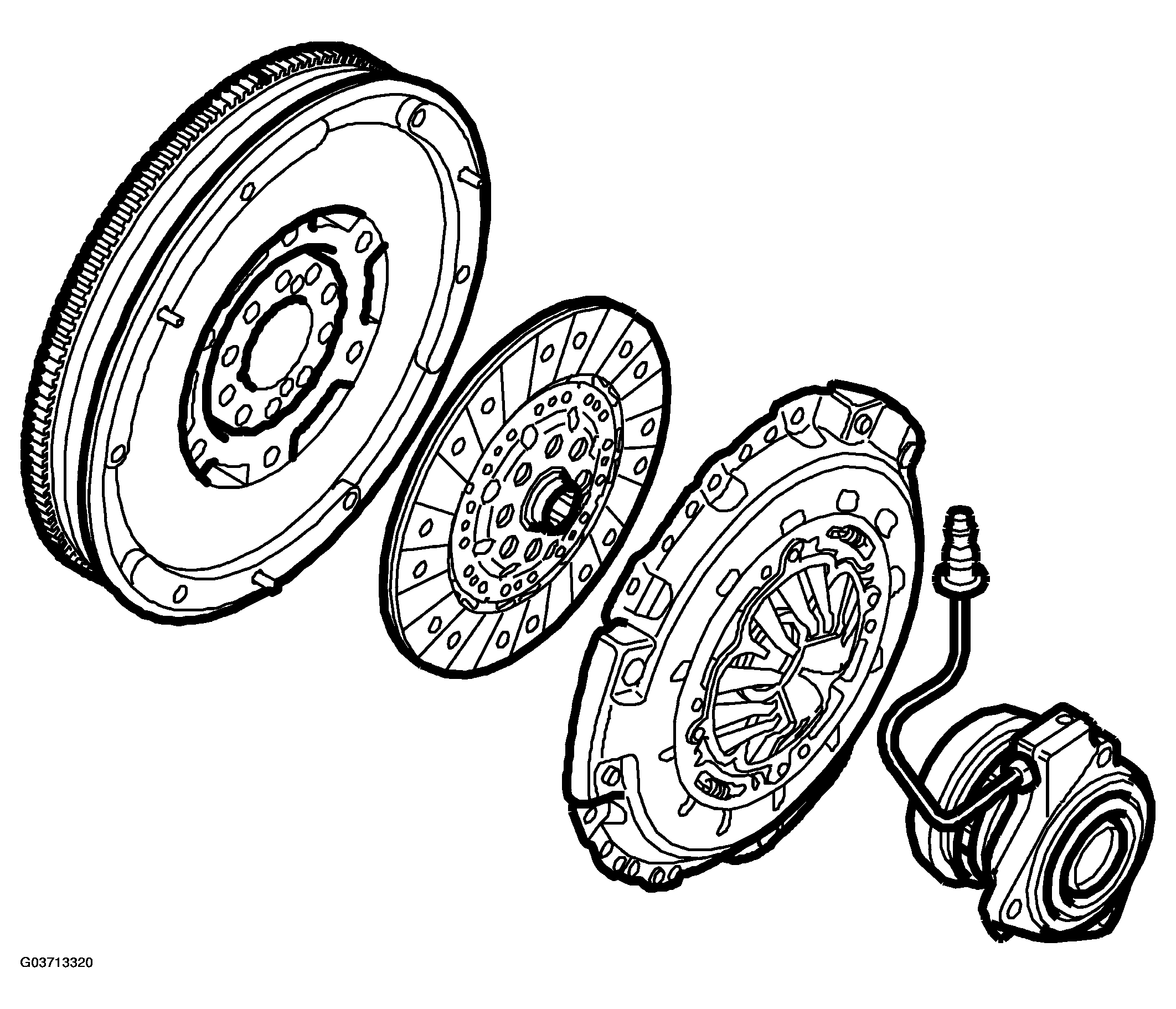

Fig 1: Identifying Pressure Plate
Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: Cars with self-adjusting pressure plate: Clutch plate and pressure plate are matched in pairs and must therefore be replaced as a pair.
Centre the driven plate with 83 95 964 MANDREL FOR CENTERING, CLUTCH PLATE, 4-CYL. DIESEL or 87 92 327 MANDREL FOR CENTERING, CLUTCH PLATE for B207, or 83 96 277 Mandrel for centering, 6-speed or 87 92 947 for Z18E, and tighten the bolts alternately. Apply 74 96 268 Threadlock to the threads.
Tightening torque 30 Nm (22 lbf ft)

Tightening torque, Z18XE/F17 15 Nm (11 lbf ft)

Fig 2: Illustration For Step 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the flywheel locking attachment.
Fit Gearbox assembly, 5-speed or Gearbox assembly, 6-speed or F17. Lubricate the primary shaft splines as specified in LIST OF LUBRICANTS AND SEALANTS .
