Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening Screw For Side Trim Panel 2/3 | Item 1 | Tightening Torque | 3.5 Nm (2.5 ft. lb.) | ||
|
Right Trim Panel On 2/3-Split Folding Seat |
|||||

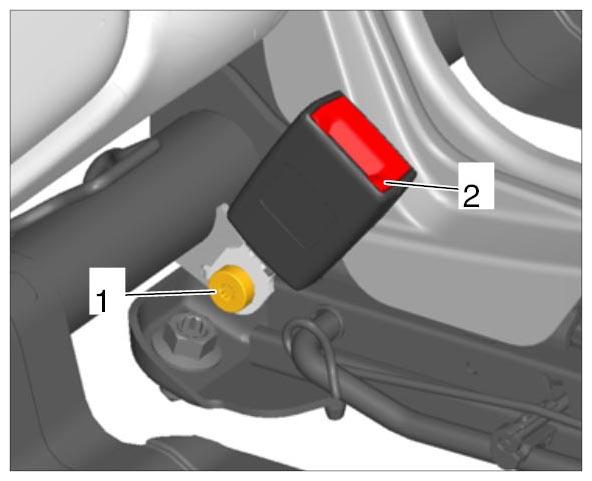

| Fastening Screw For Rear Left Seat-Belt Buckle | Tightening Torque | 50 Nm (37 ft. lb.) | |||
| Fastening Screw For Center Seat-Belt Buckle | Tightening Torque | 50 Nm (37 ft. lb.) | |||
|
Center Seat-Belt Buckle |
|||||
| Fastening Screw For Rear Right Seat-Belt Buckle | Tightening Torque | 50 Nm (37 ft. lb.) | |||
|
Rear Right Seat-Belt Buckle |
|||||
