Removing front level sensor

NOTE:

In running gear with level adjustment, a self-levelling sensor is installed on each spring strut.
Removal and installation is described for the right spring strut.
The self-levelling sensor is screwed to the bearing block and upper control arm.

Turn steering until access to the self-levelling sensor is achieved.

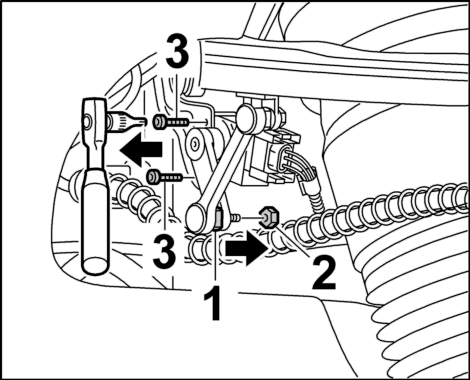

Fig 1: Removing front level sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Counter with an open-ended wrench on the two flats -1- and unscrew the fastening nuts -2- . See Fig 1.

2. Unscrew both fastening screws -3- . See Fig 1.

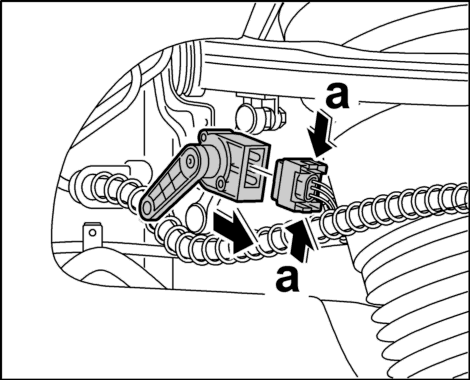

Fig 2: Disengaging lever from self-levelling sensor

Courtesy of PORSCHE OF NORTH AMERICA, INC.

3. Disengage lever from self-levelling sensor, swivel it forwards and remove the sensor.

4. Press the electric connector together -a- and pull it off. See Fig 2.
