Passenger's side

Connect the ignition device 9257 with the adapter cable 9566 to the passenger's airbag plug connection. Place the ignition device in front of the vehicle through the door gap.

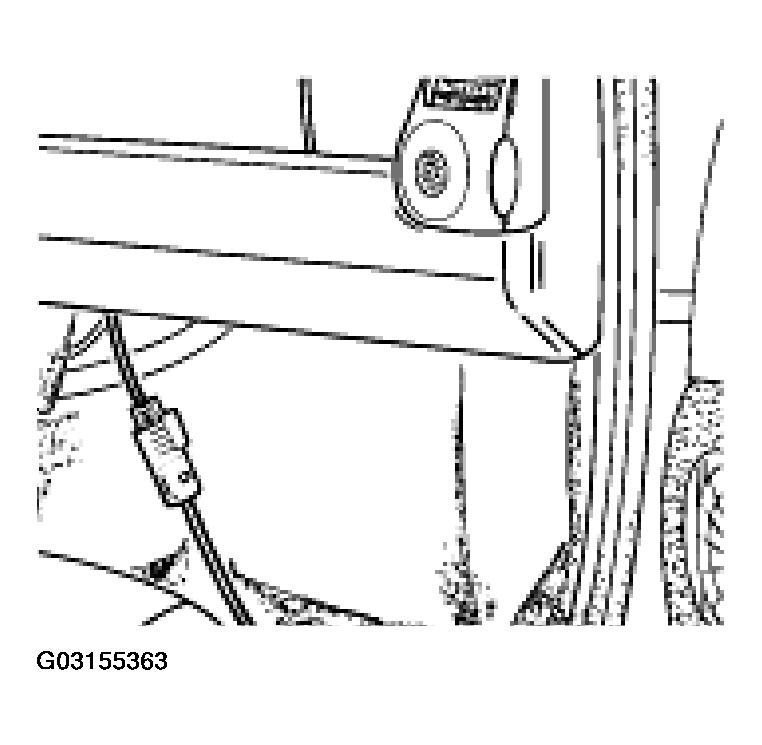

Fig 1: Connecting Ignition Tool (Passengers Side)
G03155363Courtesy of PORSCHE OF NORTH AMERICA, INC.
