Installing A-Pillar Trim

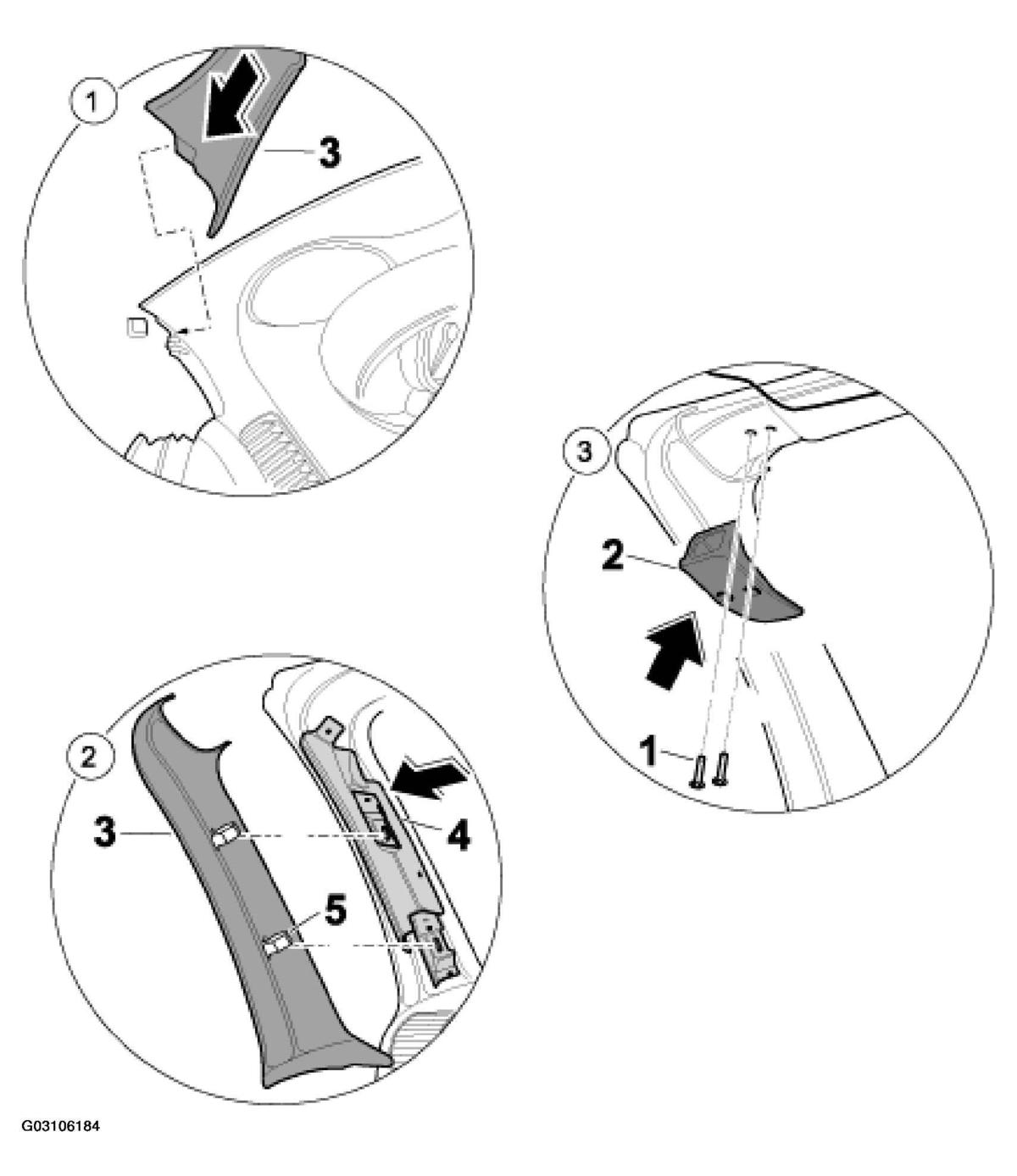

INSTALLING PROCEDURE FOR A-PILLAR TRIM
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1(1) | Installing A-pillar trim | Before installation, check that the deformation element is seated properly -4-5-3-direction of the arrow- (1) | ||
| 2(1) | Clipping in A-pillar trim | Clip in the A-pillar trim -3-direction of arrow- (1) | ||
| 3(1) | Install convertible-top peg housing | In order to avoid rattling noises, each of the convertible-top peg housings on the left and right -2-1- (1) | ||
|
||||
