I/P Fuse and Junction Blocks



Displays and Gages Component Views

I/P Fuse and Junction Blocks

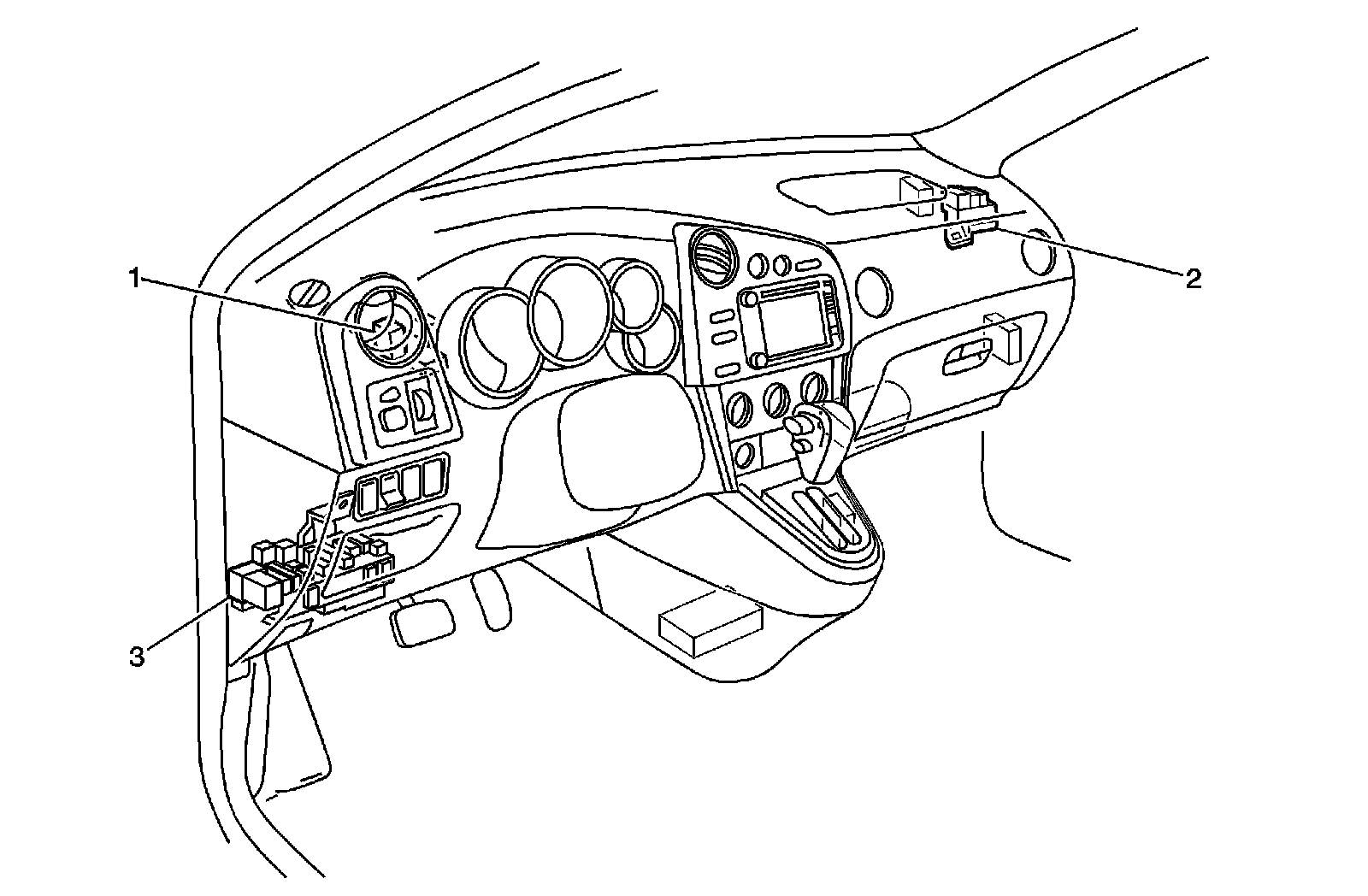

1 - LH I/P Junction Block
2 - RH I/P Junction Block
3 - LH I/P Fuse Block

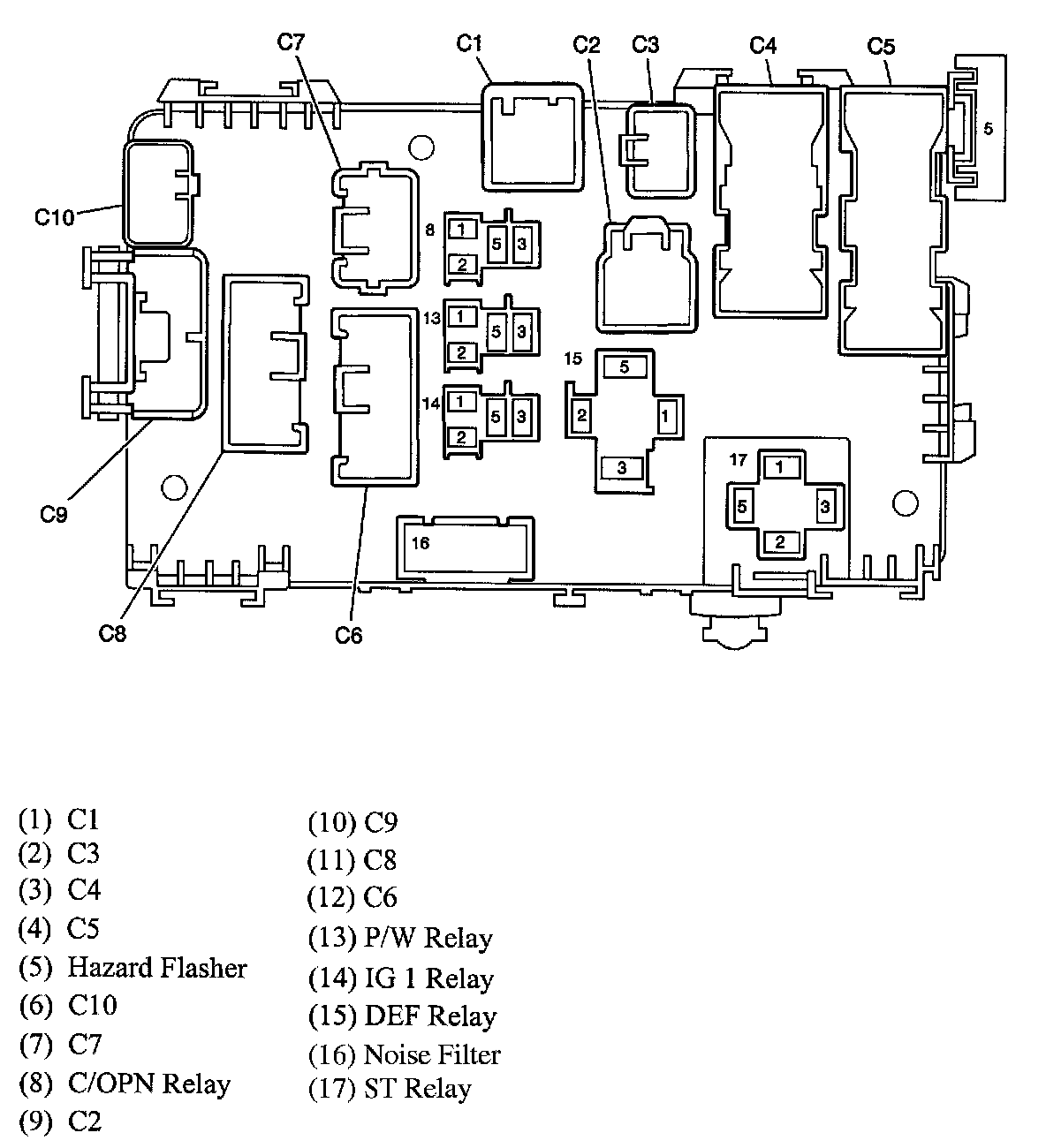

I/P Fuse Block (Bottom):

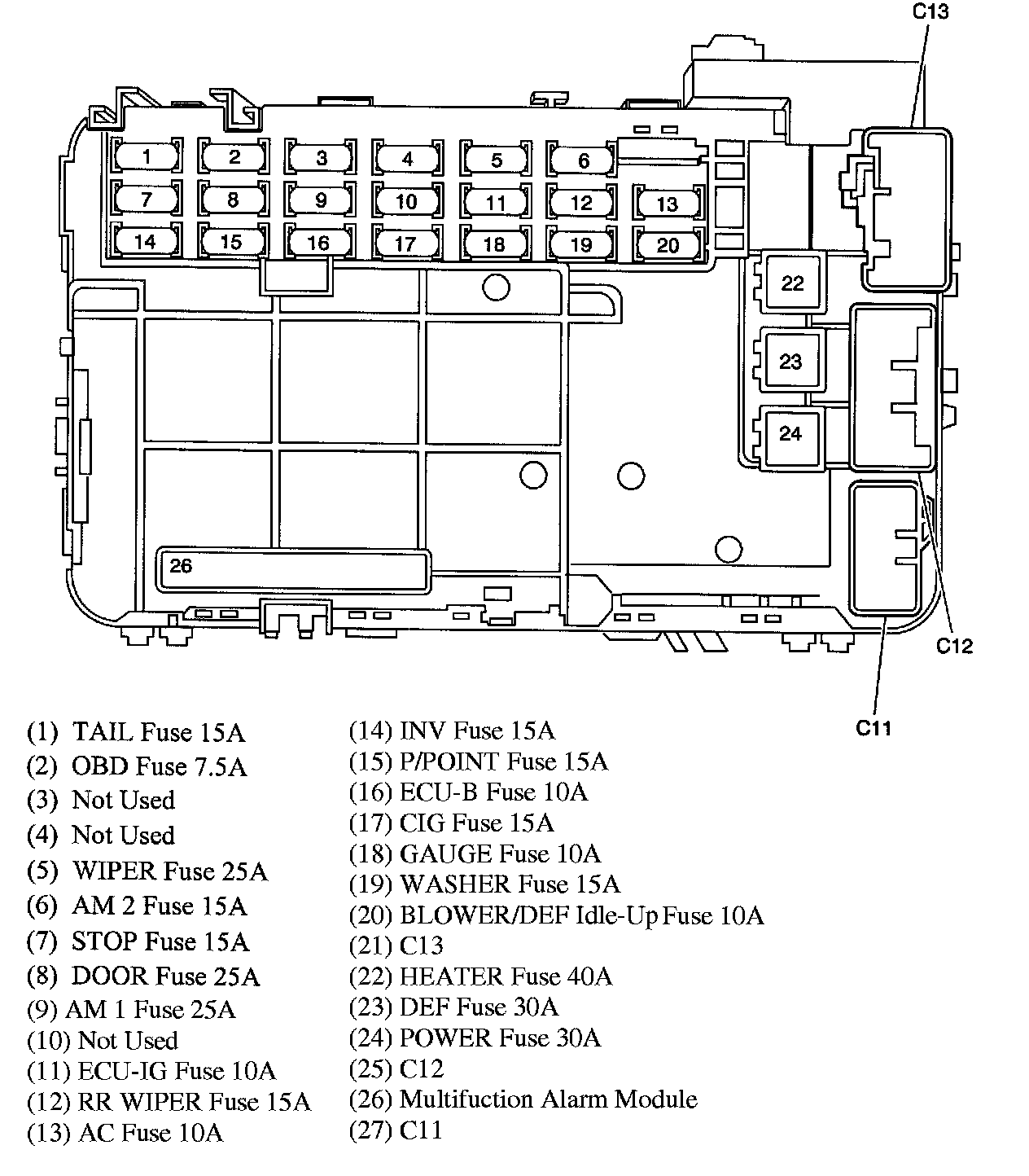

I/P Fuse Block (Top):
