Home >> Pontiac >> 2006 >> GTO V8-6.0L VIN U >> Repair and Diagnosis >> Diagrams >> Components

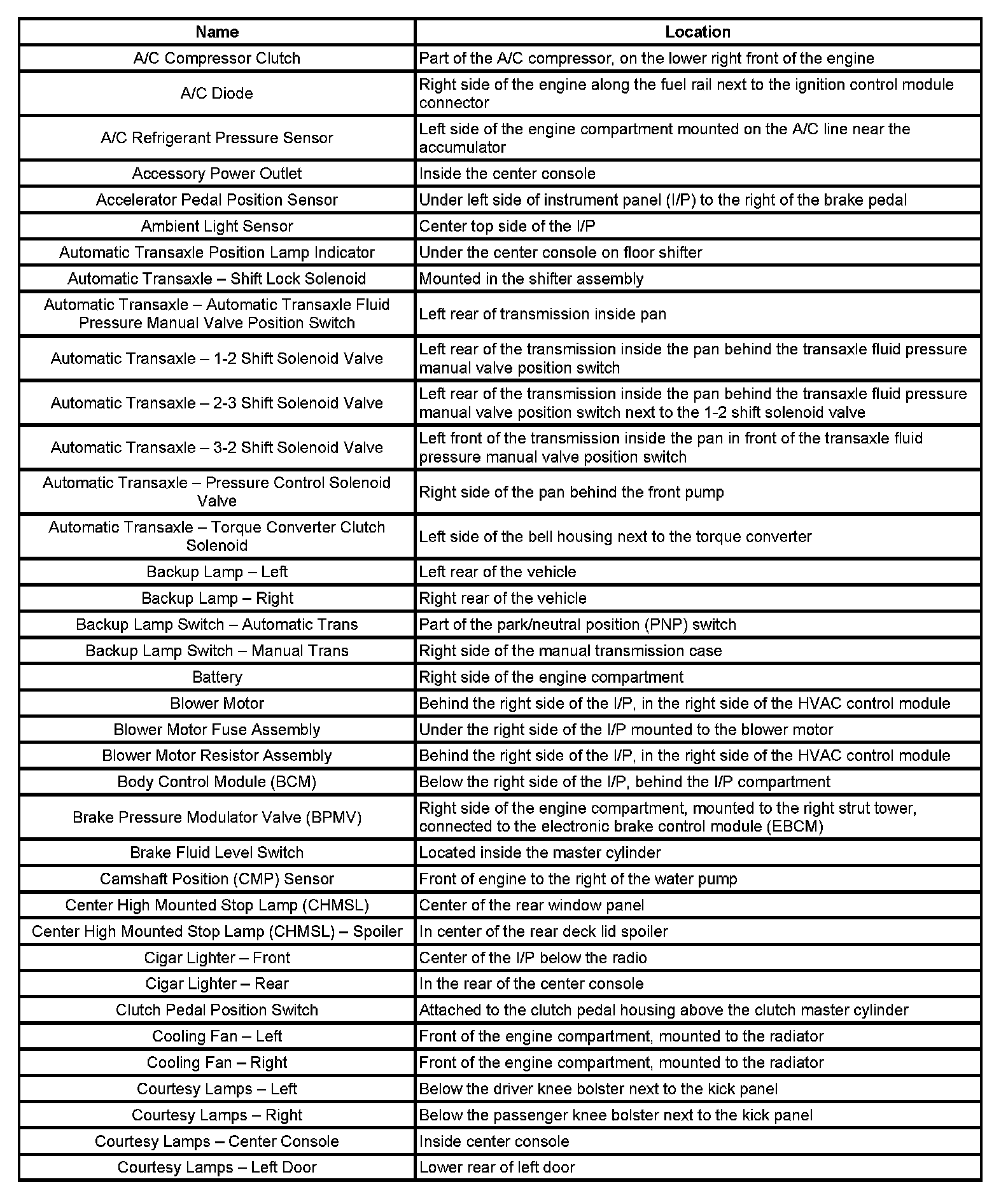

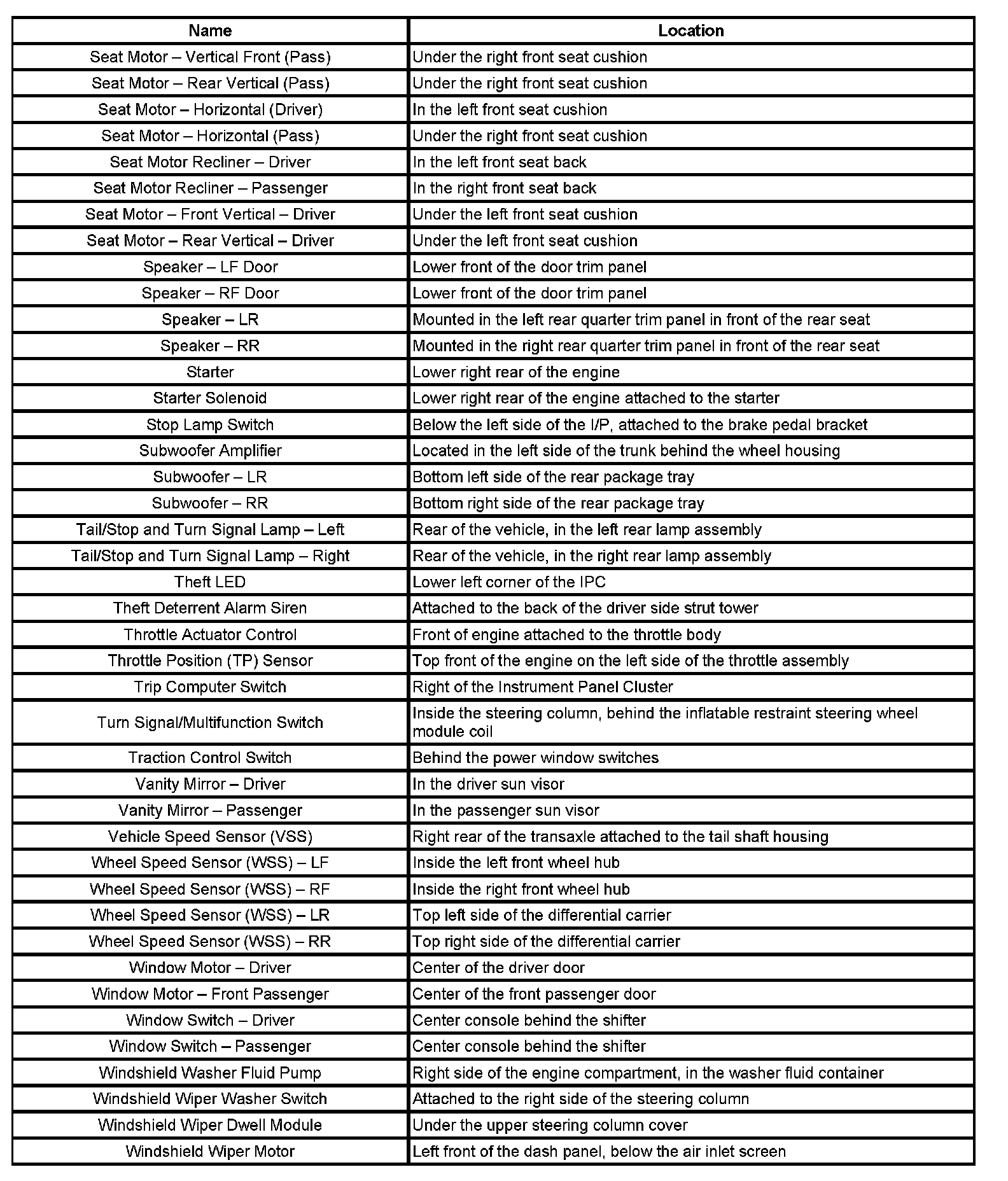

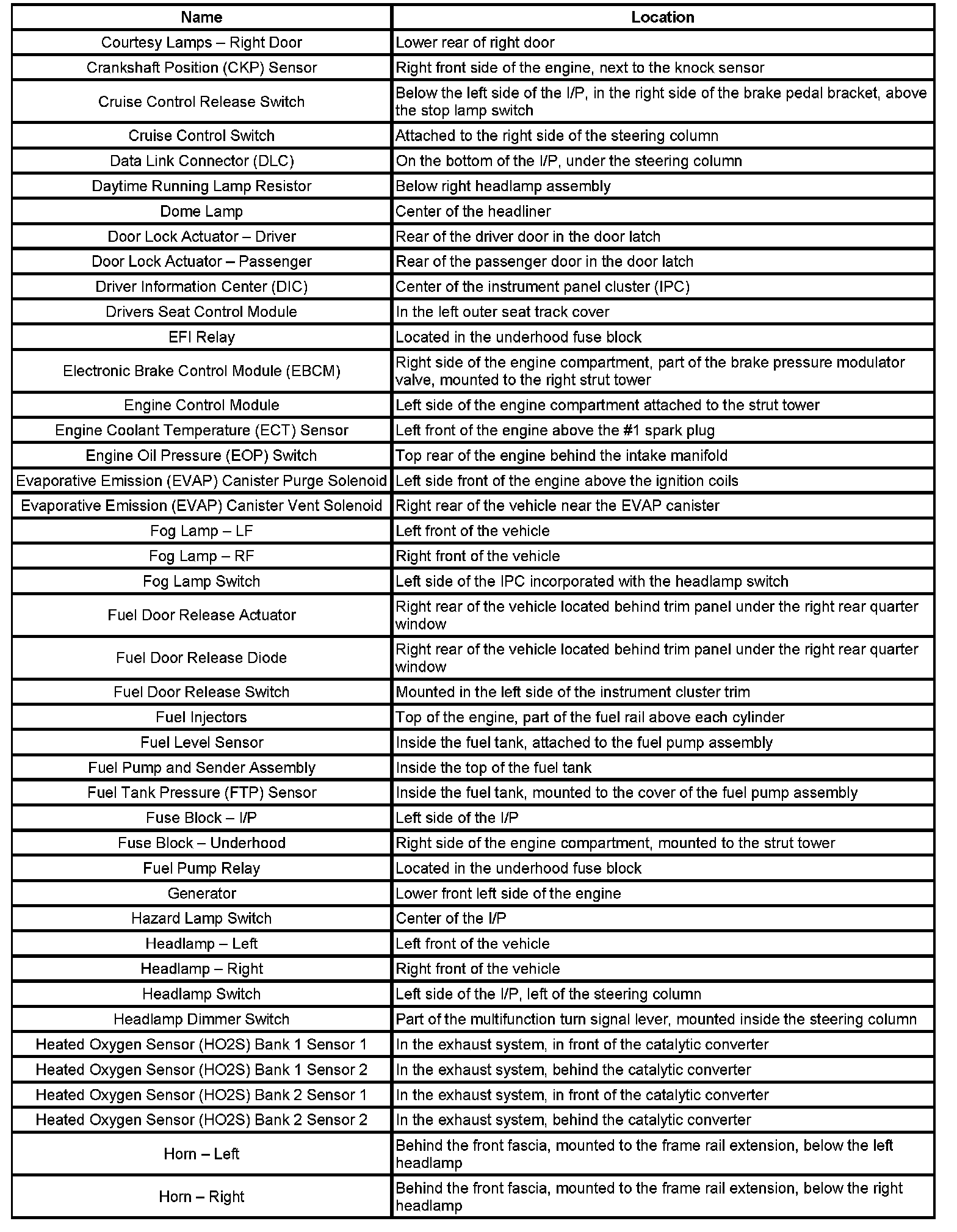

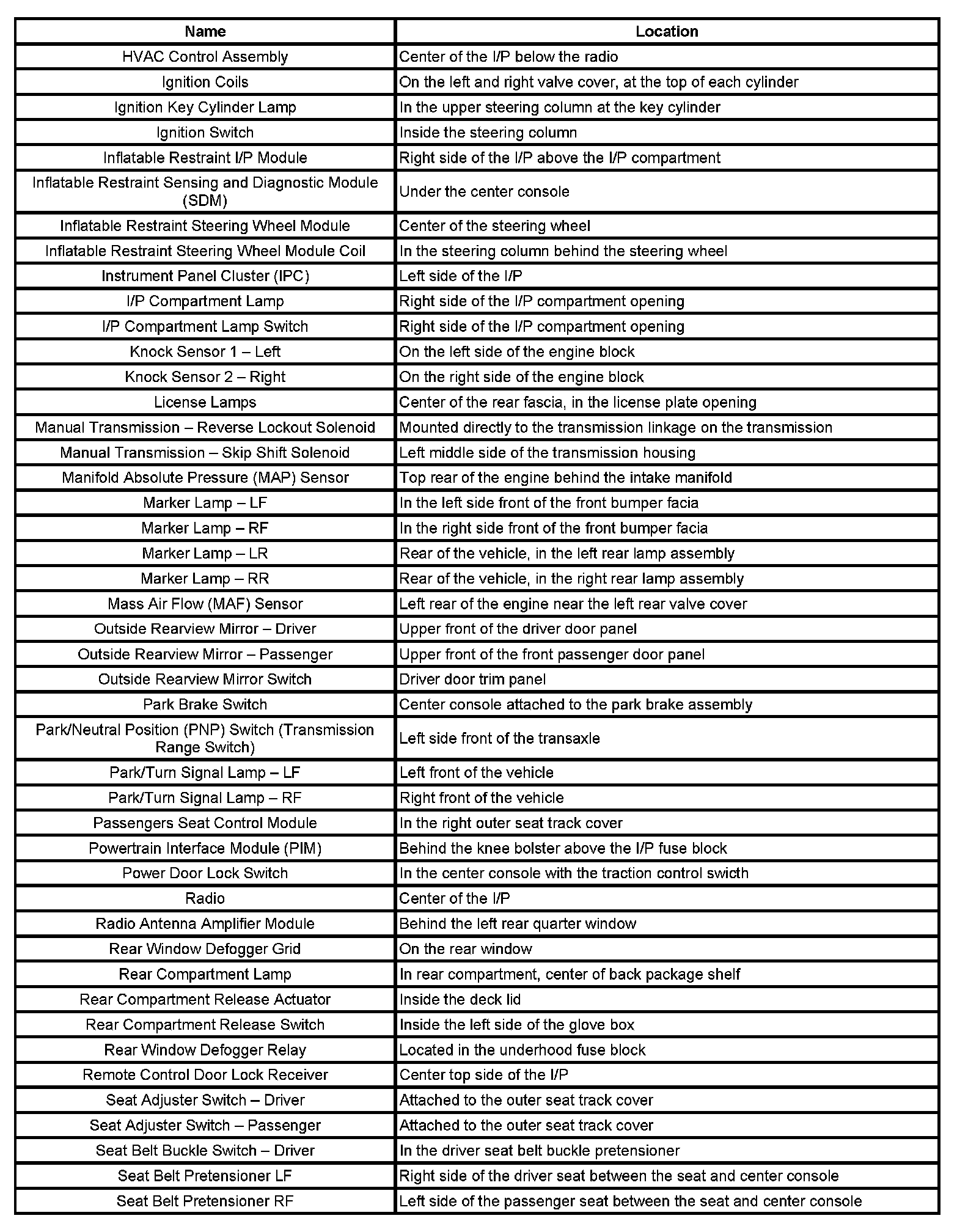

Components

A/C - Co:

Co - Ho:

HV - Se:

Se - Wi:
