Removal Procedure

  1. Ensure that the window is fully closed.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door (Chevrolet)  or Trim Panel Replacement - Side Rear Door (Pontiac) .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the window regulator. Refer to Window Regulator Replacement - Rear Door (Power Regulator)  or Window Regulator Replacement - Rear Door (Manual Regulator) .
  5. Lower the window to the bottom of the door.
  6. Remove the lower bolt (2).
  7. Lift the channel to disconnect the upper fastener.

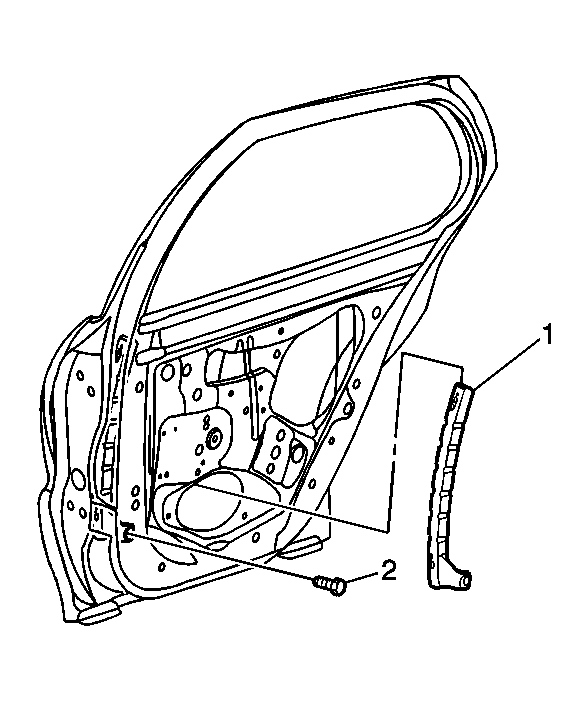

    Fig 1: Removing Window Channel Lower Bolt
    GM738932Courtesy of GENERAL MOTORS CORP.
  8. Remove the front window channel (1) from the door.
