Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

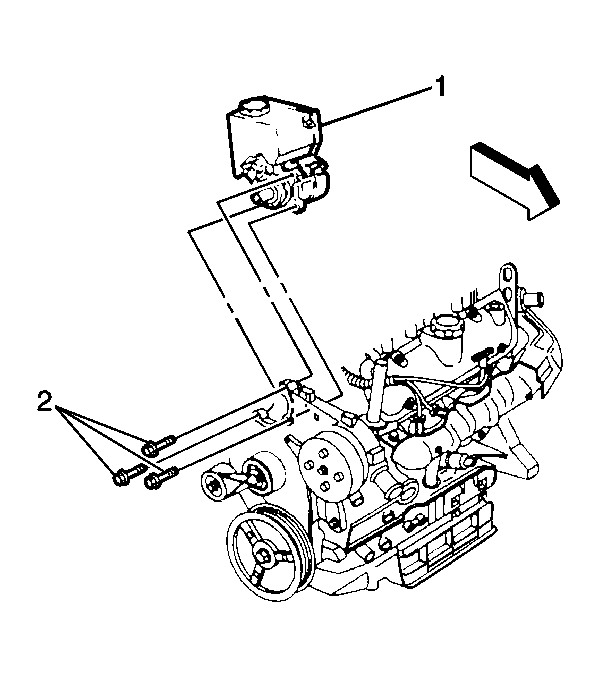

    Fig 1: View Of Power Steering Pump & Bolts (3.4L)
    GM441127Courtesy of GENERAL MOTORS CORP.
  1. Remove the upper engine mount. Refer to Engine Mount Replacement in Engine Mechanical - 3.4L.
  2. Remove the drive belt from the vehicle. Refer to Drive Belt Replacement in Engine Mechanical - 3.4L.
  3. Remove the power steering hoses from the pump (1). Refer to following procedures:
  4. Remove the power steering pump mounting bolts (2).
  5. Remove the power steering pump from the vehicle (1).
