Home >> Pontiac >> 2002 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> IGN Main Relay

IGN Main Relay

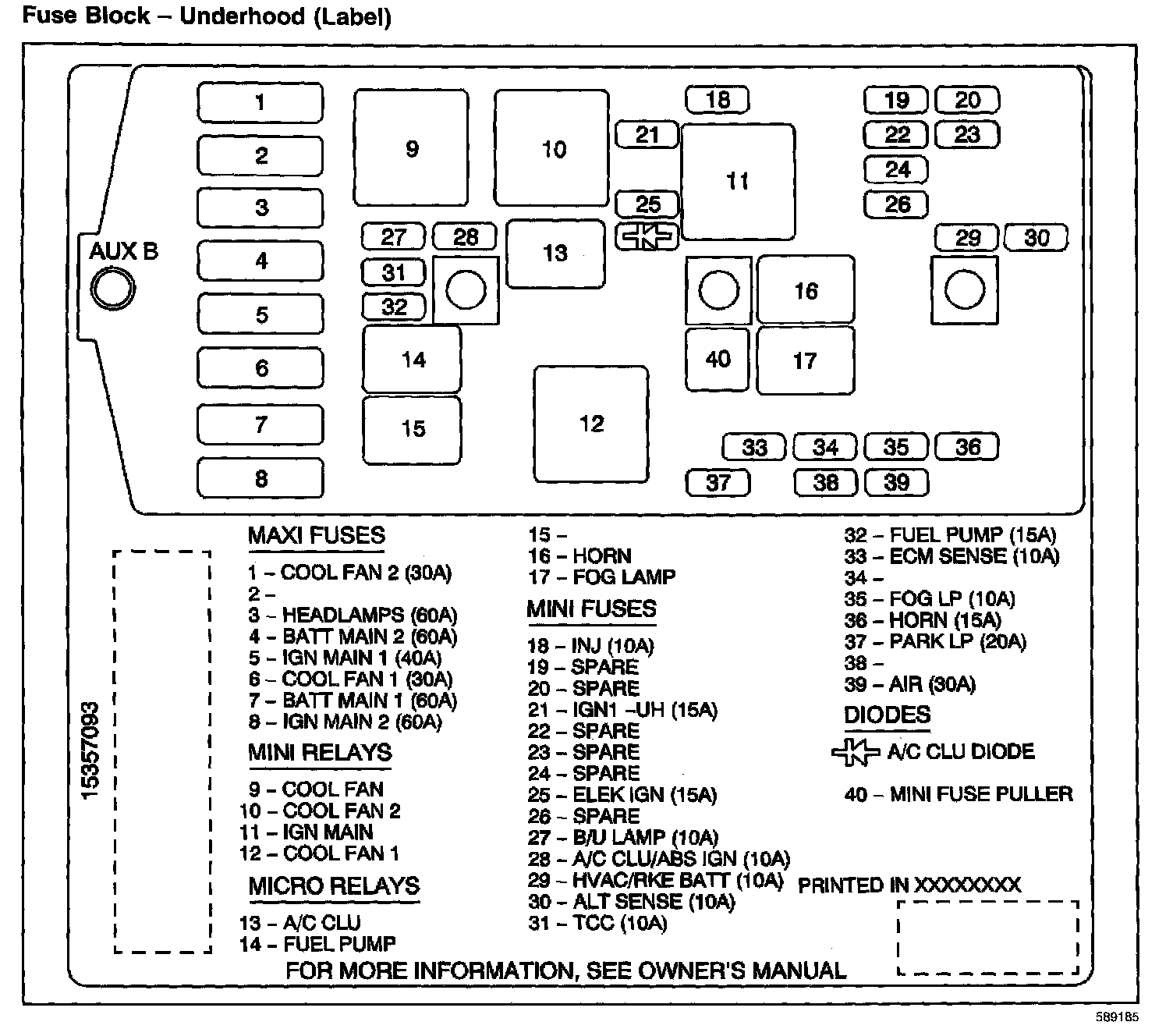

Fuse Block - Underhood (Label):
