Home >> Pontiac >> 1992 >> Grand AM V6-3300 3.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Trim Panel

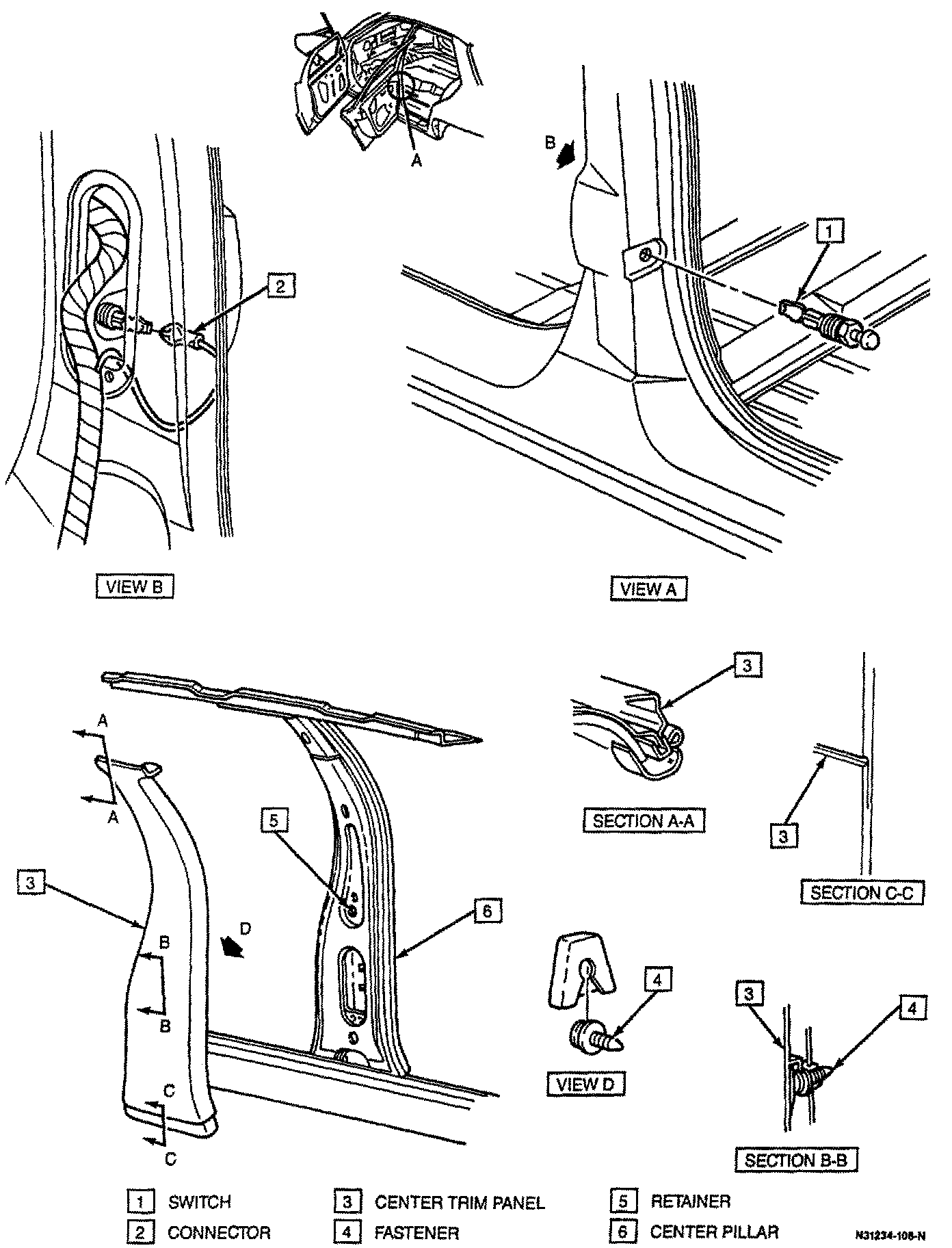

Trim Panel

Center Pillar:
