Physical Values

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

-

Signal name

Input/Output

5

(BG)

-

I-Key memory

-

-

-

6

(LG)

-

AV communication signal (L)

Input/Output

-

-

7

(P)

-

CAN-L

Input/Output

-

-

8

(G)

Ground

Parking brake signal

Input

[Ignition switch ON]

  • Parking brake is applied.

0 V

[Ignition switch ON]

  • Parking brake is released.

Battery voltage

9

(R)

Ground

Dimmer signal

Input

[Ignition switch ON]

  • Either of the following conditions
    • Lighting switch OFF
    • Expose the auto light optical sensor to light when the light switch is ON.

0 V

[Ignition switch ON]

  • Block the light beam from the auto light optical sensor when the light switch is ON.

12.0 V

10

(R)

Ground

Reverse signal

Input

[Ignition switch ON]

  • R position

12.0 V

[Ignition switch ON]

  • Other than R position

0 V

12

(B)

-

Ground

-

[Ignition switch ON]

0 V

18

(SB)

-

AV communication signal (H)

Input/Output

-

-

19

(L)

-

CAN-H

Input/Output

-

-

20

(LG)

Ground

Ignition signal

Input

[Ignition switch ON]

Battery voltage

21

(GR)

Ground

Vehicle speed signal (8-pulse)

Input

[Ignition switch ON]

  • When vehicle speed is approx. 40 km/h G(25 MPH)
NOTE: The maximum voltage varies depending on the specification (destination unit).
GNSJSNIA0012GB-012Courtesy of NISSAN NORTH AMERICA, INC.

23

(P)

Ground

ACC power supply

Input

[Ignition switch ACC]

Battery voltage

24

(L)

Ground

Battery power supply

Input

[Ignition switch OFF]

Battery voltage

26

(W)

-

Composite image signal (-)

-

-

-

28

(Shield)

-

Rear camera shield

-

-

-

30

(Shield)

-

Shield

-

-

-

32

(B)

-

Sound signal RH (-)

-

-

-

33

(Shield)

-

Sound signal LH shield

-

-

-

34

(W)

-

Sound signal LH (-)

-

-

-

35

(W)

-

TEL voice signal (-)

-

-

-

36

(Shield)

-

Voice guidance shield

-

-

-

37

(W)

-

Voice guidance signal output (-)

-

-

-

38 1

(W)

-

Voice guidance signal input (-)

-

-

-

39

(BG)

-

NS ON/OFF signal

-

-

-

40 1

(W)

Ground

Microphone signal ground

-

[Ignition switch ON]

0 V

41 1

(Shield)

-

Microphone signal ground shield

-

-

-

42 2

(Shield)

Ground

Microphone ground shield

-

[Ignition switch ON]

0 V

44

(B)

Ground

Camera power supply ground

-

[Ignition switch ON]

0 V

45

(Shield)

-

Composite image shield

-

-

-

46

(B)

26

(W)

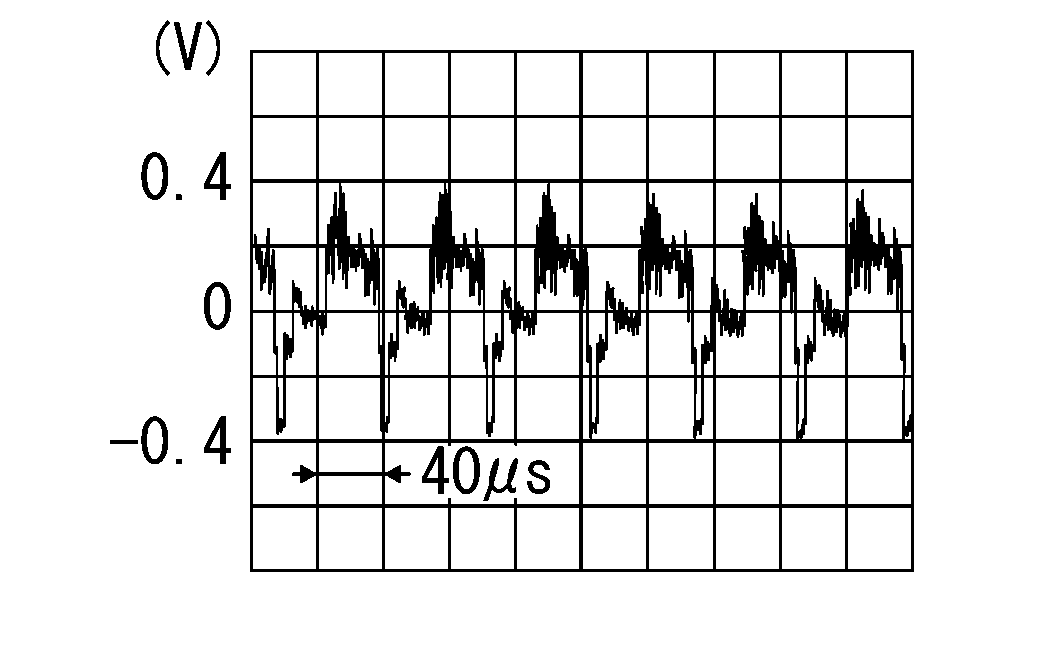

Composite image signal (+)

Input

[Ignition switch ON]

  • Image is displayed.
G00498910Courtesy of NISSAN NORTH AMERICA, INC.

48

(W) 3

(B) 4

Ground

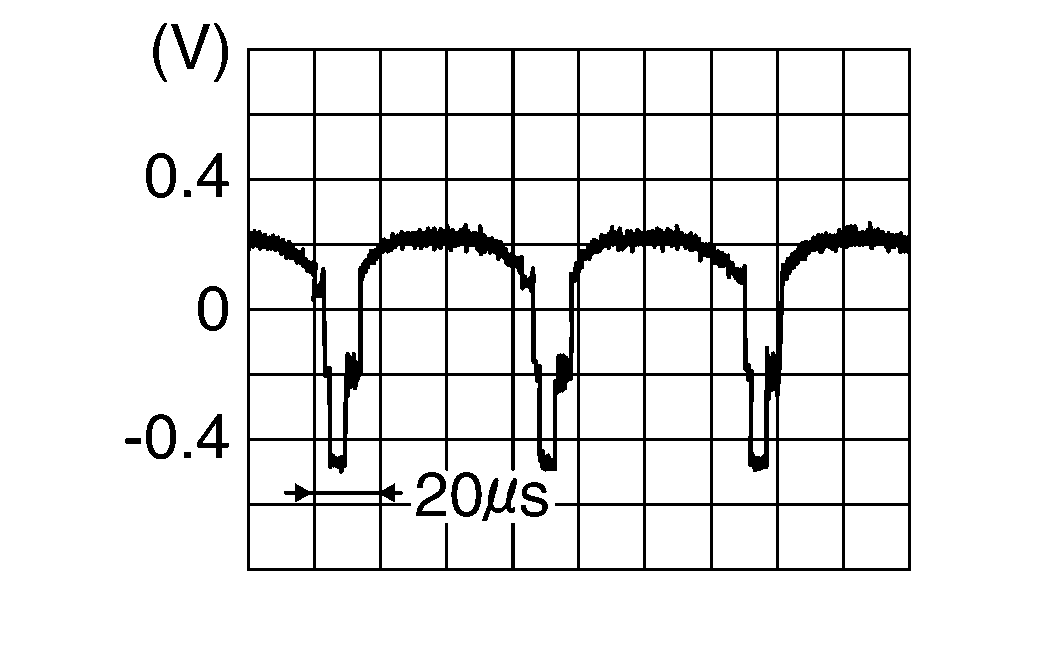

Camera image signal

Input

[Ignition switch ON]

  • Image is displayed.
GNSSKIB0827E-827Courtesy of NISSAN NORTH AMERICA, INC.

50

(B)

-

Sound signal (-)

-

-

-

51

(W)

50

(B)

Sound signal (+)

Input

[Ignition switch ON]

  • Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.

52

(W)

32

(B)

Sound signal RH (+)

Output

[Ignition switch ON]

  • Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.

53

(Shield)

-

Sound signal RH shield

-

-

-

54

(B)

34

(W)

Sound signal LH (+)

Output

[Ignition switch ON]

  • Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.

55

(B)

35

(W)

TEL voice signal (+)

Input

[Ignition switch ON]

  • During voice guide output with the SYMBOLSYMBOL switch pressed
G04084885Courtesy of NISSAN NORTH AMERICA, INC.

56

(Shield)

-

TEL voice shield

-

-

-

57

(B)

37

(W)

Voice guidance signal output (+)

Output

[Ignition switch ON]

  • Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.

58 1

(B)

38 1

(W)

Voice guidance signal input (+)

Input

[Ignition switch ON]

  • Sound output
G04084885Courtesy of NISSAN NORTH AMERICA, INC.

59 1

(Shield)

-

Voice guidance shield

-

-

-

60 1

(B)

40 1

(W)

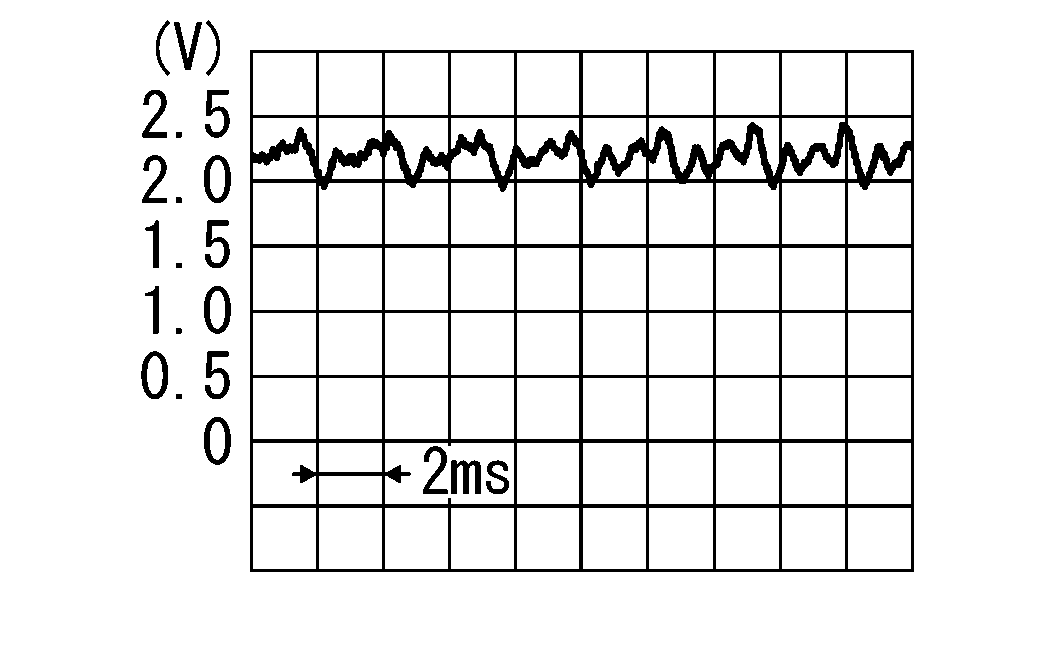

Microphone out signal

Output

[Ignition switch ON]

  • Give a voice
G04124472Courtesy of NISSAN NORTH AMERICA, INC.

61 2

(B)

42

(Shield)

Microphone in signal

Output

[Ignition switch ON]

  • Give a voice
G04124472Courtesy of NISSAN NORTH AMERICA, INC.

62 2

(B)

Ground

Microphone VCC

Output

[Ignition switch ON]

5.0 V

64

(R)

44

(B)

Camera power supply

Output

[Ignition switch ON]

  • At rear view camera image is displayed

6.0 V

65

(W)

-

USB V BUS signal

Output

-

-

66

(G)

-

USB ground

-

-

-

67

(L)

-

USB D+ signal

Input/Output

-

-

68

(R)

-

USB D- signal

Input/Output

-

-

69

(Shield)

-

USB shield

-

-

-

72 1

(W)

73 1

(B)

LVDS (+)

Input/Output

-

-

73 1

(B)

-

LVDS (+)

Input/Output

-

-

74 1

(Shield)

-

LVDS shield

-

-

-

75 1

(G)

-

USB ground

-

-

-

76 1

(W)

-

USB V BUS signal

Output

-

-

77 1

(R)

-

USB D- signal

Input/Output

-

-

78 1

(L)

-

USB D+ signal

Input/Output

-

-

79 1

(Shield)

-

USB shield

-

-

-

80

(G)

-

USB ground

-

-

-

81

(W)

-

USB V BUS signal

Output

-

-

82

(R)

-

USB D- signal

Input/Output

-

-

83

(L)

-

USB D+ signal

Input/Output

-

-

84

(Shield)

-

USB shield

-

-

-

85

(B)

-

USB V BUS signal

Output

-

-

87

(G)

-

USB D+ signal

Input/Output

-

-

88

(W)

-

USB D- signal

Input/Output

-

-

89

(R)

-

USB ground

-

-

-

90

(Shield)

-

USB shield

-

-

-

1 : With NAVI

2 : Without Telematics system

3 : With rear view monitor system

4 : With intelligent around view monitor system
