Removal and Installation: Notes

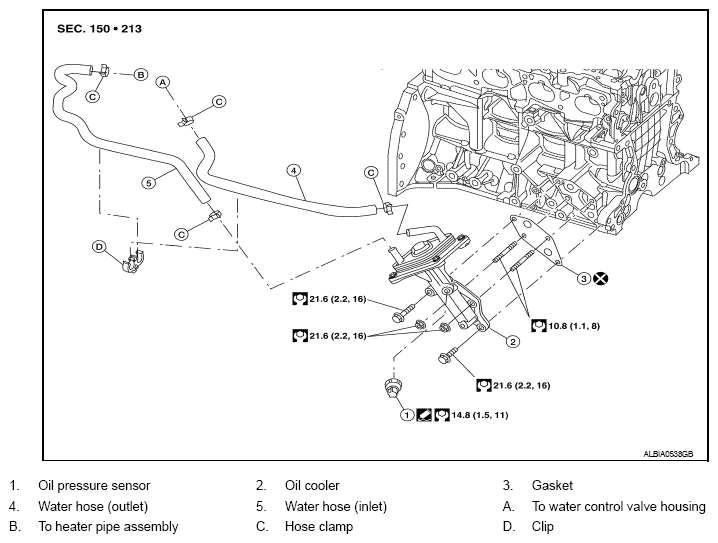

Fig 1: Exploded View Of Oil Cooler Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

WARNING: Be careful not to get burned, engine coolant and engine oil may be hot.

CAUTION:

When removing oil cooler, prepare a shop cloth to absorb any engine oil leakage or spillage.
Completely wipe off any engine oil that contacts the engine and the vehicle.

NOTE: When removing components such as hoses, or tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
